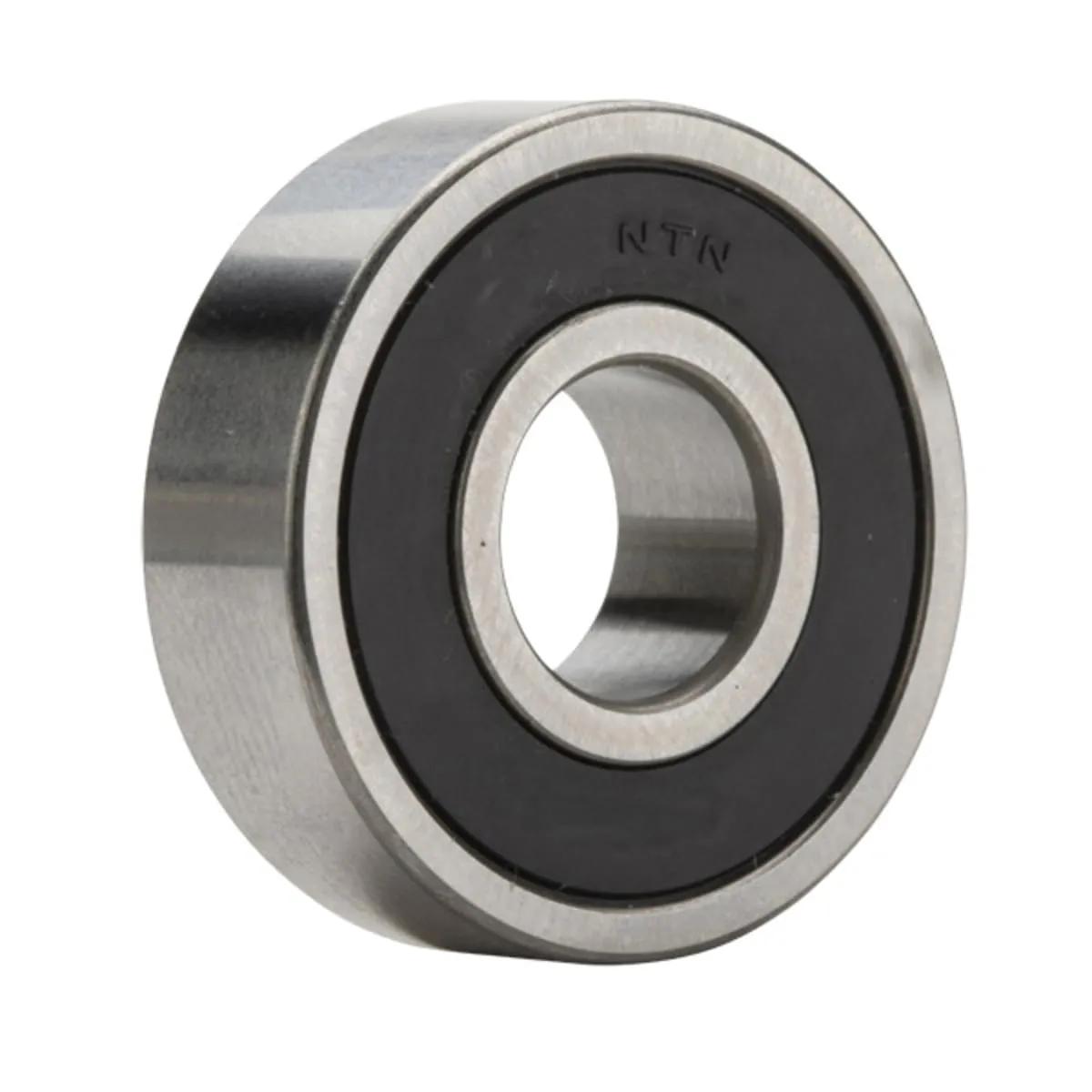

NTN 6216LLB01 Single Row Deep Groove Radial Ball Bearing, 80 mm Bore x 140 mm OD x 26 mm W, Double Seal, Pressed Steel Cage
- MFR #:6216LLBC3/EM
- EIS #:6216LLB01
- Series #:6216
- UPC #:04547359569582
- MFR #:6216LLBC3/EM
- EIS #:6216LLB01
- Series #:6216
- UPC #:04547359569582
In Stock | Ready to Ship
Min Qty:1
|Qty Increment:1
NTN 6200 single row deep groove radial ball bearing.
NTN 6200 Single Row deep groove radial ball bearing, pressed steel cage material, 1 row, steel rolling element, temperature rating: -40 to 120 deg c.
$154.60 / each
Min Qty:1
|Qty Increment:1
NTN 6200 single row deep groove radial ball bearing.
NTN 6200 Single Row deep groove radial ball bearing, pressed steel cage material, 1 row, steel rolling element, temperature rating: -40 to 120 deg c.
- Attributes
- Features
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing
Trade NameNTN
Series6216
General Features
TypeRound Bore
Net Weight3.064 lb
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeDouble Non-Contact Seal
Rolling Element MaterialSteel
Seal MaterialNitrile Butadiene Rubber
Performance Details
Dynamic Load Capacity72500 N
Static Load Capacity53000 N
Physical Properties
Bore Diameter80 mm
Clearance Diameter3
Fillet Radius2 mm
Number of Rows1
Outside Diameter140 mm
Width26 mm
Features
- Temperature Rating: -40 to 120 °C
- Clearance: C3
- Speed Rating: 4500 rpm Limiting (Grease)
