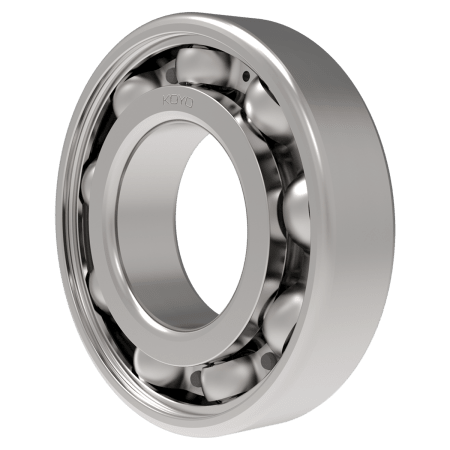

JTEKT Bearings 6224C3 - Open Type, 120 mm ID, 215 mm OD, 40 mm Width,, C3 Internal Clearance
MFR #:6224C3
EIS #:6224C308
UPC #:605790069697
MFR #:6224C3
EIS #:6224C308
UPC #:605790069697
Low Stock
Min Qty:1
|Qty Increment:1
6224C3 - Deep Groove Ball Bearing, Deep Groove Ball Bearings
$278.38 / Piece
Min Qty:1
|Qty Increment:1
6224C3 - Deep Groove Ball Bearing, Deep Groove Ball Bearings
- Attributes
- Features
Attributes
General Information
Item NameDeep Groove Ball Bearings
Series6200
General Features
Net Weight11.616 lb
Design & Construction
Bore TypeRound
Cage MaterialSteel
Cage TypeRiveted
Closure TypeOpen
Lubrication TypeRust Preventative
MaterialSteel
Rolling ElementBall
Rolling Element MaterialHigh Carbon Chromium Bearing Steel
Row TypeSingle row
Performance Details
Dynamic Load Capacity194 kn
Operating Temperature-30 to 120 °C
Precision ClassClass 0
Self AligningNo
Speed Rating2900 rpm (Grease) | 3400 rpm (Oil)
Static Load Capacity131 kn
Physical Properties
Bore Diameter120 mm
Fillet Radius0.0787 Inch
Outside Diameter215 mm
Overall Width40 mm
Radial Internal ClearanceC3
Features
- Best used for moderate radial and low axial load applications
- Made from premium high carbon, high chromium Japanese steel
- Available with steel (no callout) or brass (FY) cage
- Available with seals (2RD, 2RS, 2RU), shields (ZZ), open and/or with a snap ring (NR) options
- All double sealed and double shielded product come with Polyrex XM Grease
- The 2RD Seal is used for high speed and/or reduced drag applications in addition to applications that require maximum sealing ability
- Available in miniature (EE) inch product
- Available with cermamic balls (3NCH or 3NC in prefix)
- Available in max capacity/special heat treat (RSH2 in suffix)
