NTN BEARING OF AMERICA
NTN BEARING OF AMERICA

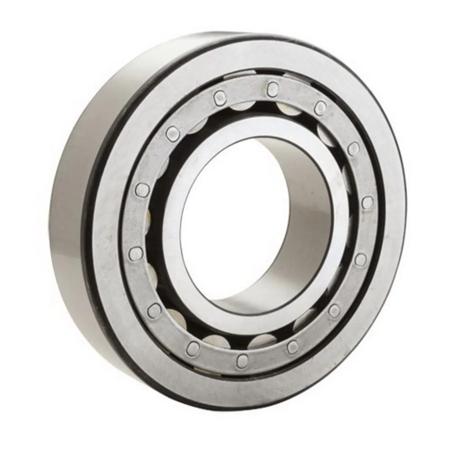

NTN NJ3 Series Single Row Cylindrical Roller Bearing, 130 mm Bore x 280 mm OD x 58 mm W, High Strength Machined Brass Cage

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:NJ326C4

EIS #:NJ326C401

Series #:nj326

UPC #:04547359124262

MFR #:NJ326C4

EIS #:NJ326C401

Series #:nj326

UPC #:04547359124262

Out of Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
NTN BEARING OF AMERICA
NTN BEARING OF AMERICA
NTN NJ3 Series single row cylindrical roller bearing. NTN NJ3 series cylindrical roller bearings have rollers that provide a modified line contact with the cylindrical inner and outer ring raceways, while the rollers are guided by ground ribs on either the inner or outer ring. The cylindrical shape allows the inner ring to have axial movement relative to the outer ring. This is especially important when accommodating thermal expansion, where both rings must be press-fitted.
$1,816.35 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
NTN BEARING OF AMERICA
NTN BEARING OF AMERICA
NTN NJ3 Series single row cylindrical roller bearing. NTN NJ3 series cylindrical roller bearings have rollers that provide a modified line contact with the cylindrical inner and outer ring raceways, while the rollers are guided by ground ribs on either the inner or outer ring. The cylindrical shape allows the inner ring to have axial movement relative to the outer ring. This is especially important when accommodating thermal expansion, where both rings must be press-fitted.

Attributes

General Information
Item NameCylindrical Roller Bearing
Trade NameNTN
SeriesNJ326
General Features
TypeRound Bore, Open
Net Weight38.801 lb
Design & Construction
Bore TypeRound
Cage MaterialHigh Strength Machined Brass Rivetless With Square Holes
Rolling Element MaterialHardened Alloy Steel
Performance Details
Dynamic Load Capacity560000 N
Static Load Capacity665000 N
Tolerance ClassISO Class 0 (RBEC 1)
Physical Properties
Bore Diameter130 mm
Clearance Diameter4
Fillet Radius3 mm
Inner Ring Outside Diameter182 mm
Number of Rows1
Outer Ring Inside Diameter180.5 mm
Outside Diameter280 mm
Radial Internal Clearance4 mm
Width58 mm
