Menda Tools 35135 Circuitracer® Continuity Tester, 0 - 50 ohm
- MFR #35135
- EIS #35135-MEN
$91.34 / Piece
Pack: Each
Available to Order
Min QTY1QTY Increment1
more info
PackEach

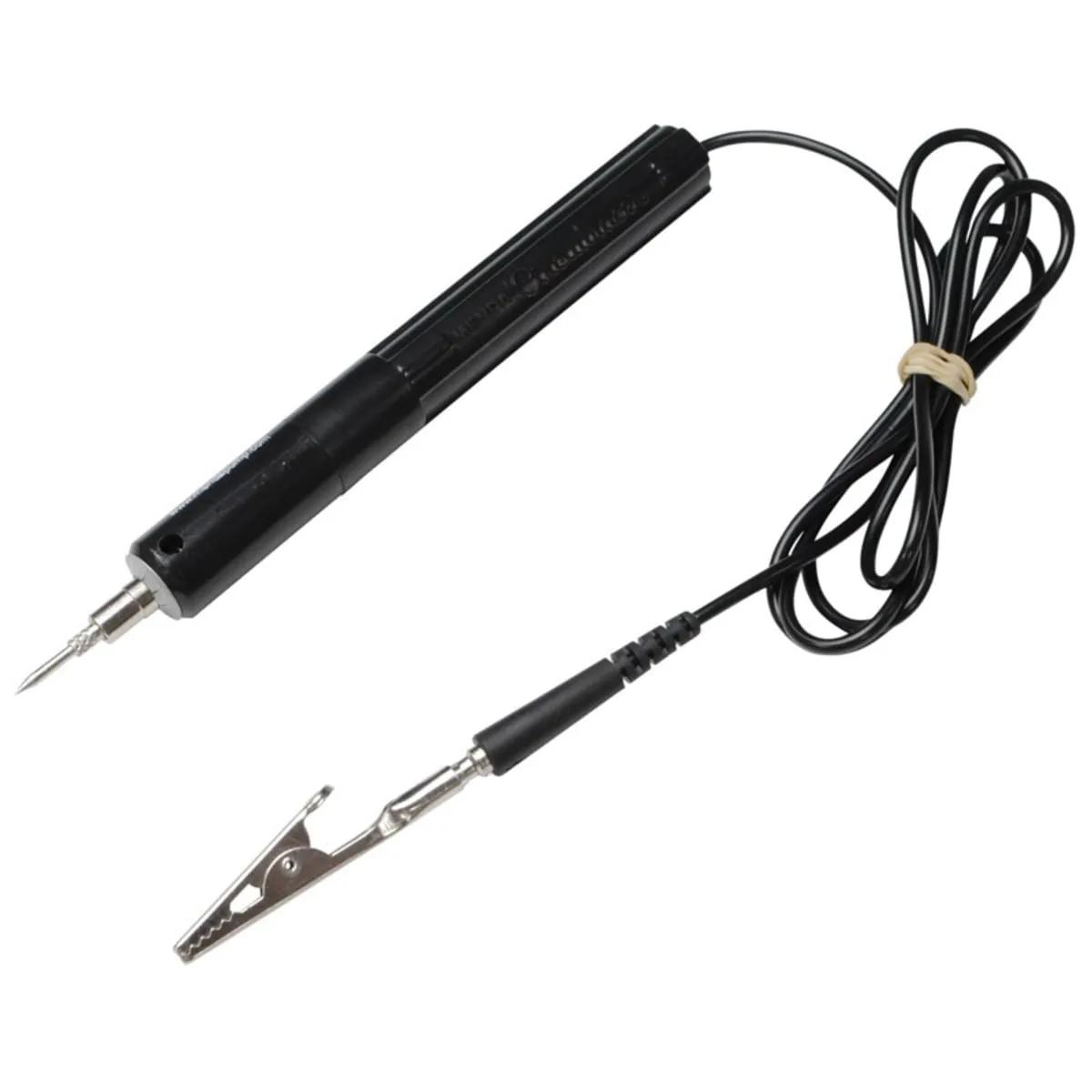

The model 35135 is an audible version of the model 35100 Circuitracer designed for measuring continuity. The 35135 emits a strong (70 dB at 20 cm) audible signal when a complete circuit of less than 50 ohm resistance is between the clip and probe. The probe lead accepts a tip with a #10-32 thread. - This audible Circuitracer comes equipped with 3 ft of lead wire, a probe tip in the nose, alligator in the lead and two AAA batteries.
Features
- Strong audible 2 kHz tone - easy to confirm electrical circuit continuity, even in bright environments
- New design now provides greater flexibility by having two different terminations (banana plug or alligator clip)
- The added strain relief on the narrow end (where the wire enters) provides more durability
General Information
| Item Name | Continuity Tester |
| Trade Name | Circuitracer® |
Design & Construction
| Case Material | Butyrate Plastic |
| Color | Black |
Performance Details
| Audible Continuity | Yes |
Electrical Properties
| Probe Voltage | 3V at 15mA |
| Resistance | 0 - 50 ohm |
| Test Current | 15mA |
Physical Properties
| Lead Length | 3 ft |
Supporting Information
| Includes | (2) AAA Batteries, (1) #10-32 Probe Tip, Lead Wire Terminated with Alligator Clip |
