Von Roll 3030 E-Kote® Synthetic Conductive Acrylic Coating

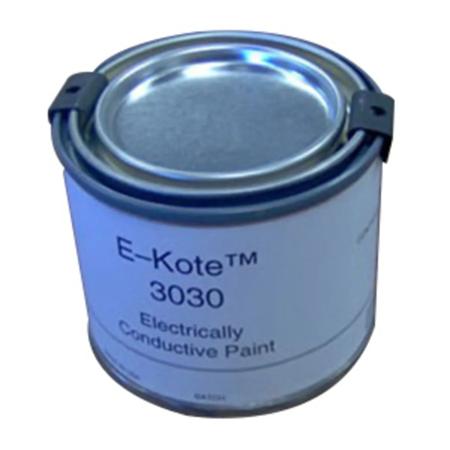

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:VRI-3030

EIS #:PH11-VRI-3030

Series #:3030

MFR #:VRI-3030

EIS #:PH11-VRI-3030

Series #:3030

0
0
E-Kote 3030 is a silver-filled electrically conductive synthetic coating with a thermoplastic base. It sets up by solvent evaporation to form a hard, tough film which may be soldered by using conventional tin-lead solders. E-Kote 3030 may be applied by dipping, brushing or silk-screening. - Viscosity may be reduced as required by thinning with PM acetate. Typical applications for E-Kote 3030 include shielding, printed circuitry and preparation of non-solderable surfaces for soldering.
$238.98
 - $824.47
Select from the options below
0
0
E-Kote 3030 is a silver-filled electrically conductive synthetic coating with a thermoplastic base. It sets up by solvent evaporation to form a hard, tough film which may be soldered by using conventional tin-lead solders. E-Kote 3030 may be applied by dipping, brushing or silk-screening. - Viscosity may be reduced as required by thinning with PM acetate. Typical applications for E-Kote 3030 include shielding, printed circuitry and preparation of non-solderable surfaces for soldering.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
3 oz
EIS Part #
EKOTE30303OZ
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
16 oz
EIS Part #
EKOTE303016OZ
$ / Ounce

Attributes

General Information
Item NameConductive Coating
Trade NameE-Kote®
Series3030
General Features
Shelf Life12 Months
StandardsOSHA Approved, 29 CFR 1910.1200 Certified
Storage TemperatureBelow 30 °C
TypeSynthetic
Design & Construction
ColorSilver
Coverage5 sq-ft/oz
FormLiquid
Performance Details
Application Time15 sec - 30 min
Evaporation Rate1.9
Flame RetardantYes
Full Cure Time16 hr at 25 °C, 30 min at 175 °C
Open Time1 - 15 min
Shear StrengthUp to 300 psi
Chemical Properties
CompositionAcrylic
Specific Gravity1.79
Viscosity700 cP
VOC51%
Physical Properties
Density0.782g/mL
Odor/ScentFruity
Supporting Information
Applicable MaterialsShielding, Printed Circuitry and Preparation of Non-Solderable Surfaces for Soldering
