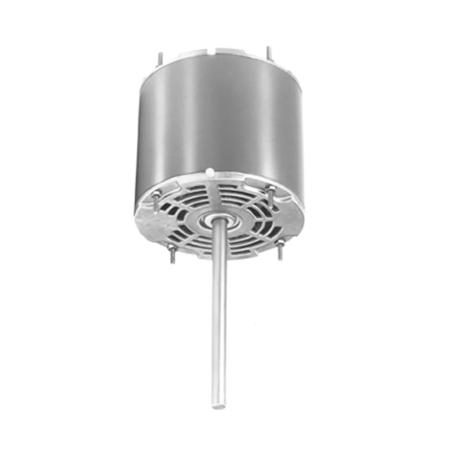

Fasco D744 Condenser Fan Motor, 1/3 - 1/4 HP, 1075 rpm, 48 Frame, Open Ventilated
EIS #:MOTD744
EIS #:MOTD744
Out of Stock
Min Qty:1
|Qty Increment:1
Fasco D744 Condenser Fan Motor. - Fasco D744 Condenser Fan Motor, Sleeve Bearing, 4.75 Inch L, Open Ventilated Enclosure, 48 Frame, 60 Hz, 3.2 - 2.4A Full Load, 1/3 - 1/4 HP, Reversible Rotation, 0.5 Inch Shaft Dia, 6.5 Inch Shaft Length, Vertical Shaft, 1075 rpm, Start Method: Permanent Split Capacitor, 208 - 230V.
$384.25 / Piece
Min Qty:1
|Qty Increment:1
Fasco D744 Condenser Fan Motor. - Fasco D744 Condenser Fan Motor, Sleeve Bearing, 4.75 Inch L, Open Ventilated Enclosure, 48 Frame, 60 Hz, 3.2 - 2.4A Full Load, 1/3 - 1/4 HP, Reversible Rotation, 0.5 Inch Shaft Dia, 6.5 Inch Shaft Length, Vertical Shaft, 1075 rpm, Start Method: Permanent Split Capacitor, 208 - 230V.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameCondenser Fan Motor
SeriesFA208-230VOVCFM
Design & Construction
Bearing TypeSleeve
Enclosure TypeOpen
RotationReversible
Shaft PositionVertical
Start MethodPermanent Split Capacitor
Performance Details
Speed Rating1075 rpm
Electrical Properties
Frequency Rating60 Hz
Full Load Ampere2.4 A
HP Rating0.33 HP
Voltage Rating230 V
Physical Properties
Dimensions4.75 Inch L
Frame Size48
Shaft Diameter0.5 Inch
Shaft Length6.5 Inch
Features
- 2 speeds
- Full load ampere: 3.2 - 2.4A
- HP rating: 1/3 - 1/4 HP
- Voltage Rating: 208 - 230V
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
