Desco 07010 Calibration Unit, 4.4" W x 3-1/64" L x 9" H
- MFR #07010
- EIS #07010-DES
$177.78 / each
Pack: Each
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
PackEach

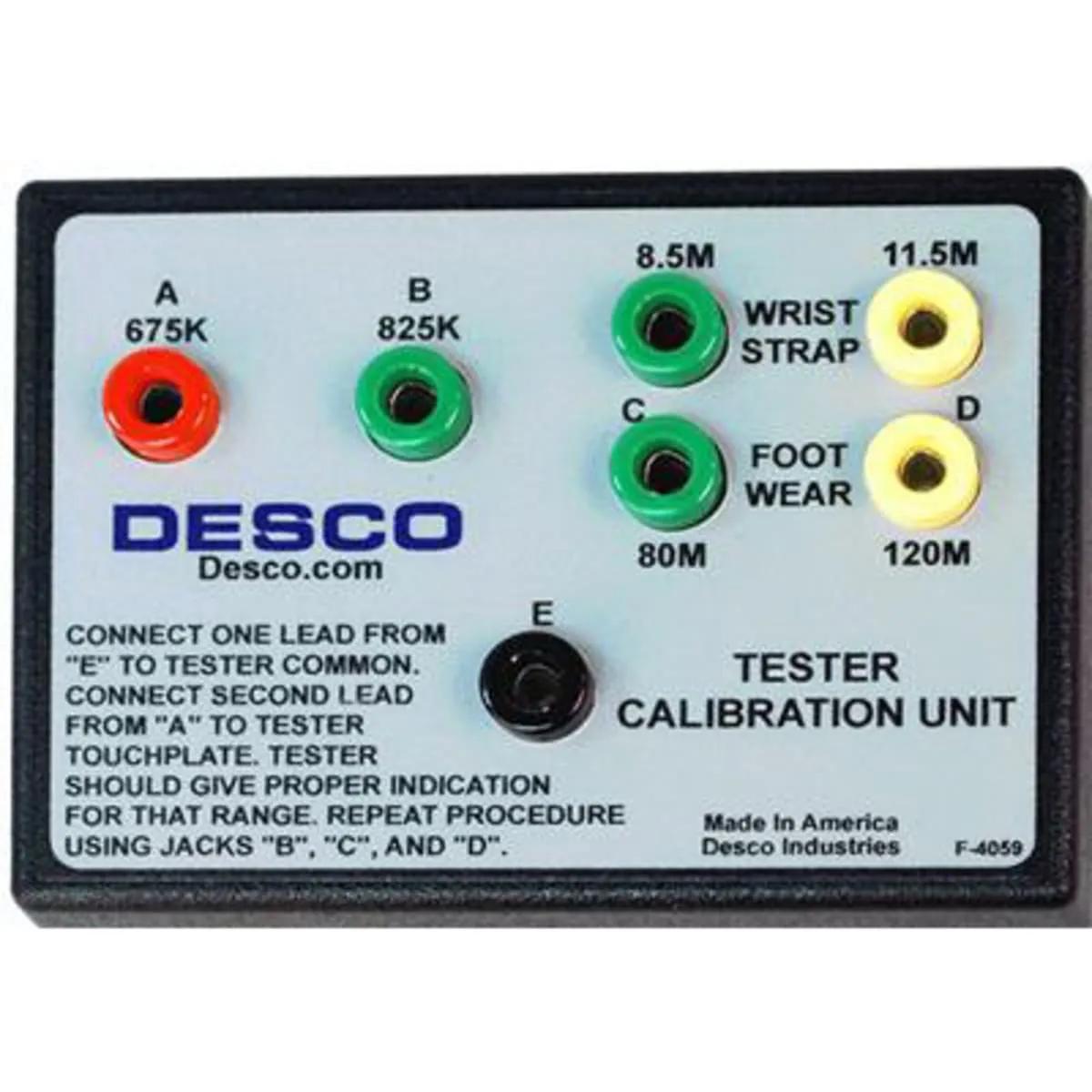

The Desco Calibration Unit is designed to verify whether a tester is operating within specifications. The Calibration Unit is manufactured with industry accepted test ranges for both wrist straps and foot grounders. - This product can be used as one of the tools to fulfill, the 07010 Calibration Unit is a passive device and requires no power source.
General Information
| Item Name | Calibration Unit |
| Trade Name | Desco |
General Features
| Net Weight | 4 oz |
| Standards | ANSI/ESD S20.20 |
Technical Details
| Accuracy | +/-5% |
| Foot Ground Test Range | 750k - 100 Megaohm |
| Wrist Strap Test Range | 750K - 10 Megaohm |
Physical Properties
| Height | 9 Inch |
| Length | 3.2 Inch |
| Meter Weight | 4 oz |
| Width | 4.4 Inch |
Supporting Information
| For Use With | 19240, 19280, 19282, 19283, 19350 and 19351 Testers |
| Includes | (2) Test Leads with Banana Plug Terminals, NIST Calibration Certificate |
Documents
No Documents Found
