Von Roll Poly Glas® 76870 Polyester Banding Tape

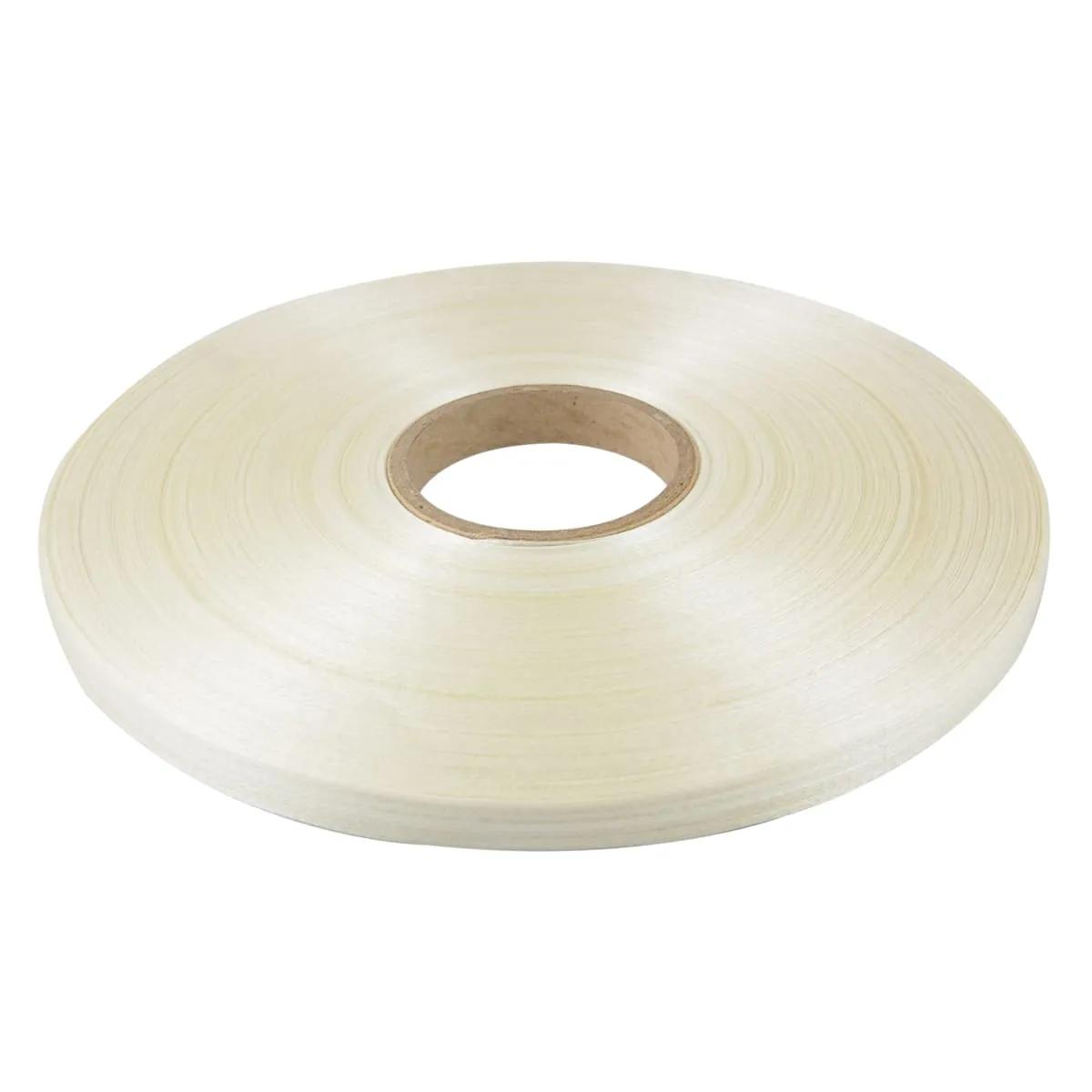

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:76870
  • EIS #:PH22-76870
  • MFR #:76870
  • EIS #:PH22-76870
0
0
Poly Glas 76870 is an electrical grade, moisture resistant, parallel glass banding tape, impregnated with an uncured, high temperature, modified polyester resin. During cure, resin flow fills voids and air spaces, producing a homogeneous laminate, with a smooth resin rich surface. - This smooth surface reduces the collection of dirt which might otherwise lead to tracking failure. The thermosetting modified polyester resin provides excellent arc resistance and minimizes flashover.
$106.60
 - $1,313.54
Select from the options below
0
0
Poly Glas 76870 is an electrical grade, moisture resistant, parallel glass banding tape, impregnated with an uncured, high temperature, modified polyester resin. During cure, resin flow fills voids and air spaces, producing a homogeneous laminate, with a smooth resin rich surface. - This smooth surface reduces the collection of dirt which might otherwise lead to tracking failure. The thermosetting modified polyester resin provides excellent arc resistance and minimizes flashover.

Product Options

Showing 8 out of 9 options
The image shown is representative of the product family and may not specifically be the individual item.
Length:
2000 Yard
Width:
0.75 Inch
EIS Part #:
BAND76870L3/406
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Length:
250 Yard
Width:
0.375 Inch
EIS Part #:
BAND768703/8
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Length:
1500 Yard
Width:
0.75 Inch
EIS Part #:
BAND768703/405
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Length:
250 Yard
Width:
0.75 Inch
EIS Part #:
BAND768703/402
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Length:
250 Yard
Width:
0.875 Inch
EIS Part #:
BAND7687017/8
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Length:
250 Yard
Width:
1 Inch
EIS Part #:
BAND76870101
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Length:
500 Yard
Width:
0.25 Inch
EIS Part #:
BAND768701/4
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Length:
250 Yard
Width:
0.5 Inch
EIS Part #:
BAND768701/2
$ / Roll

Attributes

General Information

Item NameBanding Tape
Trade NamePoly Glas®

Series76870

General Features

Shelf Life6 Months
Storage Temperature25 °C

Design & Construction

Backing MaterialPolyester

Performance Details

Tensile Strength200 psi

Physical Properties

Thickness11.5 mil

Environmental Condition

ResistsMoisture
Temperature Rating220 °C
