Von Roll Poly Glas® 76830 Polyester Banding Tape

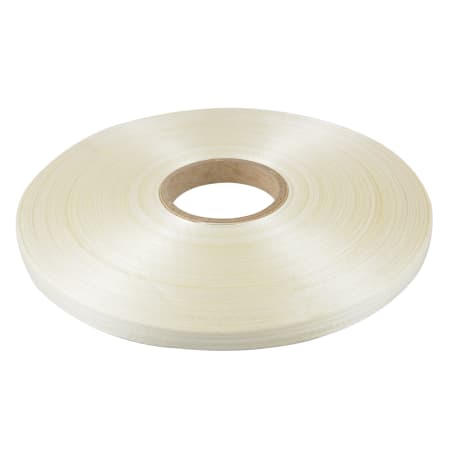

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:76830

EIS #:PH22-76830

MFR #:76830

EIS #:PH22-76830

0
0
Poly Glas 76830 is an electrical grade, parallel glass banding tape, impregnated with an uncured, high temperature, modified polyester resin. During cure, resin flow fills voids and air spaces, producing a homogeneous laminate, with a smooth resin rich surface. - Glass bonding is a commonly recognized replacement for steel wire banding on DC armatures and commutators. This smooth surface reduces the collection of dirt which might otherwise lead to tracking failure. The thermosetting modified polyester resin provides excellent arc resistance and minimizes flashover.
$114.98
 - $262.48
Select from the options below
0
0
Poly Glas 76830 is an electrical grade, parallel glass banding tape, impregnated with an uncured, high temperature, modified polyester resin. During cure, resin flow fills voids and air spaces, producing a homogeneous laminate, with a smooth resin rich surface. - Glass bonding is a commonly recognized replacement for steel wire banding on DC armatures and commutators. This smooth surface reduces the collection of dirt which might otherwise lead to tracking failure. The thermosetting modified polyester resin provides excellent arc resistance and minimizes flashover.

Product Options

Showing 7 out of 7 options
Length
250 Yard
Width
0.375 Inch
EIS Part #
BAND768303/8
$ / Spool
Length
250 Yard
Width
0.75 Inch
EIS Part #
BAND768303/401
$ / each
Length
100 Yard
Width
0.75 Inch
EIS Part #
BAND768303/4
$ / Spool
Length
250 Yard
Width
1 Inch
EIS Part #
BAND7683012
$ / Roll
Length
100 Yard
Width
1 Inch
EIS Part #
BAND7683011
$ / Spool
Length
500 Yard
Width
0.25 Inch
EIS Part #
BAND768301/4
$ / Spool
Length
250 Yard
Width
0.5 Inch
EIS Part #
BAND768301/2
$ / Spool

Attributes

General Information
Item NameBanding Tape
Trade NamePoly Glas®
Series76830
General Features
Shelf Life6 Months
Storage Temperature77 °F
Design & Construction
Backing MaterialPolyester
Performance Details
Tensile Strength200 psi
Physical Properties
Core Size3 Inch
Thickness11.5 mil
Environmental Condition
Temperature Rating155 °C
