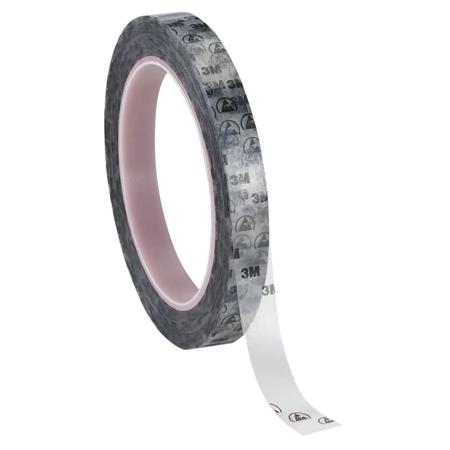

3M Printed Anti-Static Utility Tape, MFR ID 40PR
- MFR #40PR
- EIS #PH13-40PR
- Series #40PR
$14.96 - $114.47
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | ||||
|---|---|---|---|---|
 | 72 Yard | 0.25 Inch | $ / Roll | |
| 72 Yard | 1 Inch | $ / Roll |
3M Antistatic Utility Tapes 40 Printed and Unprinted represent a breakthrough in pressure-sensitive adhesive (PSA) tape technology. This new tape, which generates less than 50 Volts on unwind and removal from stainless steel, helps prevent electrostatic discharge (ESD) damage to sensitive electronic components in manufacturing environments. Triboelectric charge may vary with your application and environment. - 3M 40 Antistatic Utility Tapes can be used at static-safeguard workstations as part of your total static control program. It generates very low levels of static charge even in dry conditions of 10% relative humidity (RH). The tape is supplied on a paper core, antistatic plastic cores are available to minimize particulate contamination in clean work areas.
Features
- 3M 40 antistatic utility tape can be used at static-safeguard workstations as part of your total static control program
- It generates very low levels of static charge even in dry conditions of 10% relative humidity (RH)
- The tape is supplied on a paper core, antistatic plastic cores are available to minimize particulate contamination in clean work areas
- Antistatic utility tape is a transparent polyester film tape with acrylic adhesive
- Made with a proprietary technology, the tape generates extremely low levels of triboelectric charge when it is unwound from the roll and also when removed from most surfaces on which it is placed
- This makes the tape an excellent choice for use near electronic components and assemblies
- The tape is printed on the adhesive side with the 3M logo and the ESD protective symbol
Applications
- For Office, Clean Room, Work Station, Manufacturing and Packaging, Label Stock
General Information
| Item Name | Anti-Static Utility Tape |
| Series | 40PR |
General Features
| Shelf Life | 24 Months |
| Standards | RoHS Compliant |
| Storage Temperature | 50 to 80 °F |
| Type | Printed |
Design & Construction
| Adhesive Type | Conductive Polymer |
| Backing Material | Polyester |
| Color | Clear |
| Legend | Static Symbol |
Performance Details
| Adhesive Strength | 15 oz/Inch |
Technical Details
| Humidity | < 75% Relative |
Electrical Properties
| Resistivity | 5 x 10^6 ohm |
Physical Properties
| Thickness | 2.2 mil |
