3M 80610872618 Printed Anti-Static Utility Tape, 1" x 72 yd, Polyester, Clear, MFR ID 7000043014
- MFR #7000043014
- EIS #3M40X1P
- UPC #00051138477752
$59.89 / Roll
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info

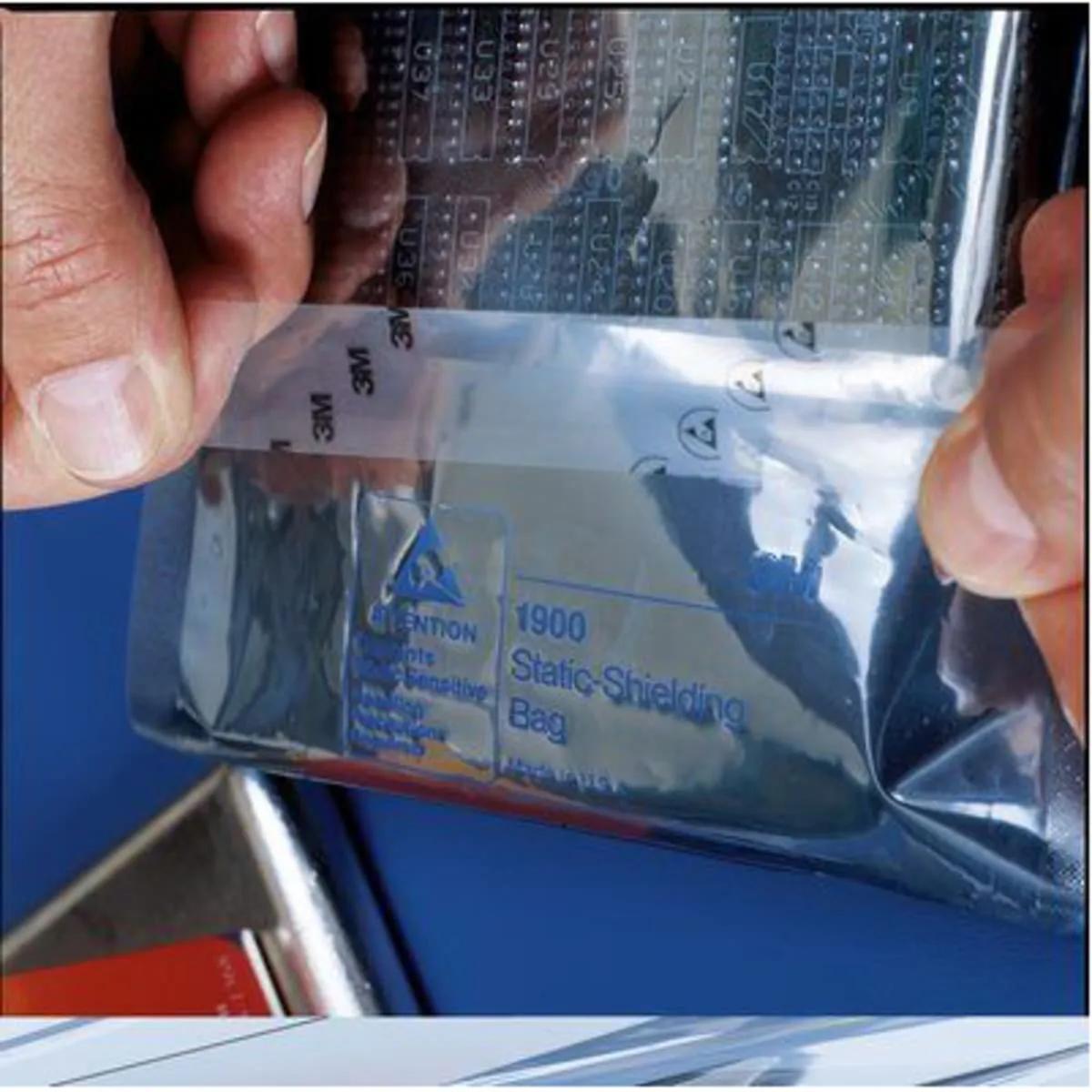

3M™ Tape 40PR Utility tape is pre printed with a static symbol and has 1 mil thick, anti static, polyester film backing. This tape offers optimized adherence with an anti static, conductive polymer, acrylic adhesive. It has a compact design and a multitude of applications in manufacturing. The tape is designed to prevent ESD damage to various sensitive electronic equipment in manufacturing environments. It comes on an anti static plastic core, which eliminates the contamination of dirt in clean work areas. RoHS 2011/65/EU Compliant.
3M™ Tape 40PR is a 2.2 mil thick, anti static utility tape. This static symbol printed tape is suitable for use in static sensitive areas. It withstands temperatures up to 266 °F (130 °C).
Features
- 3M 40 antistatic utility tape can be used at static-safeguard workstations as part of your total static control program
- It generates very low levels of static charge even in dry conditions of 10% relative humidity (RH)
- The tape is supplied on a paper core, antistatic plastic cores are available to minimize particulate contamination in clean work areas
- Antistatic utility tape is a transparent polyester film tape with acrylic adhesive
- Made with a proprietary technology, the tape generates extremely low levels of triboelectric charge when it is unwound from the roll and also when removed from most surfaces on which it is placed
- This makes the tape an excellent choice for use near electronic components and assemblies
- The tape is printed on the adhesive side with the 3M logo and the ESD protective symbol
Applications
- For Office, Clean Room, Work Station, Manufacturing and Packaging, Label Stock
General Information
| Item Name | Anti-Static Utility Tape |
Design & Construction
| Adhesive Type | Conductive Polymer |
| Backing Material | Polyester |
| Color | Clear |
| Legend | Static Symbol |
Performance Details
| Adhesive Strength | 15 oz/Inch |
Technical Details
| Humidity | < 75% Relative |
Electrical Properties
| Resistivity | 5 x 10^6 ohm |
Physical Properties
| Core Size | 3 Inch |
| Length | 72 Yard |
| Thickness | 2.2 mil |
| Width | 1 Inch |
Environmental Condition
| Temperature Rating | 266 °F |
