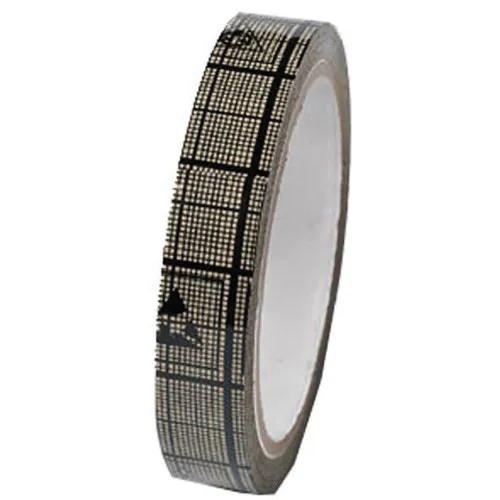

Desco Wescorp Anti-Static Shielding Grid Tape with ESD Symbol, MFR ID 8125

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:8125
  • EIS #:PH13-8125
  • Series #:8125
  • MFR #:8125
  • EIS #:PH13-8125
  • Series #:8125
0
0
Low charging transparent cellulose film (2.4 Mil) with high-tack rubber adhesive anti-static shielding grid tape with ESD symbol generates less than 50V when unwound from roll (at 73 °F, 45% RH average) making it safe to use around most ESD sensitive items. - Desco Wescorp anti-static shielding grid tape with ESD symbol for applications requiring EMI shielding and cover external plugs, holes or connector pins on electronic chassis (black boxes, etc.) during transportation or storage.
Select from the options below
0
0
Low charging transparent cellulose film (2.4 Mil) with high-tack rubber adhesive anti-static shielding grid tape with ESD symbol generates less than 50V when unwound from roll (at 73 °F, 45% RH average) making it safe to use around most ESD sensitive items. - Desco Wescorp anti-static shielding grid tape with ESD symbol for applications requiring EMI shielding and cover external plugs, holes or connector pins on electronic chassis (black boxes, etc.) during transportation or storage.

Product Options

Showing 4 out of 4 options
The image shown is representative of the product family and may not specifically be the individual item.
Width:
2 Inch
EIS Part #:
81253-DES
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
1 Inch
EIS Part #:
81252-DES
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
0.75 Inch
EIS Part #:
81251-DES
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
0.5 Inch
EIS Part #:
81250-DES
$ / Roll

Attributes

General Information

Item NameAnti-Static Shielding Grid Tape with ESD Symbol
Trade NameWescorp

Series8125

General Features

StandardsLead-Free RoHS Compliant, MIL STD 1285, MIL-B-81705, and ESDA, ANSI/ESD S11.11, ANSI/ESD S541
Storage Temperature68 °F

Design & Construction

Adhesive TypeAcrylic Based
Backing MaterialCellulose, Copolymer
LegendStatic Symbol
MaterialPlastic

Performance Details

Tensile StrengthSee TDS

Technical Details

Humidity50% Relative

Electrical Properties

Resistivity1 x 10^8 - < 1 x 10^11 ohm
Static Decay0.5 sec

Physical Properties

Core Size3 Inch
ElongationSee TDS
Length118 ft
Thickness1.9 mil

Supporting Information

For Use WithGroundable ESD Tape Dispenser
