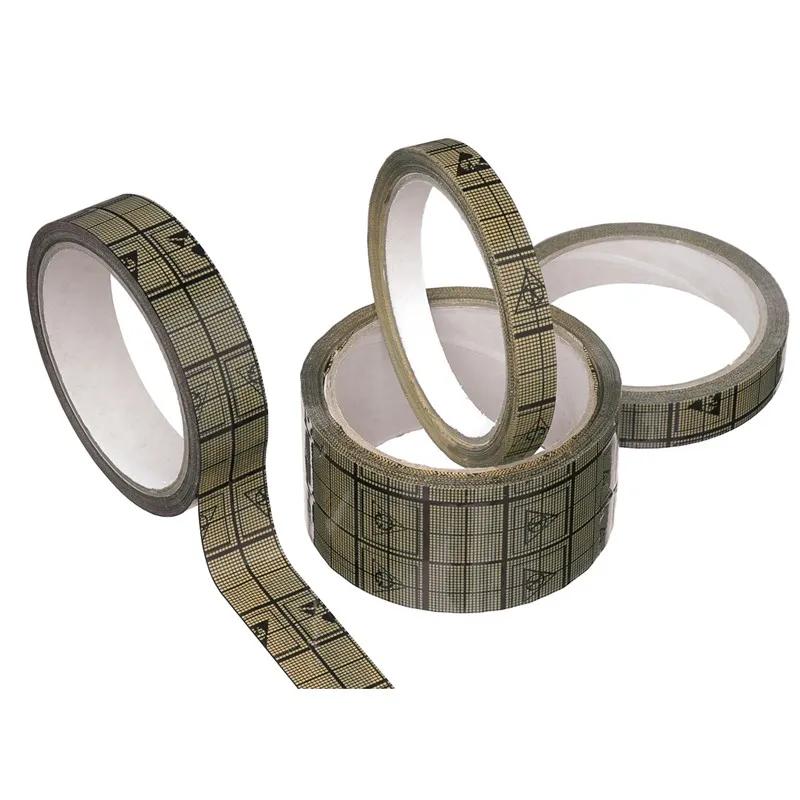

Desco 81253 Wescorp Anti-Static Shielding Grid Tape with ESD Symbol, 2" x 118', Plastic
- MFR #81253
- EIS #81253-DES
$16.73 / Roll
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
Desco Wescorp anti-static shielding grid tape with ESD symbol for applications requiring EMI shielding and cover external plugs, holes or connector pins on electronic chassis (black boxes, etc.) during transportation or storage.
Low charging transparent cellulose film (2.4 Mil) with high-tack rubber adhesive anti-static shielding grid tape with ESD symbol generates less than 50V when unwound from roll (at 73 deg f, 45% RH average) making it safe to use around most ESD sensitive items.
Features
- Conductive shielding layer (< 1 x 10^5) marked with ESD symbols (MIL-STD-1285 and ESDA)
Applications
- For Applications Requiring EMI Shielding and Cover External Plugs, Holes or Connector Pins on Electronic Chassis (Black Boxes, etc.) During Transportation or Storage
General Information
| Item Name | Anti-Static Shielding Grid Tape with ESD Symbol |
| Trade Name | Desco |
General Features
| Standards | Lead-Free RoHS Compliant, MIL STD 1285, MIL-B-81705, and ESDA, ANSI/ESD S11.11, ANSI/ESD S541 |
| Storage Temperature | 68 deg F |
Design & Construction
| Adhesive Type | Acrylic Based |
| Backing Material | Cellulose, Copolymer |
Performance Details
| Tensile Strength | See TDS |
Technical Details
| Humidity | 50% Relative |
Electrical Properties
| Resistivity | 1 x 10^8 - < 1 x 10^11 ohm |
| Static Decay | 0.5 sec |
Physical Properties
| Core Size | 3 Inch |
| Elongation | See TDS |
| Length | 118.0 |
| Thickness | 1.9 |
| Width | 2 Inch |
Environmental Condition
| Temperature Rating | 14 to 140 °F |
Supporting Information
| For Use With | Groundable ESD Tape Dispenser |
