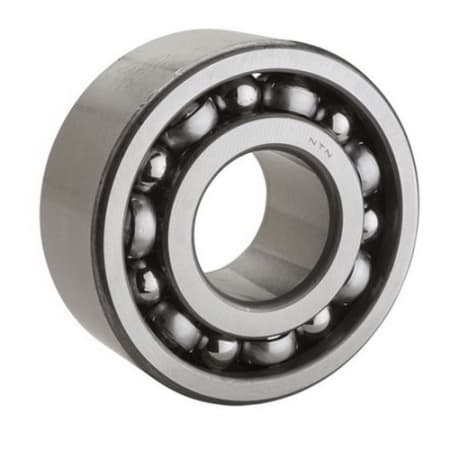

NTN 521101 Double Row Angular Contact Ball Bearing, 25 deg, 55 mm Bore x 100 mm OD x 33.3 mm W, Pressed Steel
MFR #:5211C3
EIS #:521101
Series #:5211
MFR #:5211C3
EIS #:521101
Series #:5211
Out of Stock
Min Qty:1
|Qty Increment:1
NTN 5200 Double Row Angular Contact Ball Bearing.
NTN 5200 Series Angular Contact Ball Bearing, Pressed Steel Cage, Clearance: C3.
$104.05 / each
Min Qty:1
|Qty Increment:1
NTN 5200 Double Row Angular Contact Ball Bearing.
NTN 5200 Series Angular Contact Ball Bearing, Pressed Steel Cage, Clearance: C3.
- Attributes
- Features
- Documents
Attributes
General Information
Item NameAngular Contact Ball Bearing
Trade NameNTN
Series5211
General Features
Net Weight0.986kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeOpen
Performance Details
Contact Angle25 deg
Dynamic Load Capacity63000 N
Static Load Capacity53000 N
Physical Properties
Bore Diameter55 mm
Fillet Radius1.5 mm
Number of Rows2
Outside Diameter100 mm
Radial Internal Clearance3
Width33.3 mm
Features
- Clearance: C3
- Speed Rating: 3600 rpm (Grease), 4900 rpm (Oil)
- Temperature Rating: -40 to 120 °C
