3M 926 Scotch® ATG Adhesive Transfer Tape

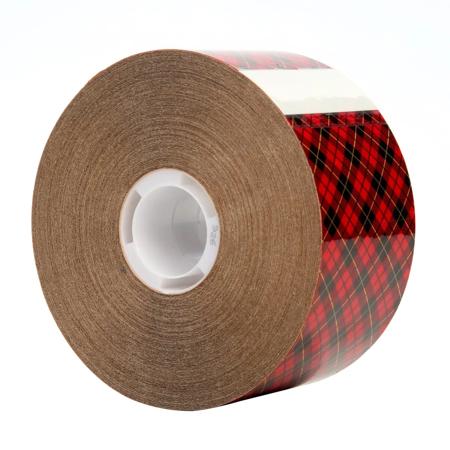

The image shown is representative of the product family and may not specifically be the individual item. Scotch® ATG Adhesive Transfer Tape 926 is ideal for applications requiring high bond strength, high shear strength and high temperature performanc…
  • MFR #:926
  • EIS #:PH22-926
  • MFR #:926
  • EIS #:PH22-926
0
0
3M Scotch 926 clear transfer tape comes in acrylic adhesive. The variances in thickness often make an important difference in proper performance. The liner material for this product is composed of densified kraft paper. It is a cost effective replacement to rivets, staples, screws, bolts, liquid adhesives and safer than hot melt adhesives. - Products in this category feature a liner on the back which you peel away from to expose the adhesive material before applying to the substrate. ATG tape system delivers a controlled application of the adhesive while the liner rewinds into the ATG applicator.
$18.36
 - $134.10
Select from the options below
0
0
3M Scotch 926 clear transfer tape comes in acrylic adhesive. The variances in thickness often make an important difference in proper performance. The liner material for this product is composed of densified kraft paper. It is a cost effective replacement to rivets, staples, screws, bolts, liquid adhesives and safer than hot melt adhesives. - Products in this category feature a liner on the back which you peel away from to expose the adhesive material before applying to the substrate. ATG tape system delivers a controlled application of the adhesive while the liner rewinds into the ATG applicator.

Product Options

Showing 3 out of 3 options
The image shown is representative of the product family and may not specifically be the individual item. Scotch® ATG Adhesive Transfer Tape 926 is ideal for applications requiring high bond strength, high shear strength and high temperature performanc…
Length:
36 Yard
Width:
2 Inch
EIS Part #:
3M926X2
$ / Roll
Pack: 24/Case
The image shown is representative of the product family and may not specifically be the individual item. Scotch® ATG Adhesive Transfer Tape 926 is ideal for applications requiring high bond strength, high shear strength and high temperature performanc…
Length:
18 Yard
Width:
0.75 Inch
EIS Part #:
3M926X.75
$ / Roll
Pack: 12/Case
The image shown is representative of the product family and may not specifically be the individual item. Scotch® ATG Adhesive Transfer Tape 926 is ideal for applications requiring high bond strength, high shear strength and high temperature performanc…
Length:
36 Yard
Width:
0.5 Inch
EIS Part #:
3M926X.501
$ / Roll
Pack: 72/Case

Attributes

General Information

Item NameAdhesive Transfer Tape
Trade NameScotch®

Series926

General Features

TypeATG
Shelf Life24 Months
Storage Temperature21 °C

Design & Construction

Adhesive TypeAcrylic
ColorClear/Tan Liner
Liner MaterialDensified Kraft Paper

Performance Details

Adhesive Strength150 oz/Inch
Shear Strength8 psi

Physical Properties

Adhesive Thickness5 mil
Core Size3 Inch
Length18 Yard
Liner Thickness4 mil
Width0.250 Inch
Thickness5 Mil

Environmental Condition

ResistsChemical, Humidity, Moisture, Plasticizer, Solvent, UV, Temperature
Temperature Rating300 °F
