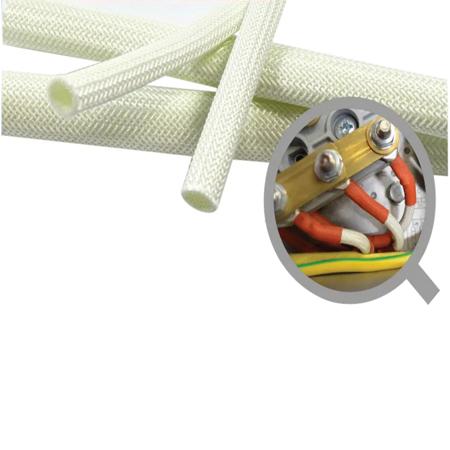

Delfingen Nu-Sleeve™ VPI-155 Class F Grade A Acrylic Coated Sleeving
MFR #:VPI-155-A
EIS #:PH21-VPI-155-A
Series #:VPI-155-A
MFR #:VPI-155-A
EIS #:PH21-VPI-155-A
Series #:VPI-155-A
Nu-Sleeve VPI-155 is a grade A acrylic resin coated fiberglass sleeve with a bonded over-braided outer layer of fiberglass braid. This combination makes Nu-Sleeve VPI-155 a flexible and highly protective sleeve, with a higher surface area for the absorption and retention of the vacuum pressure impregnation resin. - Nu-Sleeve VPI-155 is a grade A acrylic resin coated fiberglass sleeve with a bonded over-braided outer layer of fiberglass braid.
$61.16
- $509.34
Select from the options below
Nu-Sleeve VPI-155 is a grade A acrylic resin coated fiberglass sleeve with a bonded over-braided outer layer of fiberglass braid. This combination makes Nu-Sleeve VPI-155 a flexible and highly protective sleeve, with a higher surface area for the absorption and retention of the vacuum pressure impregnation resin. - Nu-Sleeve VPI-155 is a grade A acrylic resin coated fiberglass sleeve with a bonded over-braided outer layer of fiberglass braid.
Product Options
Showing 8 out of 16 options
 | Length: 50 ft | Gauge: 1 Inch | EIS Part #: ACRVPOB1.0NAJ | $ / Foot | |
| Length: 100 ft | Gauge: 8 AWG | EIS Part #: ACRVPOB08NBJ | $ / Foot | |
| Length: 100 ft | Gauge: 7 AWG | EIS Part #: ACRVPOB07NBJ | $ / Foot | |
| Length: 100 ft | Gauge: 6 AWG | EIS Part #: ACRVPOB06NBJ | $ / Foot | |
| Length: 100 ft | Gauge: 5 AWG | EIS Part #: ACRVPOB05NBJ | $ / Foot | |
| Length: 100 ft | Gauge: 4 AWG | EIS Part #: ACRVPOB04NBJ | $ / Foot | |
| Length: 100 ft | Gauge: 3 AWG | EIS Part #: ACRVPOB03NBJ | $ / Foot | |
| Length: 100 ft | Gauge: 2 AWG | EIS Part #: ACRVPOB02NBJ | $ / Foot |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameAcrylic Coated Sleeving
Trade NameNu-Sleeve™ VPI-155
SeriesVPI-155-A
Design & Construction
ColorNatural
Braid TypeFiberglass, Over-Braided
GradeA
Insulation MaterialAcrylic
Insulation TypeClass F
NEMA SpecificationNEMA TF-1
Electrical Properties
Dielectric Strength7000 V
Breakdown Voltage7 kV
Physical Properties
Elongation150%
Features
- It reduces end fray and operator dermatitis during cutting and handling operations
- The sleeving is compatible with virtually all electrical grade varnishes and impregnation systems making it ideally suited for VPI applications
- Since the overbraid is bonded and lightly saturated, it retains its resin absorption properties while reducing end fray and operator dermatitis during cutting and handling operations
- Dielectric Strength: Dry - 7000 V, Wet - >80% Of Dry Value
- Volume Resistivity: 1 Ohm-cm x 10^10 Ohm-cm
- Dielectric Grade: A
- Temperature Rating: -10 to 155 °C
Applications
- For Coil and Winding Industry (Coils, Motors, Generators, Transformer)
- Wind Turbines and Solar Panels
- Industrial Fields
