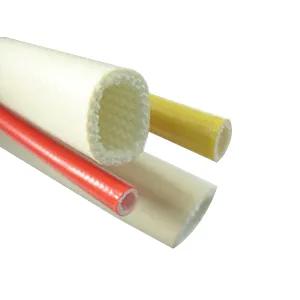

Delfingen Nu-Sleeve AG-155-S Class F Grade A+ Acrylic Coated Sleeving, 5/8", 100' Per Spool, Natural, MFR ID ACRAPLUS.625NBJ
- MFR #122369
- EIS #ACRAPLUS.625NBJ
- Series #Nu-Sleeve™ AG-155-S-A+
$263.93 / 100Foot
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | 100 ft | 0.625 Inch | Natural | $ / Foot more info | |
| 100 ft | 0.5 Inch | Natural | $ / Foot more info | |
| 100 ft | 0.438 Inch | Natural | $ / Foot more info | |
| 100 ft | 0.375 Inch | Natural | $ / Foot more info | |
| 250 ft | 8 AWG | Natural | $ / Foot more info | |
| 100 ft | 1 AWG | Natural | $ / Foot more info |
Nu-Sleeve AG-155 has the same characteristics than the standard Nu-Sleeve AG-155 but with superior electrical and puncture resistance properties (up to 12000V). Nu-Sleeve AG-155 provides electrical protection and has excellent chemical resistance. Nu-Sleeve AG-155 S is a fiberglass sleeve coated with a blend of acrylic polymers. It exhibits excellent heat stability and flexibility for ease of push-up and recovery.
Applications
- For Coil and Winding Industry (Coils, Motors, Generators, Transformers)
- Lighting Fixtures, Transportation (Mass Transit, Rail Cars, Locomotives)
- Industrial Equipment (Tow Motors, Overhead Cranes, Aerial Platforms)
- Technology, Media and Telecommunication
Features
- Nu-Sleeve AG-155 provides electrical protection and has excellent chemical resistance
- It exhibits excellent heat stability and flexibility for ease of push-up and recovery
- Excellent cut through resistance
- 2.8 (1000 Hz) dielectric constant
- 0.08 (1000 Hz) dissipation factor
- Flexibility (NEMA TF-1 ) does not crack when bent 180 deg around mandrel after heat age at 175 °C (347 °F) for 96 hours
- Fungus resistance very good - none at 10x
- Abrasion resistance (SAE ARP 1 536) 2500 cycles
- Dielectric Strength: Dry - 12000 V, Wet - >80% Of Dry Value
- Volume Resistivity: 1.1 Ohm-cm x 10^10 Ohm-cm
- Dielectric Grade: A+
- Temperature Rating: -40 to 155 °C
- Length: 100 ft Per Spool
General Information
| Item Name | Acrylic Coated Sleeving |
| Trade Name | Nu-Sleeve™ AG-155-S |
| Series | Nu-Sleeve™ AG-155-S-A+ |
Design & Construction
| Braid Type | Fiberglass |
| Color | Natural |
| Grade | A+ |
| Insulation Coating Type | Acrylic |
| Insulation Material | Acrylic |
| Insulation Type | Class F |
| Material | Acrylic Coated Fiberglass |
| NEMA Specification | NEMA TF 1 Type 6 |
Performance Details
| Flame Retardant | Yes |
Electrical Properties
| Breakdown Voltage | 15 kV |
| Dielectric Grade | Grade A+ |
| Dielectric Strength | 12000 V |
Physical Properties
| Elongation | 150% |
| Gauge | 0.625 Inch |
| Inside Diameter | 0.64 Inch |
| Length | 100 ft |
| Wall Thickness | NEMA TF-1 |
Environmental Condition
| Temperature Rating | -40 to 155 °C |
