Delfingen Nu-Sleeve™ AG-155 Class F Grade C-2 Acrylic Coated Sleeving

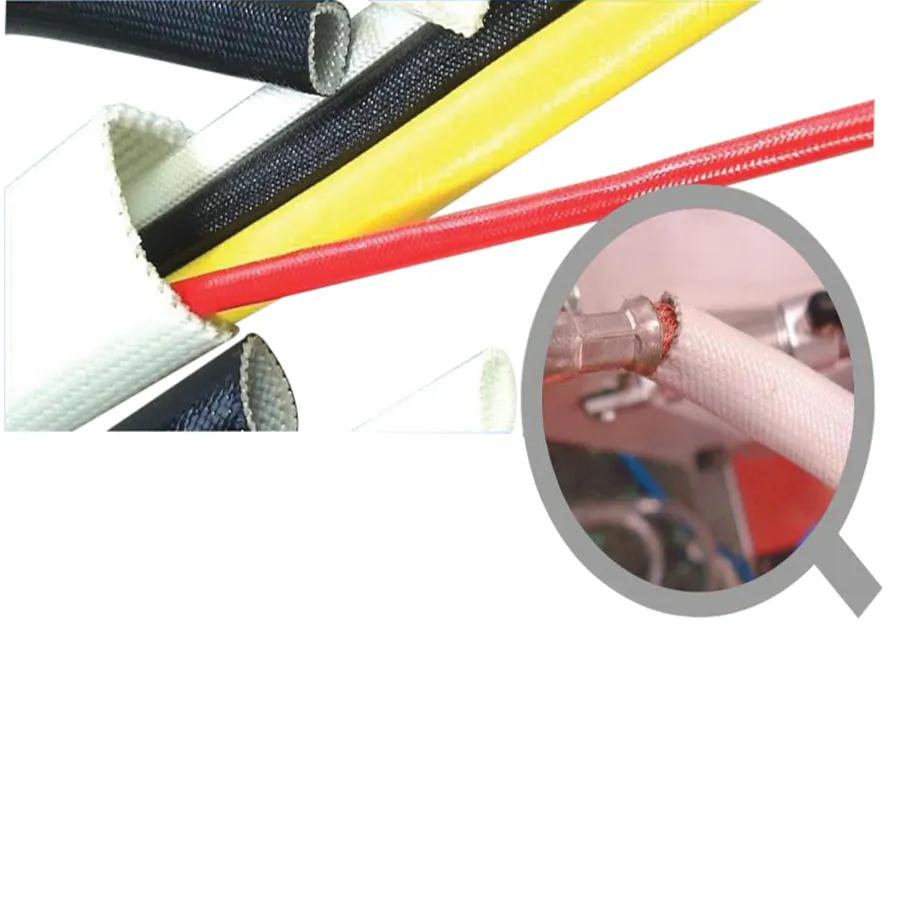

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:Nu-Sleeve™ AG-155-C-2

EIS #:PH21-Nu-Sleeve AG-155-C-2

Series #:Nu-Sleeve™ AG-155-C-2

MFR #:Nu-Sleeve™ AG-155-C-2

EIS #:PH21-Nu-Sleeve AG-155-C-2

Series #:Nu-Sleeve™ AG-155-C-2

0
0
Nu-Sleeve AG-155 has excellent electrical, chemical and oil resistance properties, excellent heat stability and flexibility for ease of push-up and recovery. It exhibits excellent resistance to oils, acids and alkalis and solvents. Resistance to fungus and corona is good. Nu-Sleeve AG-155 is available in NEMA Grades A, B, C-1, C-2 and C-3. - Nu-Sleeve AG-155 is a coated fiberglass sleeving made by applying a proprietary blend of acrylic polymers to a closely woven electrical grade fiberglass substrate. For Grade C-3, dielectric value is dependent on static conditions with no specific voltage value guaranteed.
$11.39
 - $288.84
Select from the options below
0
0
Nu-Sleeve AG-155 has excellent electrical, chemical and oil resistance properties, excellent heat stability and flexibility for ease of push-up and recovery. It exhibits excellent resistance to oils, acids and alkalis and solvents. Resistance to fungus and corona is good. Nu-Sleeve AG-155 is available in NEMA Grades A, B, C-1, C-2 and C-3. - Nu-Sleeve AG-155 is a coated fiberglass sleeving made by applying a proprietary blend of acrylic polymers to a closely woven electrical grade fiberglass substrate. For Grade C-3, dielectric value is dependent on static conditions with no specific voltage value guaranteed.

Product Options

Showing 8 out of 14 options
The image shown is representative of the product family and may not specifically be the individual item.
Length:
5000 ft
Gauge:
16 AWG
Color:
Natural
EIS Part #:
ACRC-216NSJ
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item.
Length:
250 ft
Gauge:
10 AWG
Color:
Natural
EIS Part #:
ACRC-210NFJ
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item.
Length:
100 ft
Gauge:
1 Inch
Color:
Natural
EIS Part #:
ACRC-21.0NBJ
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item.
Length:
1000 ft
Gauge:
8 AWG
Color:
Red
EIS Part #:
ACRC-208RJJ
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item.
Length:
1000 ft
Gauge:
6 AWG
Color:
Red
EIS Part #:
ACRC-206RJJ
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item.
Length:
250 ft
Gauge:
5 AWG
Color:
Natural
EIS Part #:
ACRC-205NFJ
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item.
Length:
500 ft
Gauge:
4 AWG
Color:
Red
EIS Part #:
ACRC-204RHJ
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item.
Length:
500 ft
Gauge:
2 AWG
Color:
Red
EIS Part #:
ACRC-202RHJ
$ / Foot

Attributes

General Information
Item NameAcrylic Coated Sleeving
Trade NameNu-Sleeve™ AG-155
SeriesNu-Sleeve™ AG-155-C-2
Design & Construction
GradeC-2
Insulation MaterialAcrylic
Braid TypeFiberglass
Insulation TypeClass F
NEMA SpecificationNEMA TF-1
Electrical Properties
Dielectric Strength7000 V
Breakdown Voltage800 V
Physical Properties
Elongation150%
