Delfingen Nu-Sleeve™ AG-155 AC434 Class F Grade B Acrylic Coated Sleeving

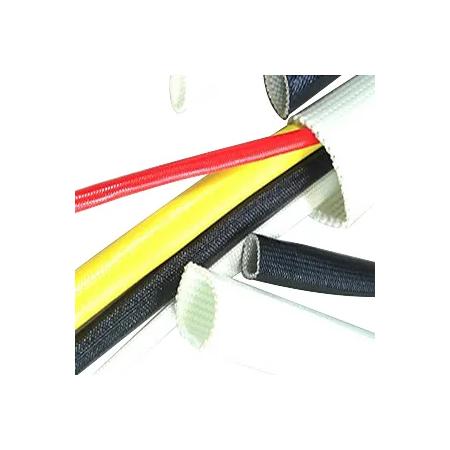

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:Nu-Sleeve™ AG-155-B

EIS #:PH21-Nu-Sleeve AG-155-B

Series #:Nu-Sleeve™ AG-155-B

MFR #:Nu-Sleeve™ AG-155-B

EIS #:PH21-Nu-Sleeve AG-155-B

Series #:Nu-Sleeve™ AG-155-B

0
0
Nu-Sleeve AG-155 has excellent electrical, chemical and oil resistance properties, excellent heat stability and flexibility for ease of push-up and recovery. It exhibits excellent resistance to oils, acids and alkalis and solvents. Resistance to fungus and corona is good. Nu-Sleeve AG-155 is available in NEMA Grades A, B, C-1, C-2 and C-3. - Nu-Sleeve AG-155 is a coated fiberglass sleeving made by applying a proprietary blend of acrylic polymers to a closely woven electrical grade fiberglass substrate. For Grade C-3, dielectric value is dependent on static conditions with no specific voltage value guaranteed.
$27.42
 - $99.36
Select from the options below
0
0
Nu-Sleeve AG-155 has excellent electrical, chemical and oil resistance properties, excellent heat stability and flexibility for ease of push-up and recovery. It exhibits excellent resistance to oils, acids and alkalis and solvents. Resistance to fungus and corona is good. Nu-Sleeve AG-155 is available in NEMA Grades A, B, C-1, C-2 and C-3. - Nu-Sleeve AG-155 is a coated fiberglass sleeving made by applying a proprietary blend of acrylic polymers to a closely woven electrical grade fiberglass substrate. For Grade C-3, dielectric value is dependent on static conditions with no specific voltage value guaranteed.

Product Options

Showing 4 out of 4 options
The image shown is representative of the product family and may not specifically be the individual item.
Length
250 ft
Gauge
4 AWG
Color
Black
EIS Part #
ACRB04BFJ
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item.
Length
18 Inch
Gauge
3 AWG
Color
Black
EIS Part #
ACRB03X18BJ
$ / Foot
Pack150 ft/Pack
The image shown is representative of the product family and may not specifically be the individual item.
Length
250 ft
Gauge
0.438 Inch
Color
Black
EIS Part #
ACRB.4375BFJ
$ / Foot
The image shown is representative of the product family and may not specifically be the individual item.
Length
18 Inch
Gauge
0.375 Inch
Color
Black
EIS Part #
ACRB.375X18BJ
$ / Foot

Attributes

General Information
Item NameAcrylic Coated Sleeving
Trade NameNu-Sleeve™ AG-155
SeriesNu-Sleeve™ AG-155-B
Design & Construction
GradeB
Insulation MaterialAcrylic
Insulation TypeClass F
Braid TypeFiberglass
NEMA SpecificationNEMA TF-1
Electrical Properties
Dielectric Strength7000 V
Breakdown Voltage2500 V
Physical Properties
Elongation150%
