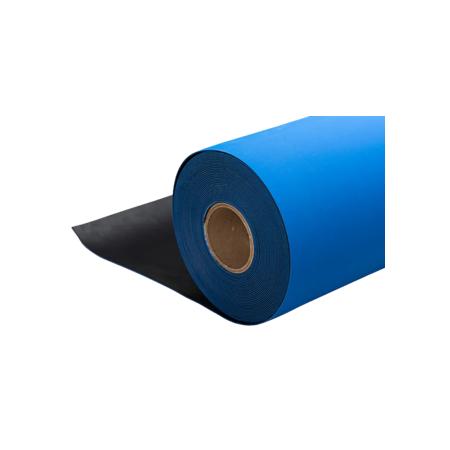

ACL Staticide ACL Staticide Supreme Mat Dual Layer ESD Table Mat, 24 inch x 40 ft, 0.08 inch, Royal Blue, Roll, MFR ID 848524
- MFR #848524
- EIS #ACL848524
$2,150.87 / Roll
In Stock | Ready to Ship
Min QTY1QTY Increment1more info
The Supreme Mat is a 2-ply dissipative material made from an epichlorohydrin (ECO) elastomer. This unique material provides exceptional chemical and heat resistance without sacrificing static control.With a dissipative upper layer and a conductive base, the Supreme Mat is as comfortable as ESD vinyl and rubber materials, but unlike typical CR and NBR, lasts longer when exposed to chemical cleaning with solvents like isopropyl alcohol
Features
- Top side resistance measures 10e6 - 10e8 ohms
- Bottom side resistance measures less than 5x10e5 ohms
- Electricals are warranted for the lifetime of the mat
- Suitable to use in EPAs following ANSI/ESD S20.20
- Two layers; conductive bottom, dissipative top
- Static decay of .05 seconds
- Deeply embossed surface
- Low outgassing; low VOC
- Available in blue
- Rolls available in lengths of 40' and widths of 24", 30", and 36"
- Pre-cut mats include two 10mm female snaps
- Custom cut sizes available
- Thickness .080" (2mm)
- Made in the USA
- This is an ACL Platinum Product
| Series | Supreme Mat |
Design & Construction
| Color | Royal Blue |
| Material | Elastomer |
Physical Properties
| Thickness | 0.08 Inch |
