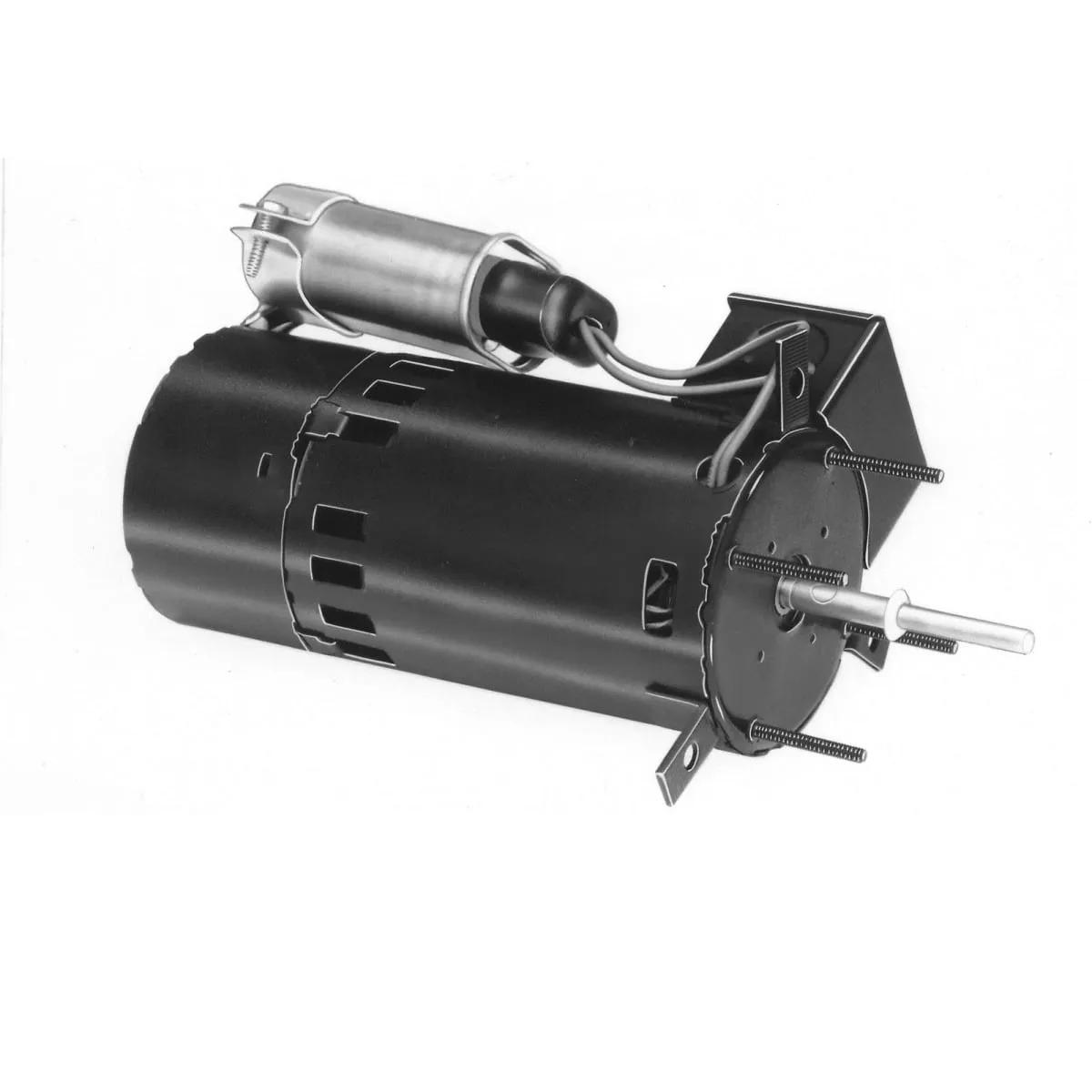

Fasco D459 3.3" Dia Motor, 1/15 HP, 3000 rpm, Open Ventilated
- EIS #MOTD412
$610.45 / Piece
Agotado
Cantidad mínima1QTY Increment1
more info
Fasco D459 3.3 Inch Dia Motor. - Fasco D459 Shaded Pole 3.3 Inch Dia Motor, Ball Bearing, 7 Inch L, Open Ventilated Enclosure, 1.2 - 0.6A Full Load, 1/15 HP, Clockwise Rotation, 0.25 Inch Shaft Dia, 3 Inch Shaft Length, Horizontal Shaft, 3000 rpm, 230/460V.
Features
- 1 speed
- Full load ampere: 1.2 - 0.6A
- Voltage Rating: 230/460V
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
General Information
| Item Name | 3.3 Inch Dia Motor |
| Series | FA230/460VOVSP3.3IDM |
General Features
| Type | Shaded Pole |
Design & Construction
| Bearing Type | Ball |
| Enclosure Type | Open |
| Rotation | Clockwise |
| Shaft Position | Horizontal |
Performance Details
| Speed Rating | 3000 rpm |
Electrical Properties
| Full Load Ampere | 0.6 A |
| HP Rating | 0.06 HP |
| Voltage Rating | 230 V |
Physical Properties
| Dimensions | 7 Inch L |
| Shaft Diameter | 0.25 Inch |
| Shaft Length | 3 Inch |
