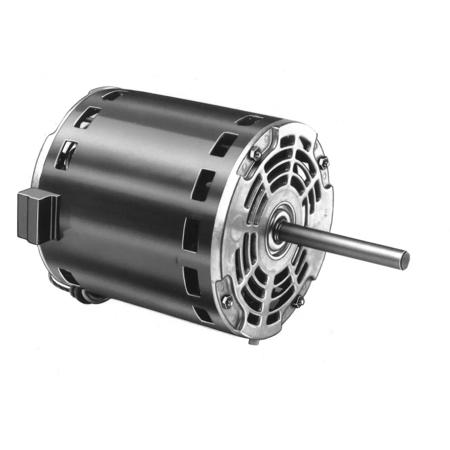

Fasco D1184 3.3" Dia Flue Exhaust And Draft Booster Blower Motor, 1/16 HP, 3450 rpm, Open Ventilated
- EIS #MOTD2871
$951.60 / Piece
Agotado
Cantidad mínima1QTY Increment1
more info
Fasco 460V Open Vented 3.3 Inch Dia Flue Exhaust And Draft Booster Blower Motor with Hall Effect Sensor - Fasco 460V 1 Speed Open Vented 3.3 Inch Dia Flue Exhaust And Draft Booster Blower Motor with Hall Effect Sensor
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
General Information
| Item Name | 3.3 Inch Dia Flue Exhaust and Draft Booster Blower Motor |
| Series | FA460VOV3.3IDFEADBBMHES |
Design & Construction
| Bearing Type | Ball |
| Enclosure Type | Open |
| Rotation | Counter-Clockwise |
| Shaft Position | Horizontal |
| Start Method | Permanent Split Capacitor |
Performance Details
| Speed Rating | 3450 rpm |
Electrical Properties
| Frequency Rating | 60 Hz |
| Full Load Ampere | 0.3 A |
| HP Rating | 0.0625 HP |
| Voltage Rating | 460 V |
Physical Properties
| Dimensions | 4.75 Inch L |
| Shaft Diameter | 0.3125 Inch |
| Shaft Length | 3.33 Inch |
