CHR G569 Glass Tape

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:G569

EIS #:PH22-G569

MFR #:G569

EIS #:PH22-G569

0
0

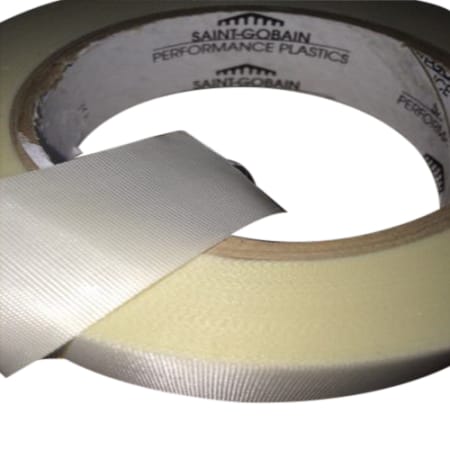

CHR G569 tapes are manufactured from electrical grade fiberglass cloth backing coated with clear pressure sensitive adhesive. Available with or without a liner. The G Series tapes are constructed to offer excellent solvent and flagging resistance. - Tough abrasion resistance and excellent mechanical and electrical properties. The high conformance and strength/weight ratio makes this series a good candidate for oil and motor applications.
Select from the options below
0
0
CHR G569 tapes are manufactured from electrical grade fiberglass cloth backing coated with clear pressure sensitive adhesive. Available with or without a liner. The G Series tapes are constructed to offer excellent solvent and flagging resistance. - Tough abrasion resistance and excellent mechanical and electrical properties. The high conformance and strength/weight ratio makes this series a good candidate for oil and motor applications.

Product Options

Showing 2 out of 2 options
Width
2 Inch
EIS Part #
CHRG569X2
$ / Roll
Width
0.25 Inch
EIS Part #
CHRG569X.25
$ / Roll

Attributes

General Information
Item NameTape
SeriesG569
Design & Construction
Adhesive TypeAcrylic
Backing MaterialGlass Cloth
ColorWhite
Performance Details
Adhesive Strength30 oz/Inch
Tensile Strength150 lb/Inch
Electrical Properties
Dielectric Strength3000 V
Physical Properties
Elongation5%
Length36 Yard
Thickness0.007 Inch
Environmental Condition
Temperature Rating350 °F
ResistsAbrasion, Flagging, Solvent
