Desco Statfree Z2 3-Layer Table Mat Kit

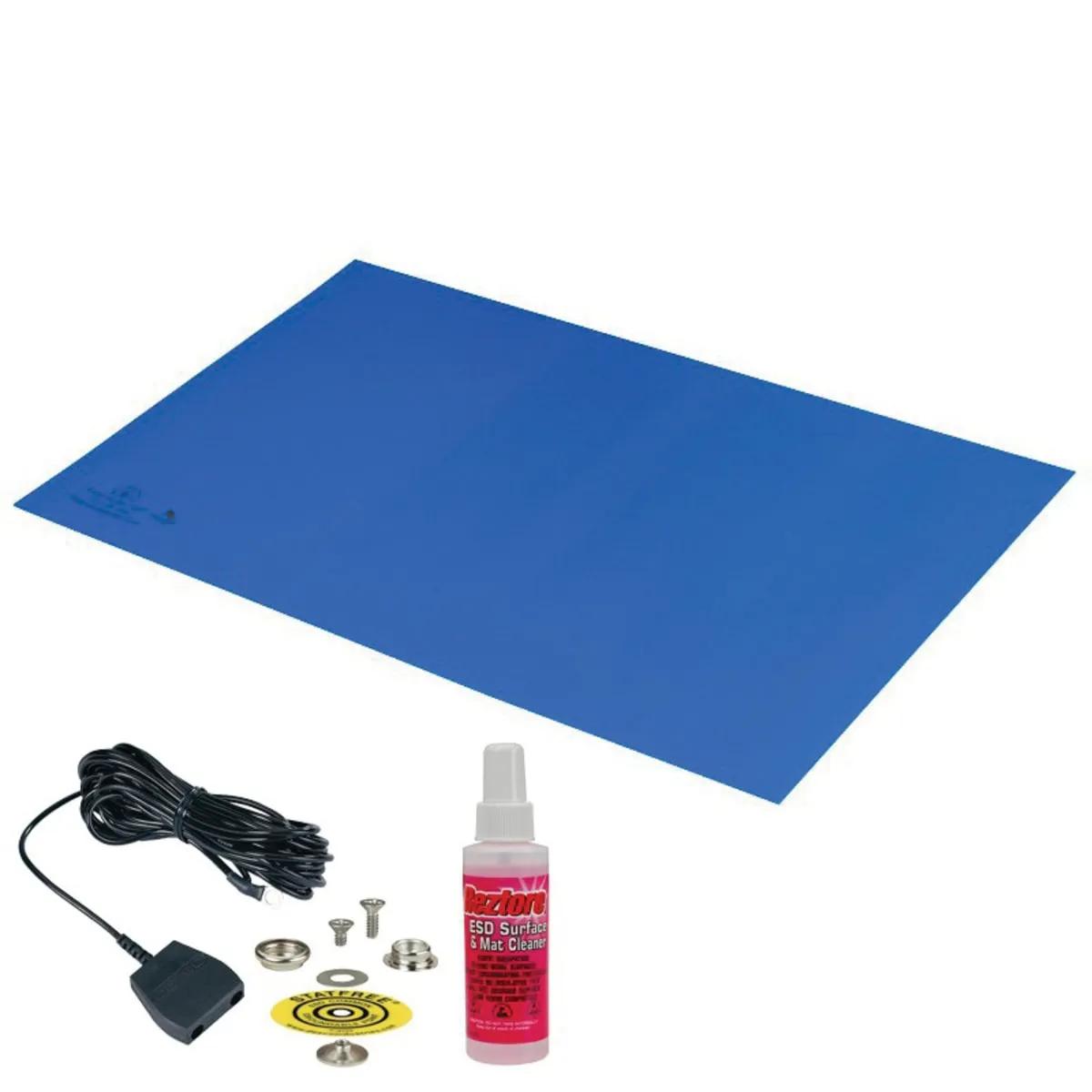

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:4200K

EIS #:PH13-4200K

Series #:4200K

MFR #:4200K

EIS #:PH13-4200K

Series #:4200K

0
0
Desco's Statfree Z2 mat kit is a 0.125 Inch thick, 3-layer, dissipative heat fused vinyl composite material. It is designed to provide a path-to-ground and eliminate static charge generation when used as a worksurface table mat, shelf liner, and cart shelf liner. The surface resistance (1 x 10^6 - < 1 x 10^9 ohm RTT) of the top layer meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. The conductive (< 10^4 ohm RTT) middle layer reduces the resistance to ground (RTG) from the surface layer of the mat to the groundable point ground and allows the mats to be used with ESD workstation continuous monitors. The dissipative (1 x 10^6 - < 1 x 10^9 ohm RTT) cushioned bottom layer provides additional energy absorption for components susceptible to physical shock. - Durable rubber material table mat top kit, dissipative 3-layer vinyl construction. Z2 material is a highly effective 3-layer material. Its durable Statfree vinyl top layer makes it suited for use as an ESD protective bench mat. Its highly conductive middle layer provides a faster discharge path to ground. The cushioned dissipative bottom layer provides excellent protection against physical damage, and makes it easier to pick up small parts. The heat fused vinyl composite resists delamination, and is compatible for use with continuous monitors.
$98.92
 - $117.83
Select from the options below
0
0
Desco's Statfree Z2 mat kit is a 0.125 Inch thick, 3-layer, dissipative heat fused vinyl composite material. It is designed to provide a path-to-ground and eliminate static charge generation when used as a worksurface table mat, shelf liner, and cart shelf liner. The surface resistance (1 x 10^6 - < 1 x 10^9 ohm RTT) of the top layer meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. The conductive (< 10^4 ohm RTT) middle layer reduces the resistance to ground (RTG) from the surface layer of the mat to the groundable point ground and allows the mats to be used with ESD workstation continuous monitors. The dissipative (1 x 10^6 - < 1 x 10^9 ohm RTT) cushioned bottom layer provides additional energy absorption for components susceptible to physical shock. - Durable rubber material table mat top kit, dissipative 3-layer vinyl construction. Z2 material is a highly effective 3-layer material. Its durable Statfree vinyl top layer makes it suited for use as an ESD protective bench mat. Its highly conductive middle layer provides a faster discharge path to ground. The cushioned dissipative bottom layer provides excellent protection against physical damage, and makes it easier to pick up small parts. The heat fused vinyl composite resists delamination, and is compatible for use with continuous monitors.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Color
Blue
Length
48 Inch
EIS Part #
42465-DES
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Color
Blue
Length
36 Inch
EIS Part #
42460-DES
$ / each

Attributes

General Information
Item NameTable Mat Kit
Trade NameStatfree® Z2™
Series4200K
General Features
Type3-Layer
StandardsRoHS Compliant, ANSI/ESD S20.20, S4.1
Design & Construction
MaterialVinyl
Physical Properties
Width24 Inch
Thickness0.125 Inch
Surface PatternLight Embossed
Environmental Condition
ResistsChemical
Supporting Information
For Use WithESD Workstation Continuous Monitors
Includes(1) Statfree Z2™ Benchmat, Size as Specified, (1) 14213, Common Point Kit with Snap, (1) Sample of Reztore Mat and Surface Cleaner
