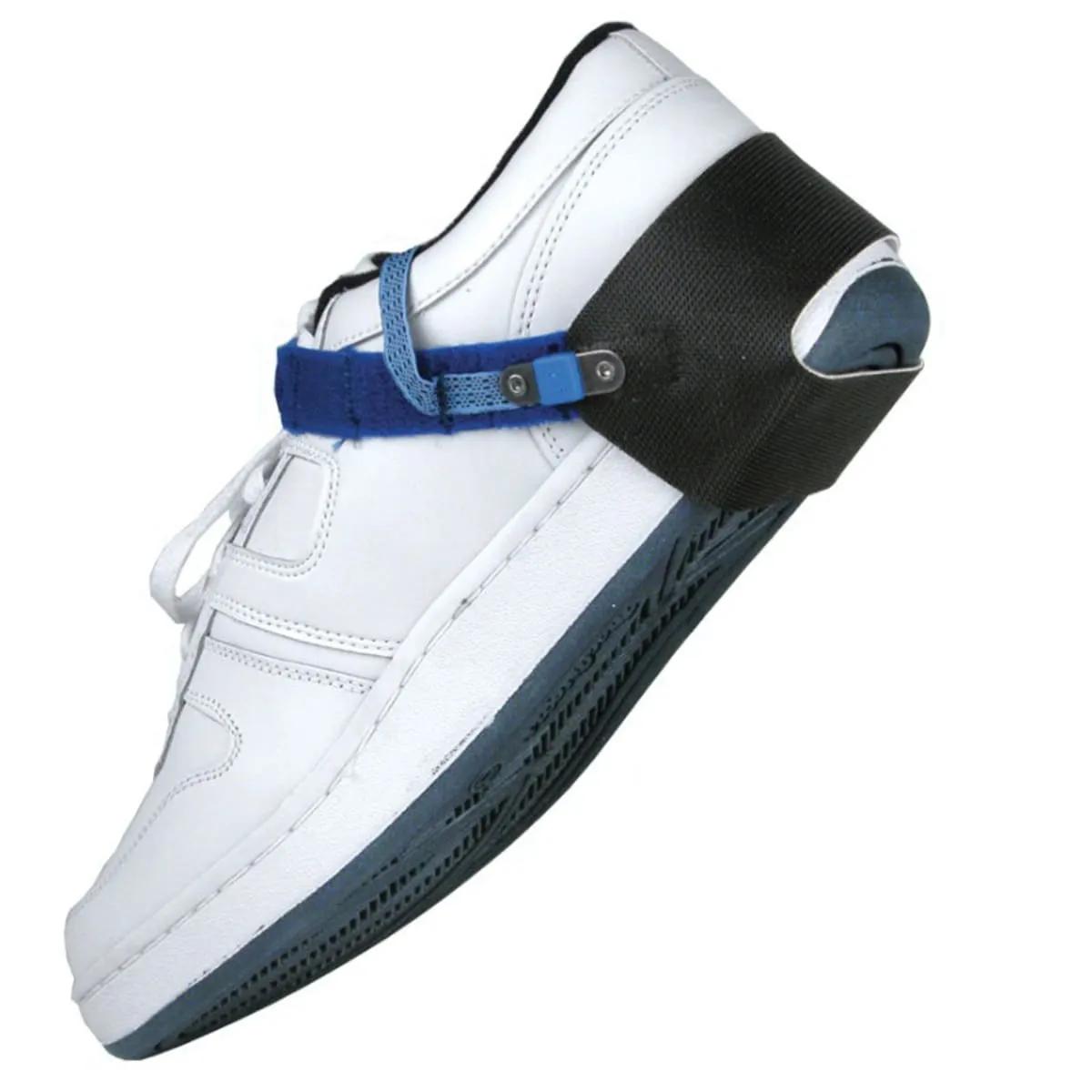

Desco Lined D-Ring Foot Heel Grounder

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:0759

EIS #:PH13-0759

Series #:0759

MFR #:0759

EIS #:PH13-0759

Series #:0759

0
0
The 0759 premium series heel grounder provides effective ESD protection. The cup is made from a black and non-marring rubber with inner tear resistant conductive scrim. The rubber is antistatic, low tribocharging, and dissipative. It removes charges when in contact with ESD protected floors. This foot grounder meets the less than 3.5 x 10^6 ohm requirement of ANSI ESD S20.20. This unit includes either a one or two megohm molded external resistor, a conductive tab with carbon suffused fibers, and a D-ring fastening system. The product has been tested to ESD STM97.2 - floor materials and footwear voltage measurement in combination with a person. It is a suitable ESD footwear component in flooring - footwear system when used as the primary grounding method (< 3.5 x 10^7 ohm per ESD STM 97.1 floor materials and footwear-resistance measurement in combination with a person). - D-ring fastening system, size adjustable material expands to fit most shoe sizes comfortably and flex during walking. Extra-wide contact area. Additional surface area allows for a better path to ground. Tear resistant rubber with inner scrim. Reinforced material prevents tearing - increasing the service life of foot grounder. 30 Inch long, 8 conductive strand nylon polyester grounding tab additional conductive material provides reliable connection with operator's sweat-layer. Non-marring interior layer will not mar operator's shoes. Date coded. Provides lot traceability to ensure quality control and tracking information.
$13.46
 - $18.08
Select from the options below
0
0
The 0759 premium series heel grounder provides effective ESD protection. The cup is made from a black and non-marring rubber with inner tear resistant conductive scrim. The rubber is antistatic, low tribocharging, and dissipative. It removes charges when in contact with ESD protected floors. This foot grounder meets the less than 3.5 x 10^6 ohm requirement of ANSI ESD S20.20. This unit includes either a one or two megohm molded external resistor, a conductive tab with carbon suffused fibers, and a D-ring fastening system. The product has been tested to ESD STM97.2 - floor materials and footwear voltage measurement in combination with a person. It is a suitable ESD footwear component in flooring - footwear system when used as the primary grounding method (< 3.5 x 10^7 ohm per ESD STM 97.1 floor materials and footwear-resistance measurement in combination with a person). - D-ring fastening system, size adjustable material expands to fit most shoe sizes comfortably and flex during walking. Extra-wide contact area. Additional surface area allows for a better path to ground. Tear resistant rubber with inner scrim. Reinforced material prevents tearing - increasing the service life of foot grounder. 30 Inch long, 8 conductive strand nylon polyester grounding tab additional conductive material provides reliable connection with operator's sweat-layer. Non-marring interior layer will not mar operator's shoes. Date coded. Provides lot traceability to ensure quality control and tracking information.

Product Options

Showing 2 out of 2 options
Resistor
2 Mohm
EIS Part #
07593-DES
$ / each
Resistor
1 Mohm
EIS Part #
07590-DES
$ / each

Attributes

General Information
Item NameFoot Heel Grounder
Series0759
General Features
TypeLined
StandardsESD SP9.2, TR53, ANSI/ESD S20.20, ESD STM 97.1, UL Listed
Design & Construction
ColorBlack/Blue
MaterialNylon Polyester Tab
Closure TypeD-Ring
Technical Details
Rubber Exterior0.06 Inch T x 1.5 Inch W
Physical Properties
Length30 Inch
Width0.375 Inch
