Requires Quote / Piece
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like

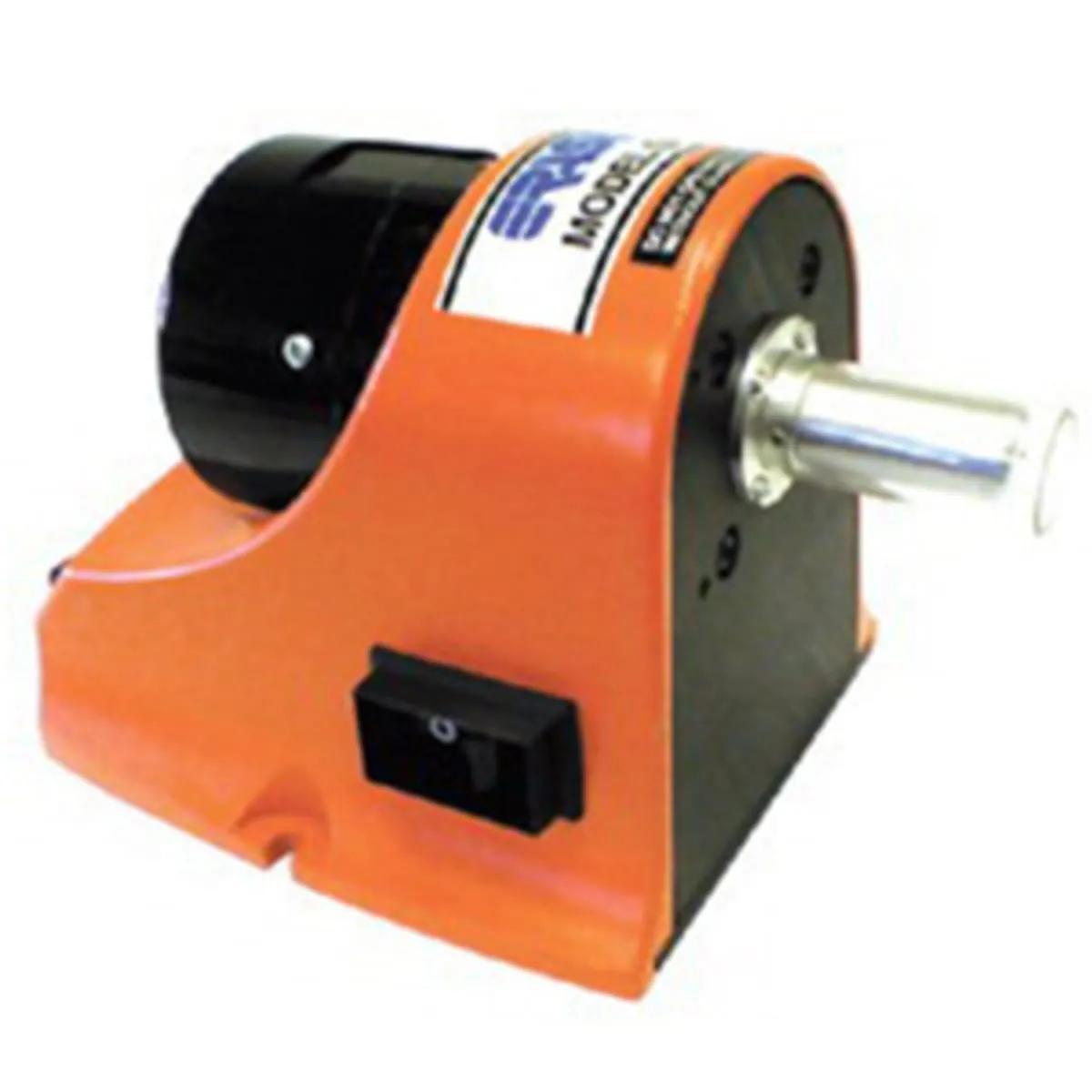

Eraser's model G10S bench wire twister can be used for various twisting needs. The G10S can twist the ends of pre-stripped stranded wires or tighten the twist on already twisted wire. It can also twist together the ends of two or more solid conductor wires, and twist unwrapped shields on coaxial cable. A reversible motor allows this unit to twist in either direction. - The G10S is supplied with a set of three twist length spacers to vary the twist length, depending on the application need. Twisting inserts are required for use and are sold separately, and can be selected based on the wire size.
Applications
- For Twisting 24 - 18 AWG (IR8228 Twisting Inserts), 26 - 22 AWG (IR8227 Twisting Inserts), 18 - 12 AWG (IR8229 Twisting Inserts) Wires
General Information
| Item Name | Wire Twister |
| Series | G10S |
General Features
| Net Weight | 8 lb |
Physical Properties
| Dimensions | 11 Inch x 6 Inch x 7.25 Inch |
| Twist Length | Up to 1 Inch (Dependent on Spacers Used) |
Documents
No Documents Found
