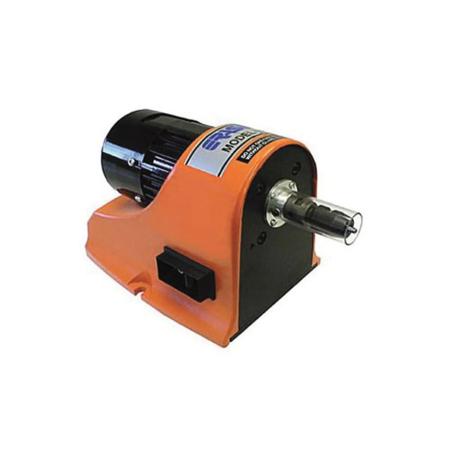

Eraser L2S Bench Wire Stripper, 29 - 8 AWG, 11" L x 6" W x 7-1/4" H, MFR ID AR2051
- MFR #:AR2051
- EIS #:ERASERAR2051
- MFR #:AR2051
- EIS #:ERASERAR2051
Available to Order
Min Qty:1
|Qty Increment:1

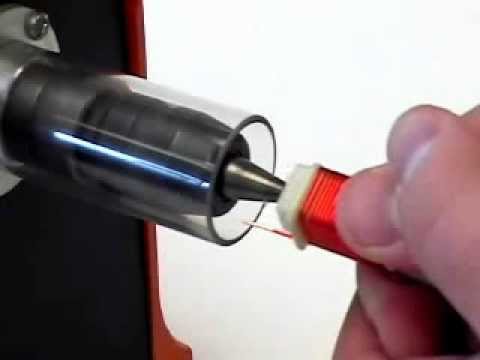

Eraser's model L2S bench wire stripper will remove film insulations including enamel, formvar, ML, armored polythermaleze, epoxy and more from round wires. The L2S can also be used for other applications such as, deflashing wires, cleaning legs of electronic components and cleaning pins on transformers and coils. - A high-speed rotating insert strips insulation from the surface of the wire. Close-up stripping is possible flush to a coil body or bobbin. The L2S also cleans round lead legs of electronic components and removes oxidation, flashing, epoxy and even contaminated solder.
$1,788.75 / Piece
Min Qty:1
|Qty Increment:1
Eraser's model L2S bench wire stripper will remove film insulations including enamel, formvar, ML, armored polythermaleze, epoxy and more from round wires. The L2S can also be used for other applications such as, deflashing wires, cleaning legs of electronic components and cleaning pins on transformers and coils. - A high-speed rotating insert strips insulation from the surface of the wire. Close-up stripping is possible flush to a coil body or bobbin. The L2S also cleans round lead legs of electronic components and removes oxidation, flashing, epoxy and even contaminated solder.
- Attributes
- Features
- Documents
Attributes
General Information
Item NameWire Stripper
SeriesL2S
General Features
Net Weight11 lb
TypeBench
Design & Construction
Cutting Capacity29 AWG
Power Source120V 60 Hz
Physical Properties
Height7.25 Inch
Length11 Inch
Width6 Inch
Features
- 3-1/2 Inch maximum strip length, 1-5/16 Inch strip length with stop
- Component lead diameters of 0.0112 - 0.114 Inch
- Cleaning length of up to 2-1/2 Inch
- Decibel rating of 58 dB
- Cutting Capacity: 29 - 8 AWG
