- MFR #:3PS-1000-2-WT
- EIS #:BRAPS10002WT
- UPC #:662820326069
- MFR #:3PS-1000-2-WT
- EIS #:BRAPS10002WT
- UPC #:662820326069
Available to Order
Min Qty:1
|Qty Increment:1
Pack:250/Pack

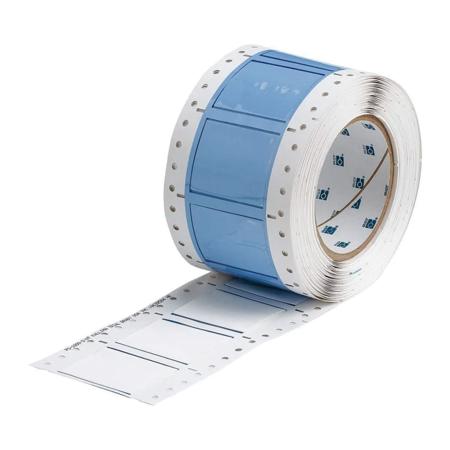

Brady's PermaSleeve heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215 and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used on with Brady's sleeve and Datab printers, as well as thermal transfer printers. PermaSleeve PS polyolefin wire marking sleeves (B-342) 1-sided, 3:1 shrink ratio, heat shrinkable sleeve fits snuggly around wire for identification and protection. These fade resistant, smudge-proof sleeves can be used on with Brady's sleeve and Datab printers, as well as thermal transfer printers. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties.
$973.58 / Roll
Pack: 250/Pack
Min Qty:1
|Qty Increment:1
Pack:250/Pack
Brady's PermaSleeve heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215 and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used on with Brady's sleeve and Datab printers, as well as thermal transfer printers. PermaSleeve PS polyolefin wire marking sleeves (B-342) 1-sided, 3:1 shrink ratio, heat shrinkable sleeve fits snuggly around wire for identification and protection. These fade resistant, smudge-proof sleeves can be used on with Brady's sleeve and Datab printers, as well as thermal transfer printers. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameWire Marker Sleeve
SeriesB-342-PS
General Features
Shelf Life60 Months
Design & Construction
AdhesivePermanent
Legend/Background ColorWhite
MaterialPolyolefin
Print TechnologyDot Matrix and Thermal Transfer
Performance Details
Shrink Ratio2:1
Physical Properties
Diameter1 Inch
Length1.66 Inch
Thickness0.036 Inch
Width2 Inch
Environmental Condition
Temperature Rating-55 to 135 °C
Features
- Chemical, corrosion, humidity, smear, UV, weather resistant's
- Single-side printable
- Chemical, corrosion, humidity, smear, UV, weather resistant's
- Single-side printable
- 2 Inch vertical repeat
- For use with Brady 300X-Plus II, Brady 360X-Plus II, Brady 600X-Plus II, thermal transfer printers, sleeve and datab Series, IP300, IP600, BBP81
- Wire Size: 2 - 0.95 Inch
- Temperature Rating: -55 to 135 °C
Applications
- For Wire and Cable Marking, Panel Identification
