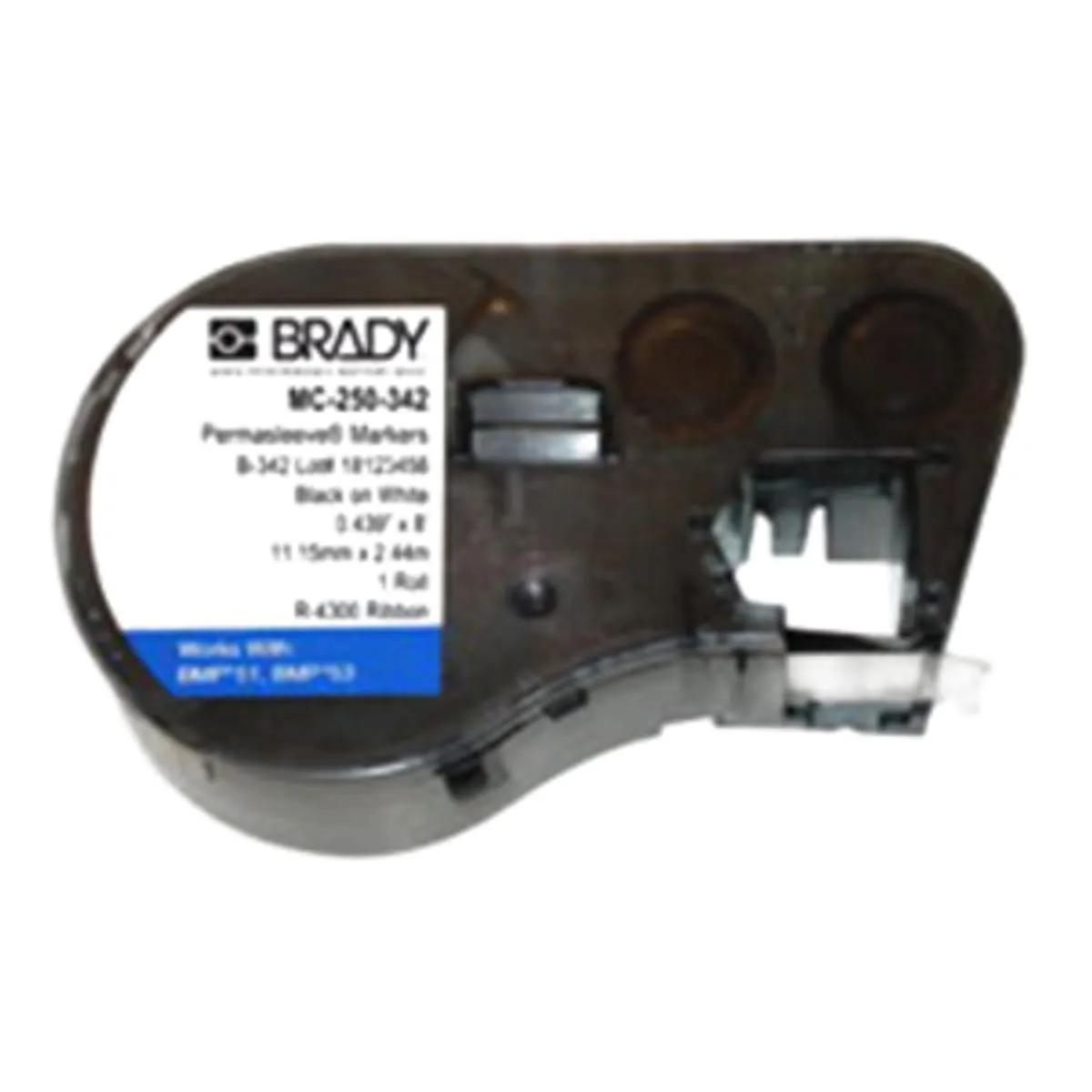

Brady MC-250-342 PermaSleeve® Wire Marker Sleeve, 7 ft, Black/White, 1/Cartridge
- MFR #MC-250-342
- EIS #BRAMC250342
- UPC #00075447308288
$122.06 / Roll
Pack: 1/Cartridge
Available to Order
Min QTY1QTY Increment1
more info
Pack1/CartridgeThe Brady's continuous thermal transfer printer label cartridge comes packaged 1 cartridge per pack and is used with BMP51, BMP53. These items come in a variety of shapes and sizes to accommodate many situations. Supports thermal transfer printing. This particular label does not have an adhesive material. These heat-shrink sleeves are the ultimate in marker durability, permanence and aesthetic appearance. B342 PermaSleeve markers meet the material and physical property requirements of SAE AMSDTL23053/5C (Class 1) for Insulation Sleeving and SAE AS81531 for Marking of Electrical Insulating Materials when printed with R6600, R4300, R4502S, R6700 Series thermal transfer ribbons and R5000 Series dot matrix. Fast shrink rate saves time and costs during installation.
Features
- Chemical, corrosion, UV, weather, humidity, smear resistant's
- Heat shrink tubing
- PermaSleeve wire markers are available as individual die-cut markers or continuous cut to length tubing
- Fits snugly around your wire
- For use with BMP41, BMP51, BMP53 label printers
- Wire Size: 16 - 8 AWG
- Temperature Rating: -55 to 135 °C
Applications
- For Wire Identification and Insulation Purposes
General Information
| Item Name | Wire Marker Sleeve |
| Trade Name | PermaSleeve® |
| Series | B-342-MC-16-8 |
General Features
| Shelf Life | 60 Months |
Design & Construction
| Legend/Background Color | Black/White |
| Material | Polyolefin |
Performance Details
| Shrink Ratio | 2:1 |
Physical Properties
| Diameter | 0.439 Inch |
| Length | 7 ft |
Environmental Condition
| Temperature Rating | -55 to 135 °C |
