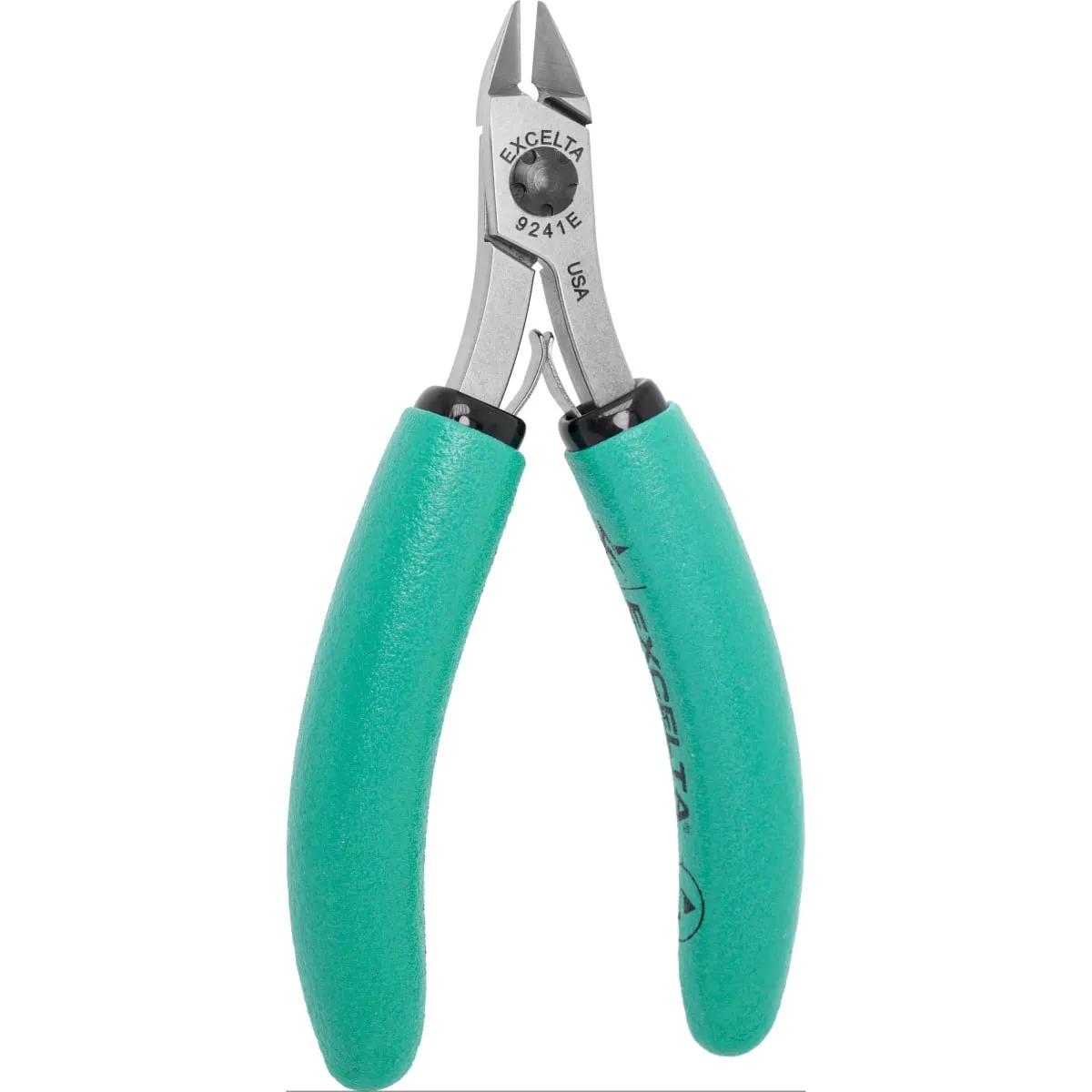

Excelta 9241E Cutters - Medium Oval Head - Optimum Flush
- MFR #9241E
- EIS #9241E-EXC
- UPC #00662847009839
$103.42 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like
Products You May Also Like
The 9241E star Lazer Line® medium oval optimum flush cutter has a cutting capacity of .005" - .040" soft wire. It is made of carbon tool steel with induction hardened cutting blades to RHC 63-65. The CNC machining allows the joint surfaces to be perfect to allow for long life. The dual leaf springs provide smooth action. The Anti-Static grips are soft cushioned foam and have a surface resistivity of 10¹⁰ ohms/sq.
Features
- Designed for cutting .040" soft wire leaving a small 'pinch' on the wire
Applications
Designed for cutting .040" soft wire leaving a small 'pinch' on the wire
General Information
| Item Name | Side Cutter |
| Trade Name | Excelta |
| Series | TealShield™/Lazer Line® |
General Features
| Net Weight | 3 oz |
Design & Construction
| Angle | 14.25 degrees |
| Cutting Capacity | 0.005 to 0.040 inch |
| Cut Type | Optimum Flush |
| Handle Type | Standard Cushioned Grips |
| Jaw Type | Medium Oval |
| Material | Carbon |
| Shape | Round Head |
| Tip Size | 0.003 x 0.005 inch |
| Wire Type | PH1813112104 - Wire Cutters |
Performance Details
| Precision Class | 4 Star |
Electrical Properties
| Resistance | 10¹⁰ ohms/sq |
Physical Properties
| Jaw Length | 0.41 Inch |
| Jaw Width | 0.34 Inch |
| Length | 4.5 Inch |
| Cutting Edge Length | 0.31 inch |
| Overall Length | 4.5 inch |
Supporting Information
| OEM ID | 9241E-EXC |
