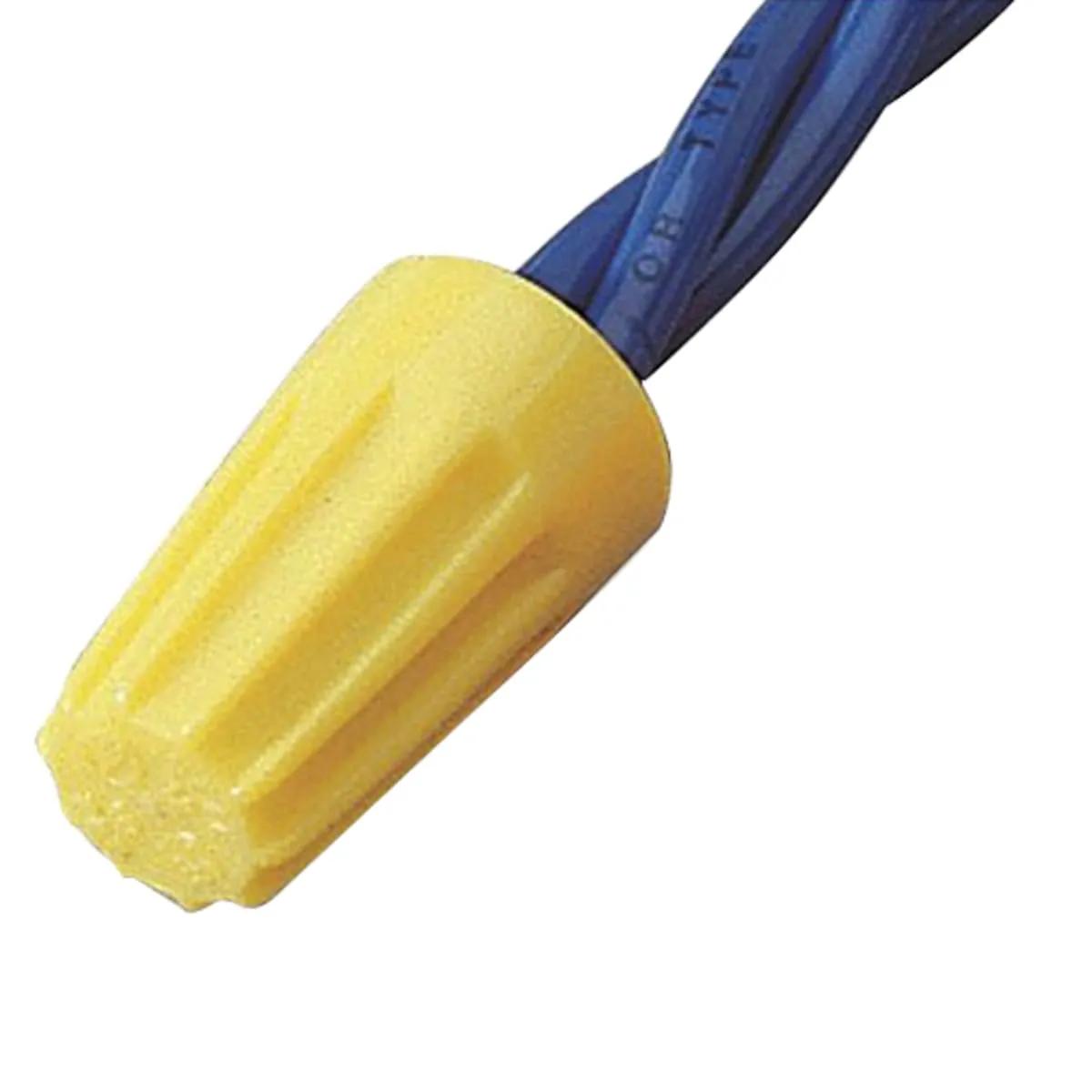

Ideal 30-074 Wire-Nut® Wire Connector, (2) 18 AWG, Yellow, 100/Box
- MFR #30-074
- EIS #IDEAL30074
- Series #70B
- UPC #783250300747
$342.98 / 1000Piece
Pack: 100/Box
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack100/Box
| Stock Status | ||||
|---|---|---|---|---|
 | 18 - 12 AWG | Yellow | $ / Piece Pack: 100/Box more info | |
 | 18 - 6 AWG | Red | $ / Piece Pack: 100/Box more info |
Twist-on connector provides fast installation, no pretwisting required. A sturdy grip gives leverage for easy application by hand or with tool. No pre-twisting required - positive grip design provides fast, easy installation. - Features self-extinguish material and hard flame-retardant shell rated for 105 °C. Fixed, square-wire spring creates its own threads - maintains a secure positive grip that will not relax over time.
Features
- Deep skirt helps protect against flash-over
- Reusable for easy circuit changes and additions
- Tough, UL94V-2 flame-retardant shell rated at 105 °C
- Yellow Wire-Nut wire connectors can easily be applied using the Twist-a-Nut screwdriver
Applications
- For General Purpose
General Information
| Item Name | Wire Connector |
| Trade Name | Wire-Nut® |
| Series | 70B |
General Features
| Standards | UL 486C Listed, CSA Certified, Federal Specification W-S-610E |
Design & Construction
| Color | Yellow |
| Connection Type | Twist On |
| Insulation Material | Thermoplastic |
Performance Details
| Operating Temperature | 105 °C |
Electrical Properties
| Voltage Rating | 600 V |
Physical Properties
| Length | 0.95 Inch |
