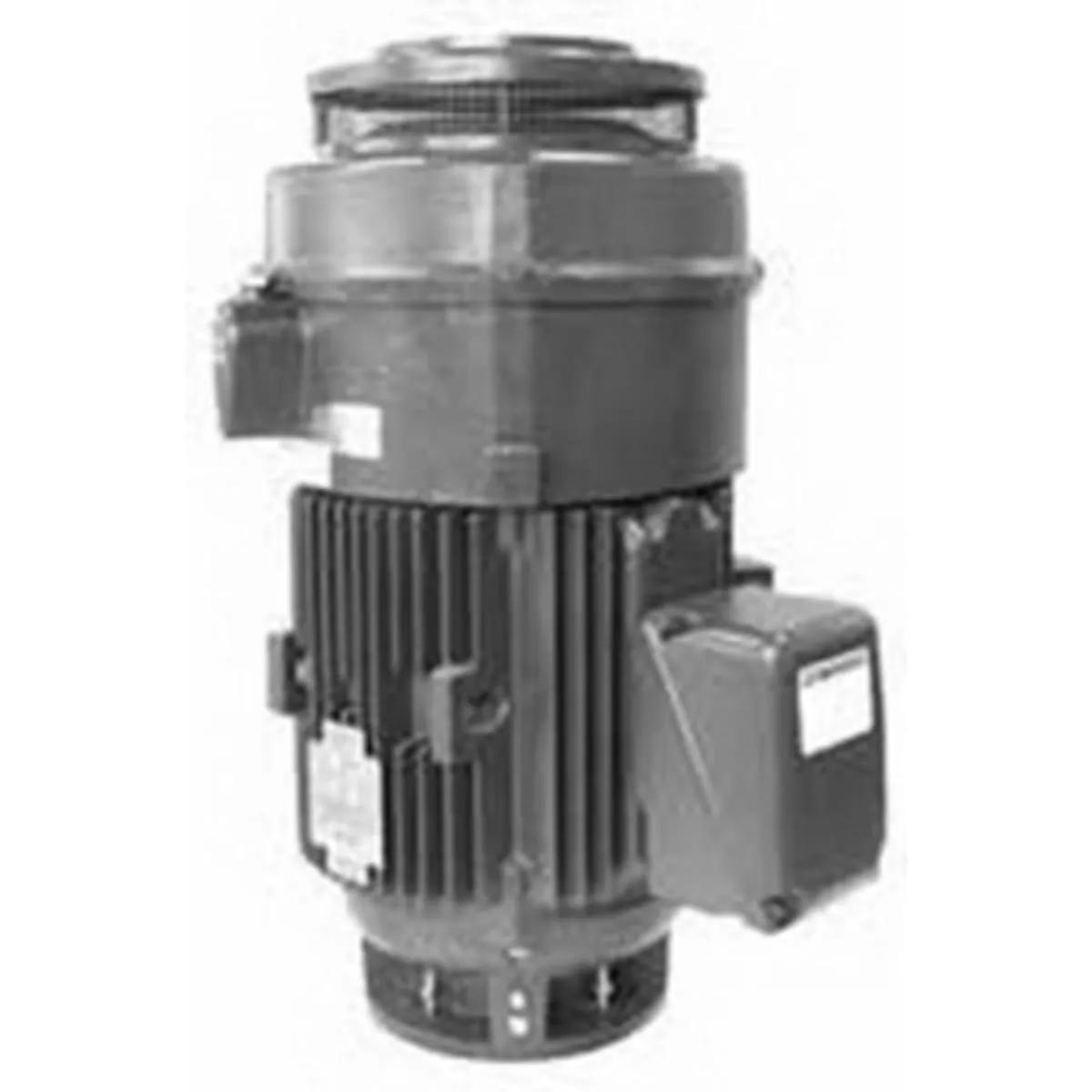

GE V899 Vertical Hollow Shaft Motor, 5 HP, 1800 rpm, 230/460V, L213TP10 Frame, TEFC, Vertical P-Base Mount

  • MFR #GE-ES-230/460-VPB-TEFC-VHSM
  • EIS #V899
$3,904.04 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

GE 460V Vertical P-Base Mount Totally Enclosed Fan-Cooled Enclosure Vertical Hollow Shaft Motor. Ball style non-reverse ratchet, Gegard 2400V inverter duty insulation, 115V space heater, High and extra high thrust, NC winding thermostats (125 HP and above) - GE Energy Saver® 460V Vertical P-Base Mount Totally Enclosed Fan-Cooled Enclosure Vertical Hollow Shaft Motor

General Information

Item NameVertical Hollow Shaft Motor
Trade NameEnergy Saver®

General Features

Net Weight200 lb

Design & Construction

Frame TypeL213TP10
KVA CodeJ
Bearing TypeHigh Thrust
Enclosure TypeTotally Enclosed Fan-Cooled
Insulation TypeClass F
Mounting TypeVertical P-Base
Shaft PositionVertical

Performance Details

Speed Rating1800 rpm
Full Load Efficiency89.5%
1/2 Load Efficiency89.5%
Maximum Down Thrust2071 lb
3/4 Load Efficiency90.4%

Electrical Properties

Full Load Ampere13.2 A
Full Load Power Factor79.5%
1/2 Load Power Factor63.5%
HP Rating5 HP
3/4 Load Power Factor74.3%
Frequency Rating60 Hz
Service Factor1.15
Voltage Rating460 V

Physical Properties

Dimensions23.7 Inch L x 14.17 Inch W
Frame Size213
Number of Poles4
Weight200 lb

Environmental Condition

Temperature Rating40 °C
