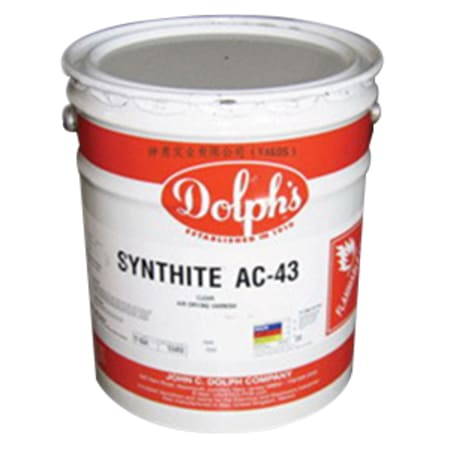

Von Roll/John C Dolph Synthite® AC-43 Air-Drying Varnish
MFR #:Synthite® AC-43
EIS #:PH21-Synthite AC-43
MFR #:Synthite® AC-43
EIS #:PH21-Synthite AC-43
AC-43 is a high-temperature, fast cure, air dry, modified polyester varnish. Perfect for dip or spray applications where a clean clear protective coating is needed over various electric apparatus. - Quick drying. Toughness and flexibility. Good penetration. Heat resistant. Fast cure cycles. Solderable. Acid and alkali resistant.
$79.02
- $106.51
Select from the options below
AC-43 is a high-temperature, fast cure, air dry, modified polyester varnish. Perfect for dip or spray applications where a clean clear protective coating is needed over various electric apparatus. - Quick drying. Toughness and flexibility. Good penetration. Heat resistant. Fast cure cycles. Solderable. Acid and alkali resistant.
Product Options
Showing 3 out of 3 options
 | Container Size: 1 gal | EIS Part #: DOLAC43G | $ / US gallon | |
| Container Size: 5 gal | EIS Part #: DOLAC435G | $ / US gallon | |
| Container Size: 55 gal | EIS Part #: DOLAC4355G | $ / US gallon |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameVarnish
Trade NameSynthite®
SeriesSynthite® AC-43
General Features
Shelf Life12 Months
TypeAir-Drying
Design & Construction
ColorClear
Cure TypeRoom Temperature
FormLiquid
Performance Details
Dry Time1 hr
Technical Details
Flash Point54 °F
Chemical Properties
Viscosity20 cP
VOC4.3 lb/gal
Electrical Properties
Dielectric Strength2000 V/Mil
Physical Properties
Odor/ScentAromatic
Environmental Condition
Temperature Rating180 °C
Features
- Dielectric Strength: 2000 V/Mil (Dry), 1200 V/Mil (Wet)
- Viscosity: 20 - 70 CP at 25 °C
- Viscosity: 20 - 70 cP
Applications
- For Stator Windings, Coils, Transformers, Printed Circuit Boards, Resistors, Capacitors
