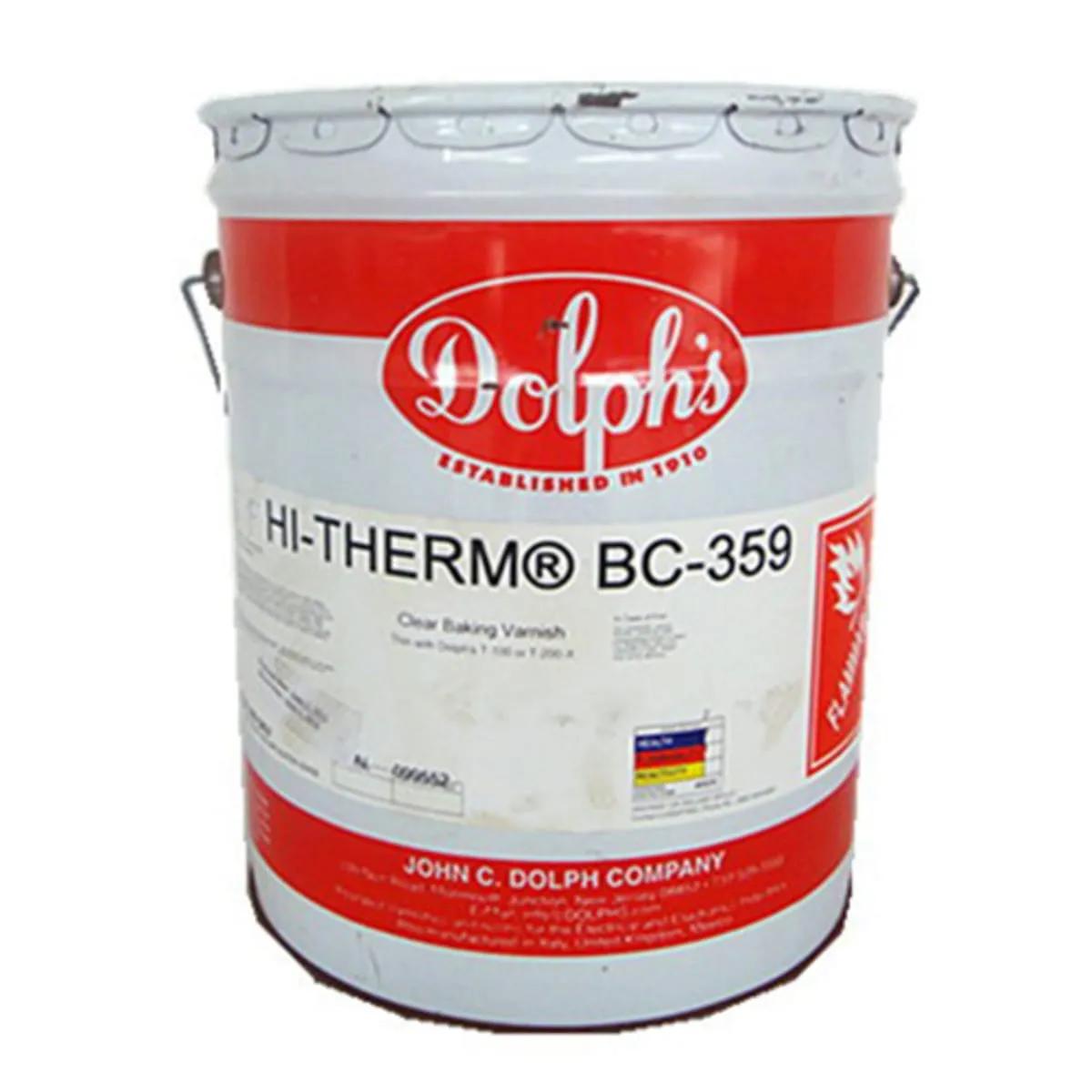

Von Roll/John C Dolph Hi-Therm® BC-359 Baking Varnish
- MFR #Hi-Therm® BC-359
- EIS #PH21-Hi-Therm BC-359
$93.61 - $133.73
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 1 gal | $ / US gallon | |
| 5 gal | $ / US gallon | |
| 55 gal | $ / US gallon |
Fast curing. Low temperature cure. Well suited for conveyorized systems. Excellent abrasion and chemical resistance. Solderable prevents lead wire embrittlement. - Superior moisture resistance - no loss of dielectric strength after 24 hours humidity conditioning.
Features
- Fast curing
- Low temperature cure
- Superior moisture resistance - no loss of dielectric strength after 24 hours humidity conditioning
- Well suited for conveyorized systems
- Excellent abrasion and chemical resistance
- Solderable
- Prevents lead wire embrittlement
- Dielectric Strength: 3000 V/Mil (Dry), 3000 V/Mil (Wet)
- Viscosity: 180 - 340 CP at 25 °C
- Viscosity: 180 - 340 cP
Applications
- For Coils, Chokes, Relays, Motors, Printed Circuit Boards, Transformers, Armatures, Generators, Random Wound Devices, Form Wound Coils, Stators, Solenoids, for Motor Repair Shops,
General Information
| Item Name | Varnish |
| Trade Name | Hi-Therm® |
| Series | Hi-Therm® BC-359 |
General Features
| Shelf Life | 12 Months (Bulk), 18 Months (Spray) |
| Type | Baking |
Design & Construction
| Color | Clear |
| Cure Type | Oven Cure |
Performance Details
| Full Cure Time | 0.5 - 10 hr at 230 to 325 °F |
Technical Details
| Flash Point | 60 °F |
Chemical Properties
| Viscosity | 180 cP |
| VOC | 4.4 lb/gal |
Electrical Properties
| Dielectric Strength | 3000 V/mil |
Environmental Condition
| Temperature Rating | 180 °C |
