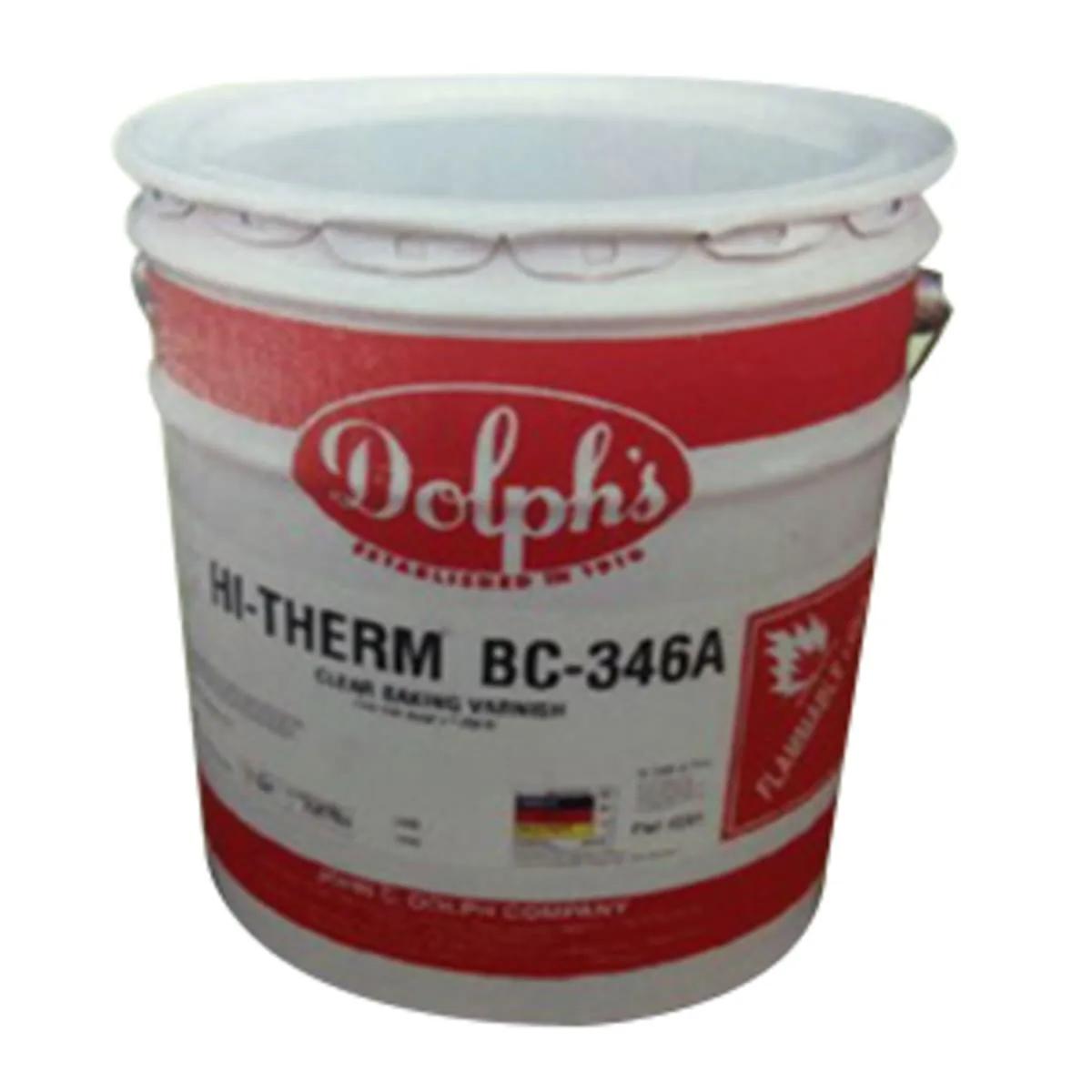

Von Roll/John C Dolph Hi-Therm® BC-346-A Baking Varnish
- MFR #:Hi-Therm® BC-346-A
- EIS #:PH21-Hi-Therm BC-346-A
- MFR #:Hi-Therm® BC-346-A
- EIS #:PH21-Hi-Therm BC-346-A
HI-THERM BC-346-A is a specially formulated, high-temperature varnish, which can be used in a wide variety of dip and bake applications. - Typical applications include transformers, stators, form wound coils, random wound coils, armatures and relays.
$86.77
- $107.68
Select from the options below
HI-THERM BC-346-A is a specially formulated, high-temperature varnish, which can be used in a wide variety of dip and bake applications. - Typical applications include transformers, stators, form wound coils, random wound coils, armatures and relays.
Product Options
Showing 3 out of 3 options
 | Container Size: 1 gal | EIS Part #: DOLBC346AG | $ / US gallon | |
| Container Size: 5 gal | EIS Part #: DOLBC346A5G | $ / US gallon | |
| Container Size: 55 gal | EIS Part #: DOLBC346A55G | $ / US gallon |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameVarnish
Trade NameHi-Therm®
SeriesHi-Therm® BC-346-A
General Features
Shelf Life12 Months
TypeBaking
Design & Construction
ColorClear
Cure TypeOven Cure
Technical Details
Flash Point54 °F
Chemical Properties
Viscosity150 cP
VOC3.8 lb/gal
Electrical Properties
Dielectric Strength4000 V/mil
Environmental Condition
Temperature Rating180 °C
Features
- High-temperature
- Excellent flexibility
- Excellent adhesion
- High film build
- Superior wetting properties
- Dielectric Strength: 4000 V/Mil (Dry), 2900 V/Mil (Wet)
- Viscosity: 150 - 320 CP at 25 °C
- Viscosity: 150 - 320 cP
Applications
- For Transformers, Stators, Form Wound Coils, Random Wound Coils, Armatures, Relay, Can be Used in a Wide Range of Dip and Bake Applications
