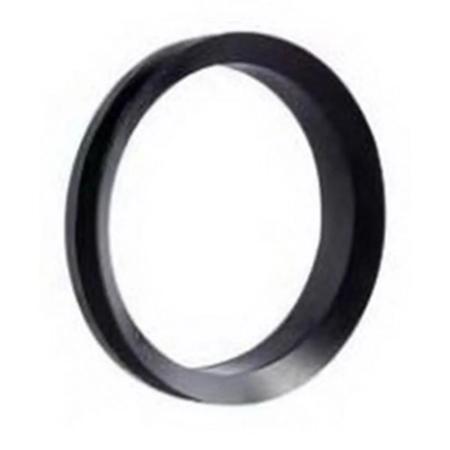

Leeson V-22S V-Ring Shaft Seal, 20 mm ID
- MFR #:006280.02
- EIS #:006280.02
- Series #:Leeson-V-Ring Shaft Seal
- MFR #:006280.02
- EIS #:006280.02
- Series #:Leeson-V-Ring Shaft Seal
Available to Order
Min Qty:1
|Qty Increment:1
Leeson Electric V-ring type S with bevel back serves as a pressure less, axial rod seal which is clamped on a shaft. The flexible sealing lip seals a counter face at a right angle to the shaft, preventing dirt, dust and splash to enter the construction. - The ERIKS V-ring must be mounted to the counter face, respecting a recommended distance so the sealing lip gets the right tension. Low friction and therefore lower power losses related to the application of oil seals.
$183.87 / 100Piece
Min Qty:1
|Qty Increment:1
Leeson Electric V-ring type S with bevel back serves as a pressure less, axial rod seal which is clamped on a shaft. The flexible sealing lip seals a counter face at a right angle to the shaft, preventing dirt, dust and splash to enter the construction. - The ERIKS V-ring must be mounted to the counter face, respecting a recommended distance so the sealing lip gets the right tension. Low friction and therefore lower power losses related to the application of oil seals.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameV-Ring Shaft Seal
SeriesLeeson-V-Ring Shaft Seal
Design & Construction
ColorBlack
MaterialFluoro Rubber, NBR Compound
Physical Properties
Inside Diameter20 mm
Environmental Condition
Temperature Rating200 °C
Features
- Long lifetime
- Simple construction, no seal housing is required
- The shafts do not need a special surface treatment
- Simple mounting
- No wear of the shaft
- Dual function as a seal and as a flinger through which possible dirt and liquids are thrown away
- The flexible lip is unlikely to become damaged during storage and assembly
- An ERIKS V-ring is applicable for a wide range of shaft diameters, with 85 sizes you have access to an assortment of ERIKS V-rings for shaft sizes from 3 till 2000 mm (1/8 to 80 Inch)
- Suitable for high rpm
- Misalignment of the shaft has no negative effect on the functioning of the V-ring
- 7.9 mm size
Applications
- Used As A Pressure less Sealing Preventing Dirt, Water, Oil Splash And Dust To Enter The System
