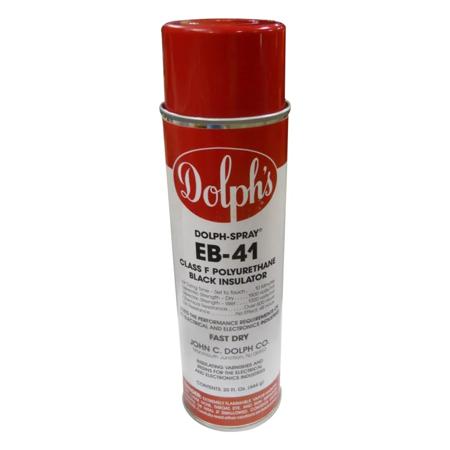

Von Roll/John C Dolph Synthite® Dolph-Spray® EB-41 Air-Drying Urethane Varnish
MFR #:Synthite® Dolph-Spray® EB-41
EIS #:PH21-Synthite Dolph-Spray EB-41
MFR #:Synthite® Dolph-Spray® EB-41
EIS #:PH21-Synthite Dolph-Spray EB-41
Von Roll/John C Dolph Synthite® Dolph-Spray® EB-41 Air-Drying Urethane Varnish, Room Temperature Cure Type, 1800 V/Mil (Dry), 1200 V/Mil (Wet) Dielectric Strength, 10 - 30 min Dry Time, 81 °F Flash Point, 10 - 30 min At 77 °F Full Cure Time, 155 °C Temperature Rating, 200 - 400 CP At 25 °C Viscosity, 4.4 lb/gal VOC. - EB-41 is a high-temperature, fast cure, air dry, polyurethane varnish, and is an excellent insulator coating for all electrical and electronic parts. Synthite® EB-41 is also available in aerosol as Dolph-Spray® EB-41.
$17.98
- $181.01
Select from the options below
Von Roll/John C Dolph Synthite® Dolph-Spray® EB-41 Air-Drying Urethane Varnish, Room Temperature Cure Type, 1800 V/Mil (Dry), 1200 V/Mil (Wet) Dielectric Strength, 10 - 30 min Dry Time, 81 °F Flash Point, 10 - 30 min At 77 °F Full Cure Time, 155 °C Temperature Rating, 200 - 400 CP At 25 °C Viscosity, 4.4 lb/gal VOC. - EB-41 is a high-temperature, fast cure, air dry, polyurethane varnish, and is an excellent insulator coating for all electrical and electronic parts. Synthite® EB-41 is also available in aerosol as Dolph-Spray® EB-41.
Product Options
Showing 3 out of 3 options
 | Container Size: 1 gal | EIS Part #: DOLEB41G | $ / US gallon | |
| Container Size: 5 gal | EIS Part #: DOLEB415G | $ / US gallon | |
| Container Size: 20 Oz | EIS Part #: DOLEB41 | $ / each |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameUrethane Varnish
Trade NameSynthite® Dolph-Spray®
SeriesSynthite® Dolph-Spray® EB-41
General Features
Shelf Life12 Months (Bulk), 18 Months (Spray)
TypeAir-Drying
Design & Construction
ColorBlack
Cure TypeRoom Temperature
Performance Details
Dry Time10 min
Full Cure Time10 - 30 min at 77 °F
Technical Details
Flash Point81 °F
Chemical Properties
Viscosity200 cP
VOC4.4 lb/gal
Electrical Properties
Dielectric Strength1800 V/mil
Environmental Condition
Temperature Rating155 °C
Features
- High-temperature, fast cure, air dry, polyurethane varnish, and is an excellent insulator coating for all electrical and electronic parts
- Fast drying
- Excellent chemical resistance
- Excellent hiding power for rebuilding and manufacturing applications
- Oil and moisture resistant
- Superior abrasion resistance
- Excellent adhesion
- Dielectric Strength: 1800 V/Mil (Dry), 1200 V/Mil (Wet)
- Viscosity: 200 - 400 CP at 25 °C
- Dry Time: 10 - 30 min
- Viscosity: 200 - 400 cP
Applications
- For Field Coils, Control Coils, Motor Frames, Switch Bases, Molded Bakelite, Electrical Connectors, Collector Rings, Fuse Tubes, Solenoid Coils, Controller Shafts, Printed Circuit Boards, Commutator Ends, Bus Bars, Oil Reservoir Interior
