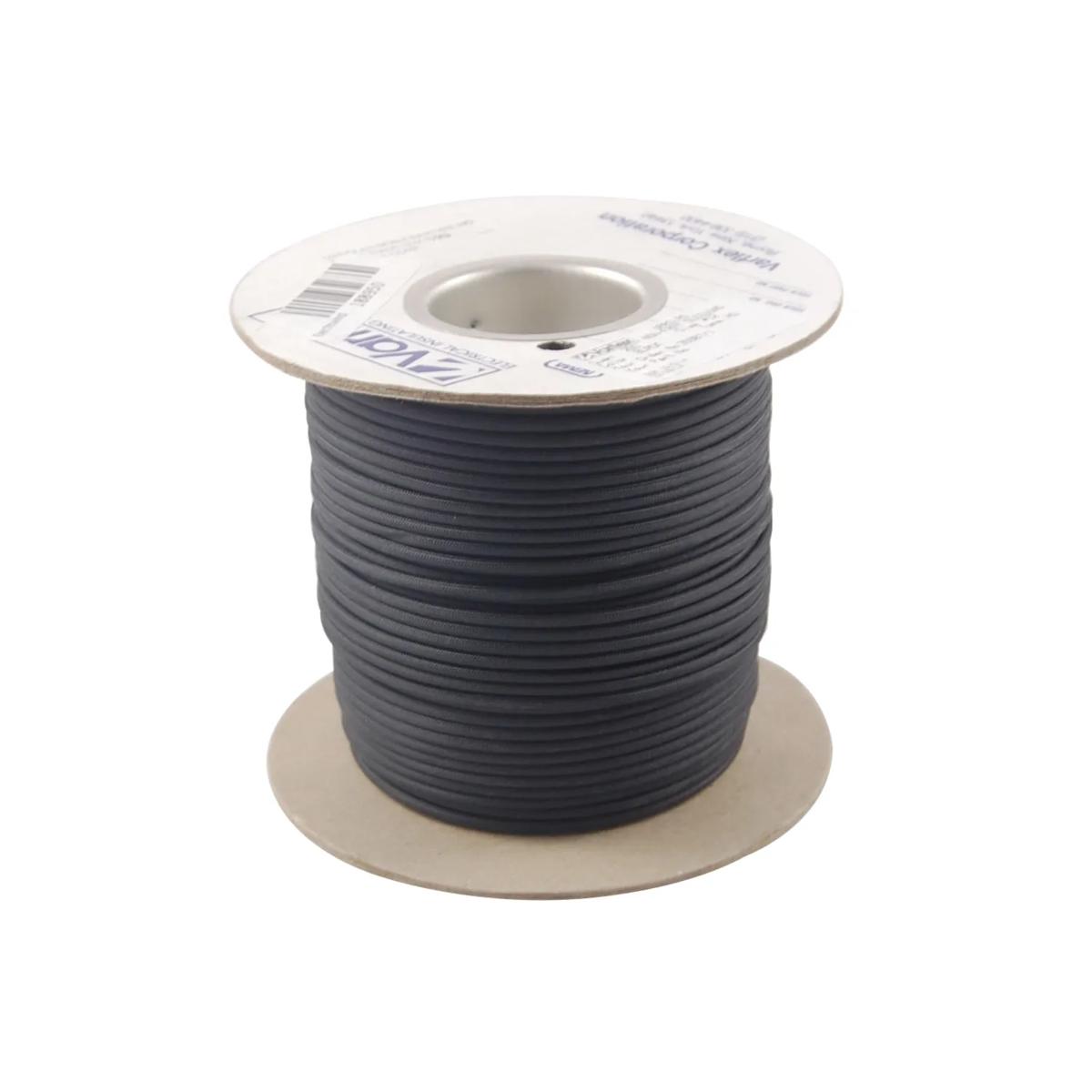

Varflex Varglas Non-Fray Type HP Flexible Uncoated Sleeving, 1 AWG, 250' Per Spool, Black, MFR ID VARGHP01BFV
- MFR #Varglas Non-Fray Type HP
- EIS #VARGHP01BFV
- Series #Varglas Non-Fray Type HP
$90.81 / 100Foot
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Products You May Also Like
| Stock Status | |||||
|---|---|---|---|---|---|
 | 0.5 Inch | 100 ft | Natural | $ / Foot more info | |
 | 2 AWG | 250 ft | Black | $ / Foot more info | |
| 0 AWG | 150 ft | Natural | $ / Foot more info | |
| 5 AWG | 500 ft | Black | $ / Foot more info | |
| 1 AWG | 250 ft | Black | $ / Foot more info |
Varglas Non-Fray Sleeving is flexible, high-temperature secondary insulation made from closely braided, continuous filament fiberglass which has been heat-cleaned to remove impurities in the yarn and to retard fraying. There are four types available all of which are noncorrosive and nonflammable and not attacked by fungus. - Type HP - heat cleaned and treated with an acrylic resin binder (natural or pigmented) that is slightly more flexible than Type HO.
Features
- Binders are applied to further retard fraying and to hold sleeving round for cutting
- 2.55-2.58 g/cu.cm specific gravity
- Good resistance to most alkalies, resistance to acids is fair
- Effect of bleaches and solvents are unaffected
- Excellent resistance to sunlight and aging, not attacked by mildew
- 6.5-6.8 at 22 °C, 60 Hz dielctric constant
- 0.001-0.005 at 22 °C, 1MHz dissipation factor
- Up to 316 °C indefinitely, up to 616 °C for shorter periods thermal endurance
- -60 °C per UL 1441 cold bend
- Passes UL 1441 (VW-1) flame resistance, will not burn
- Types HO, HP and HM are available in a variety of colors which may be less vivid after exposure to 150 °C
- All four types are available in various wall thicknesses, since there is no impregnant that will provide dielectric protection at those extremes, these sleevings require heavy or multiple-wall thicknesses if used as primary insulation
- Volume Resistivity: 10^15 -10^16 Ohm-cm
- Dielectric Strength: 1100 - 1500V
- Temperature Rating: -60 to 16 °C
- Tensile Strength: 500000 - 550000 psi
- Length: 250 ft Per Spool
Applications
- Thermal and Mechanical Protection of Insulated Wires and Sensor Leads in Consumer, Commercial, and Industrial Appliances and Lighting Fixtures, Outer Coverings for Resin Impregnated Circuitry
- Commercial and Industrial Applications
- Heating Appliances
- Electric Motors
- Resistors
- Lighting Fixture Transformers and Ballasts
- Wire Harness Assemblies
General Information
| Item Name | Uncoated Sleeving |
| Trade Name | Varglas Non-Fray |
| Series | Varglas Non-Fray Type HP |
General Features
| Type | Flexible |
Design & Construction
| Color | Black |
| Braid Type | Fiberglass |
| NEMA Specification | NEMA TF-2 |
Performance Details
| Flame Retardant | Yes |
| Tensile Strength | 500000 psi |
Electrical Properties
| Dielectric Strength | 1100 V |
Physical Properties
| Gauge | 1 AWG |
| Inside Diameter | 1 Inch |
| Length | 250 ft |
| Elongation | 4.5 - 4.9% |
