MFR #:Nu-Flex HTS-520-AW
EIS #:PH21-Nu-Flex HTS-520-AW
Series #:Nu-Flex HTS-520-AW
MFR #:Nu-Flex HTS-520-AW
EIS #:PH21-Nu-Flex HTS-520-AW
Series #:Nu-Flex HTS-520-AW

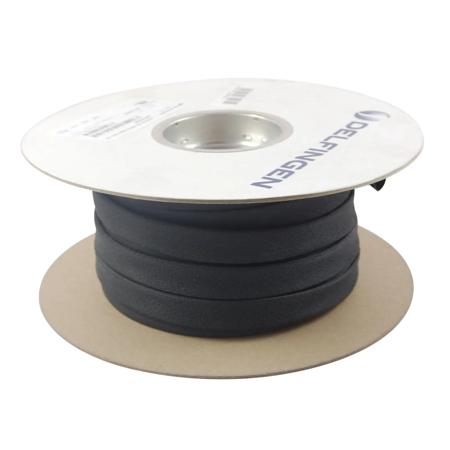

Nu-Flex HTS binds the fibers and provides excellent fray resistance avoiding skin irritation when cutting and handling. The color binder may degrade at operating temperatures above 200 °C. Its expandability and flexibility enables it to slip over irregular shapes and electrical connections to provide effective thermal, mechanical and electrical protection. - Nu-Flex HTS is a fiberglass braided sleeve that has been heat treated to remove all organic contaminants and then saturated with an acrylic binder. The acrylic binder can be dyed in many colors for code and identification purposes.
$11.46
- $46.20
Select from the options below
Nu-Flex HTS binds the fibers and provides excellent fray resistance avoiding skin irritation when cutting and handling. The color binder may degrade at operating temperatures above 200 °C. Its expandability and flexibility enables it to slip over irregular shapes and electrical connections to provide effective thermal, mechanical and electrical protection. - Nu-Flex HTS is a fiberglass braided sleeve that has been heat treated to remove all organic contaminants and then saturated with an acrylic binder. The acrylic binder can be dyed in many colors for code and identification purposes.
Product Options
Showing 8 out of 11 options
Length: 250 ft | Gauge: 12 AWG | EIS Part #: AC431BC-312BFJ | $ / Foot | ||
Length: 250 ft | Gauge: 8 AWG | EIS Part #: AC431BC-308BFJ | $ / Foot | ||
Length: 250 ft | Gauge: 7 AWG | EIS Part #: AC431BC-307BFJ | $ / Foot | ||
Length: 250 ft | Gauge: 6 AWG | EIS Part #: AC431BC-306BFJ | $ / Foot | ||
Length: 250 ft | Gauge: 5 AWG | EIS Part #: AC431BC-305BFJ | $ / Foot | ||
Length: 250 ft | Gauge: 4 AWG | EIS Part #: AC431BC-304BFJ | $ / Foot | ||
Length: 250 ft | Gauge: 3 AWG | EIS Part #: AC431BC-303BFJ | $ / Foot | ||
Length: 250 ft | Gauge: 2 AWG | EIS Part #: AC431BC-302BFJ | $ / Foot |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameUncoated Fiberglass Sleeve
Trade NameNu-Flex HTS-520
SeriesNu-Flex HTS-520-AW
General Features
TypeSaturated
Design & Construction
ColorBlack
GradeC-3
Insulation MaterialAcrylic
Braid TypeFiberglass
NEMA SpecificationNEMA TF-2
Features
- Ideal for high-temperature, low voltage applications
- Excellent expandability and flexibility to slip over irregular shapes and electrical connections
- Excellent fray resistance in cutting
- Reduced skin irritation in handling
- Heat resistant and non-flammable
- High tensile strength and high resistance to moisture, fungus and chemical attack
- Spool packing
- Standard wall construction
- Dielectric Grade: C-3
- Volume Resistivity: 10^14 Ohm-cm
- Temperature Rating: -70 to 600 °C
Applications
- Coil and Winding Industry (Coils, Motors, Generators, Transformers)
- Lighting Fixtures
- Recreational Vehicles
- Industrial Equipment (Tow Motors, Overhead Cranes, Aerial Platforms)
- Commercial Cookware (Fryers, Rotisseries, Steamer)
- Heavy Truck Market
