3M Scotchlok™ 30000 Copper Terminal Lug

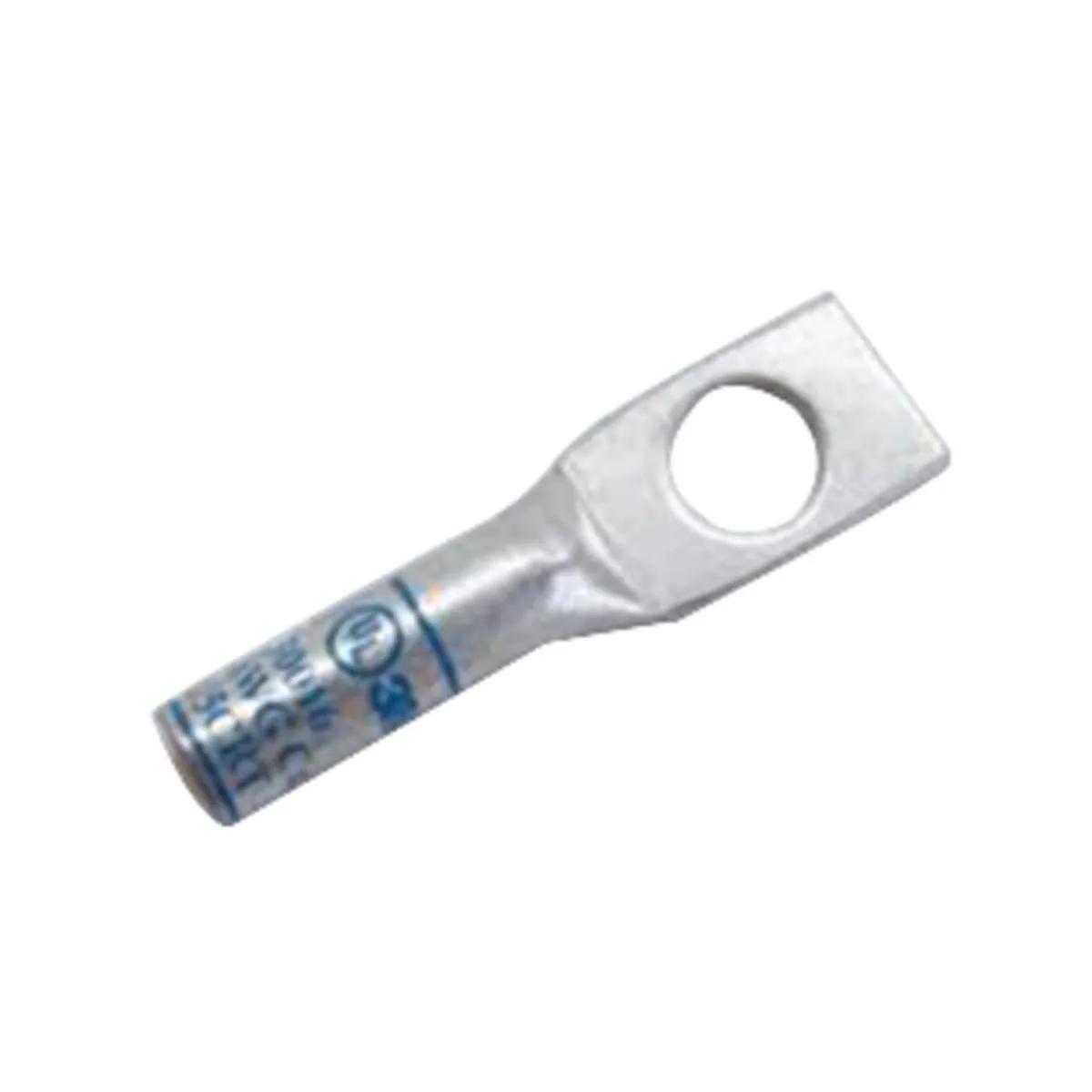

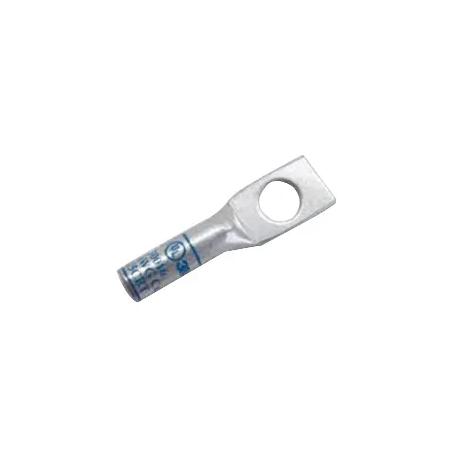

The image shown is representative of the product family and may not specifically be the individual item.  Each lug is electro-tin plated to resist electrolytic corrosion. The lugs are installed using standard industry tooling. Chamfered ends ensure sim…

MFR #:30000

EIS #:PH15-30000

Series #:30000

MFR #:30000

EIS #:PH15-30000

Series #:30000

0
0
3M Scotchlok 30000 copper compression lugs are one-piece, seamless copper and are designed to cover a wide range of conductor sizes. They are available in one-hole, standard-barrel and one-hole and two-hole long-barrel versions. They are designed to terminate copper conductors. - Each lug is electro-tin plated to resist electrolytic corrosion. The lugs are installed using standard industry tooling. Chamfered ends ensure simplicity and ease of conductor insertion.
$3.42
 - $9.28
Select from the options below
0
0
3M Scotchlok 30000 copper compression lugs are one-piece, seamless copper and are designed to cover a wide range of conductor sizes. They are available in one-hole, standard-barrel and one-hole and two-hole long-barrel versions. They are designed to terminate copper conductors. - Each lug is electro-tin plated to resist electrolytic corrosion. The lugs are installed using standard industry tooling. Chamfered ends ensure simplicity and ease of conductor insertion.

Product Options

Showing 4 out of 4 options
The image shown is representative of the product family and may not specifically be the individual item.  Each lug is electro-tin plated to resist electrolytic corrosion. The lugs are installed using standard industry tooling. Chamfered ends ensure sim…
Stud Size
0.375 Inch
Packaging
10/Case
Wire Size
2/0 AWG
EIS Part #
TERM30036
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.  Each lug is electro-tin plated to resist electrolytic corrosion. The lugs are installed using standard industry tooling. Chamfered ends ensure sim…
Stud Size
0.375 Inch
Packaging
10/Case
Wire Size
1 AWG
EIS Part #
TERM30028
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.  Each lug is electro-tin plated to resist electrolytic corrosion. The lugs are installed using standard industry tooling. Chamfered ends ensure sim…
Stud Size
0.375 Inch
Packaging
25/Case
Wire Size
2 AWG
EIS Part #
TERM30024
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.  Each lug is electro-tin plated to resist electrolytic corrosion. The lugs are installed using standard industry tooling. Chamfered ends ensure sim…
Stud Size
0.3125 Inch
Packaging
50/Case
Wire Size
6 AWG
EIS Part #
TERM30016
$ / Piece

Attributes

General Information
Item NameTerminal Lug
Trade NameScotchlok™
Series30000
General Features
StandardsUL 486A-486B Listed, CSA Certified, RoHS Compliant‎
Design & Construction
Connection TypeCompression
MaterialCopper
Barrel StyleStandard
Performance Details
Operating Temperature140 °C
Physical Properties
Number of Holes1
