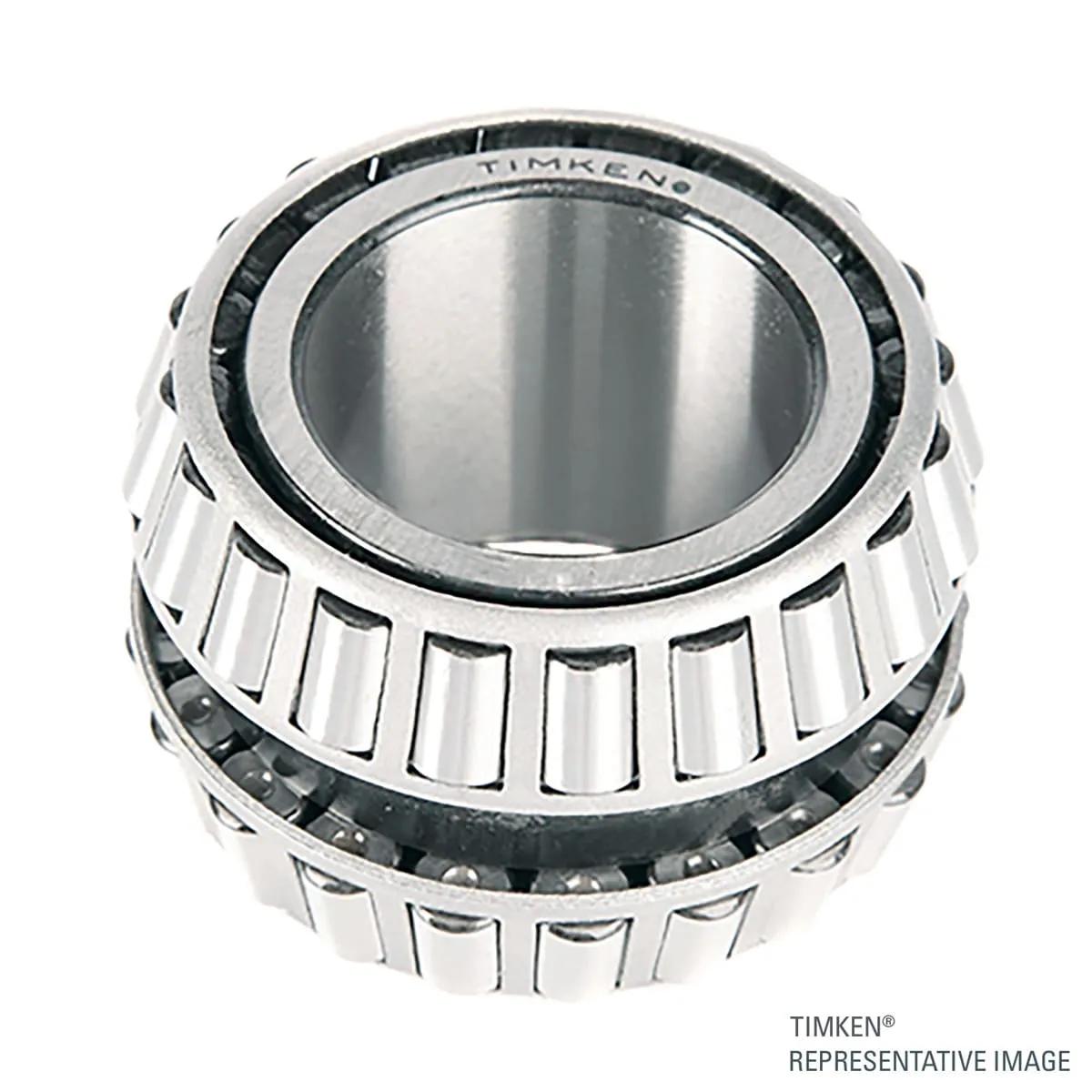

Timken 67390D-2T Tapered Roller Bearing Double Cone | Imperial | 133.4 mm 5.3 in Bore | 92.2 mm 3.6 in Width, MFR ID TIM-67390D-2
- MFR #67390D-2
- EIS #67390D-2T
- UPC #53893365800
$16,089.16 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.
Features
- Widest choice including both inch and metric sizes
- Engineered to deliver higher speeds, heavier loads and longer life
- Unrivaled technology and engineering support
- Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required
General Information
| Item Name | Tapered Roller Bearing |
General Features
| Net Weight | 13.823 lb |
| Type | Double Cone |
Design & Construction
| Bore Type | Straight Bore |
| Cage Material | Steel |
| Cage Type | Steel |
| Material | Steel |
| Raceway Style | Tapered Roller Bearing |
| Retainer Type | Steel |
| Rolling Element | Tapered Roller |
| Rolling Element Material | Steel |
| Row Type | Double |
Performance Details
| Dynamic Load Capacity | 144000 lb |
| Precision Class | Class 2 (Standard) |
| Static Load Capacity | 282000 lb |
Physical Properties
| Overall Width | 3.63 Inch | 92.202 mm |
| Shaft Size | 5.25 Inch | 133.35 mm |
Documents
No Documents Found
