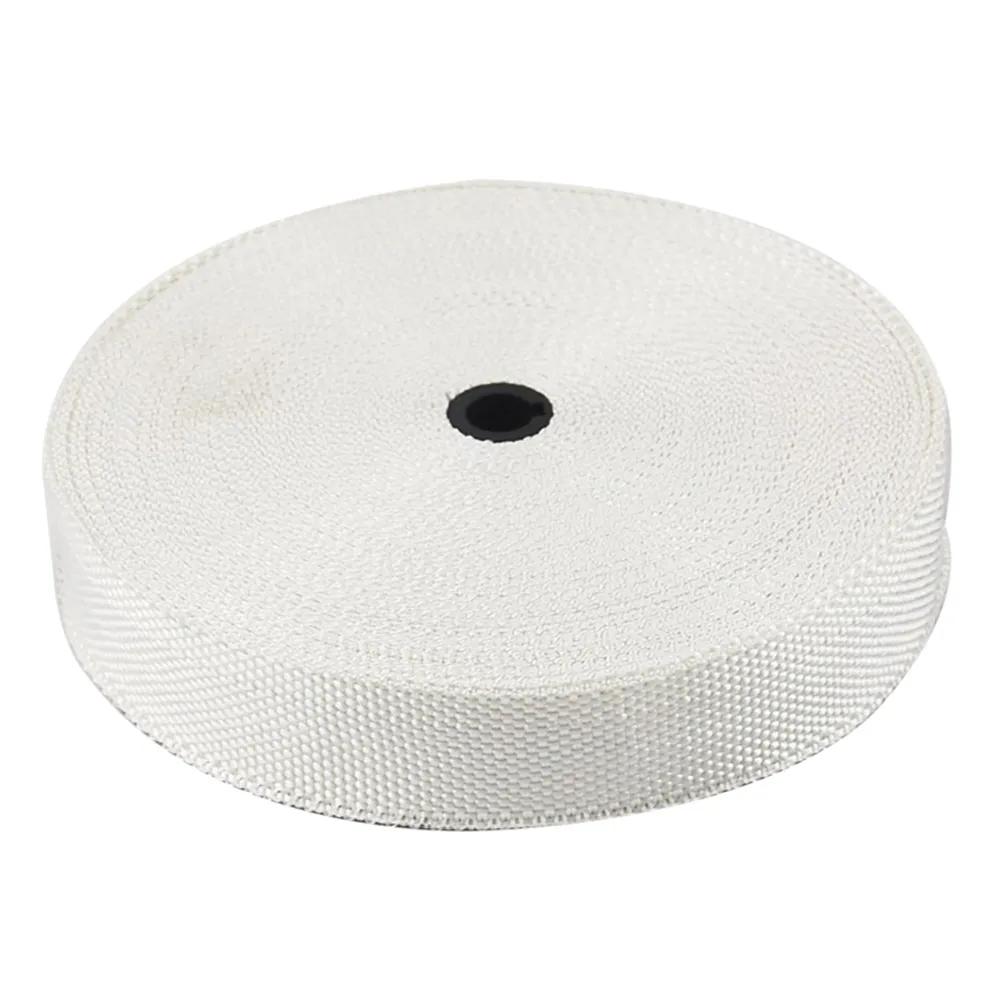

Saylor GT550MW Medium Weave Fiberglass Woven Tape, 1/2" x 36 yd x 0.005", Natural
- MFR #GT550MW
- EIS #GT550MW-BRE
$6.23 / Roll
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | 36 Yard | 0.01 Inch | 2 Inch | $ / Roll more info | |
| 36 Yard | 0.01 Inch | 0.5 Inch | $ / Roll | |
| 72 Yard | 0.004 Inch | 1 Inch | $ / Roll | |
| 72 Yard | 0.004 Inch | 1.5 Inch | $ / Roll | |
| 72 Yard | 0.004 Inch | 0.75 Inch | $ / Roll | |
| 36 Yard | 0.005 Inch | 1 Inch | $ / Roll |
This fiberglass tape is manufactured under the highest manufacturing standards utilizing high quality, electrical grade, continuous filament fiberglass yarns which have been twisted and plied. Saylor Breyden tapes are primarily used in electrical applications as coil wraps, insulation, mechanical reinforcements and other applications requiring high heat resistance. - These tapes are unfinished to allow maximum wet out. Saylor Breyden glass tapes are manufactured in an ISO 9001 facility. Saylor glass tapes retain 50% of their tensile strength at 340 °C. The construction is commonly referred to as medium weave.
Features
- Excellent tensile strength, electrical insulation, thermal insulation, dimensional stability and thermal endurance
Applications
- For Coil Wrapping, Insulation, Mechanical Reinforcements and other Applications Requiring High Heat Resistance
General Information
| Item Name | Tape |
| Series | GT-MW |
General Features
| Type | Medium Weave, Woven |
Design & Construction
| Backing Material | Fiberglass |
| Color | Natural |
Performance Details
| Breaking Strength | 170 lb |
Physical Properties
| Width | 0.5 Inch |
| Length | 36 Yard |
| Thickness | 0.005 Inch |
| Core Size | 3 Inch |
Environmental Condition
| Temperature Rating | 180 °C |
