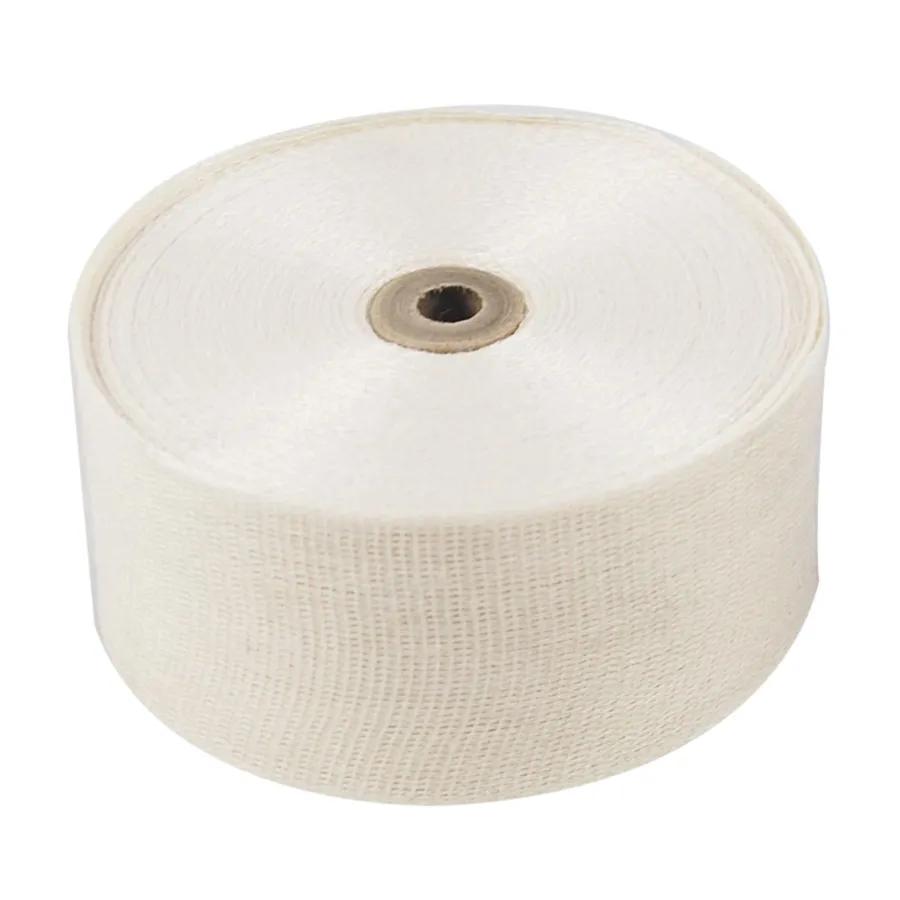

Carolina Narrow Fabric 7868 Plain Woven Cotton Tape, 1" x 36 yd x 7 Mil, Natural
- MFR #7868
- EIS #CAR7868
$10.46 / Roll
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | 36 Yard | 1.5 Inch | 30 | $ / Roll | |
 | 36 Yard | 0.375 Inch | 30 | $ / Roll more info | |
| 36 Yard | 2 Inch | 30 | $ / Roll more info | |
| 36 Yard | 0.5 Inch | 34 | $ / Roll more info | |
| 36 Yard | 0.625 Inch | 30 | $ / Roll | |
 | 36 Yard | 0.75 Inch | 30 | $ / Roll |
Despite the introduction of revolutionary man-made fabrics, plain weave cotton is still used in large quantities for electrical insulation and coil winding. These cotton tapes can also be used as sacrificial tape in resin or shellac coating processes. Meets GE A2A1D-13 and ASTM Type A2 specifications Plain woven cotton tapes are used to wrap armatures, field coils, field coil supports, and transformer windings. Very strong and cost effective. These materials are also used to wrap cables, in electrical appliances, and as a sacrificial item in resin or shellac coating processes.
Applications
- For Transformers, Motors, Generators, Switch Gears, Consumer Appliances and Electronic Equipment
Features
- Very strong
- Cost-effective
- Easy and safe to handle
- Wrap cable in electrical appliances and small hand tools, electric drills, food mixers, electric knives
- Sacrificial tape in resin or shellac coating processes
- To wrap armatures, field coils, field coil supports, cable wrap and transformer winding
- Very strong
- Cost-effective
- Easy and safe to handle
- Wrap cable in electrical appliances and small hand tools, electric drills, food mixers, electric knives
- Sacrificial tape in resin or shellac coating processes
- To wrap armatures, field coils, field coil supports, cable wrap and transformer winding
- 30/Inch picks
General Information
| Item Name | Cotton Tape |
| Series | CAR786 |
General Features
| Type | Plain, Woven |
| Net Weight | 0.209 lbs/Rl |
Design & Construction
| Backing Material | Cotton |
| Color | Natural |
Physical Properties
| Core Size | 0.375 Inch |
| Width | 1 Inch |
| Length | 36 Yard |
| Thickness | 7 Mil |
Environmental Condition
| Temperature Rating | 105 °C |
