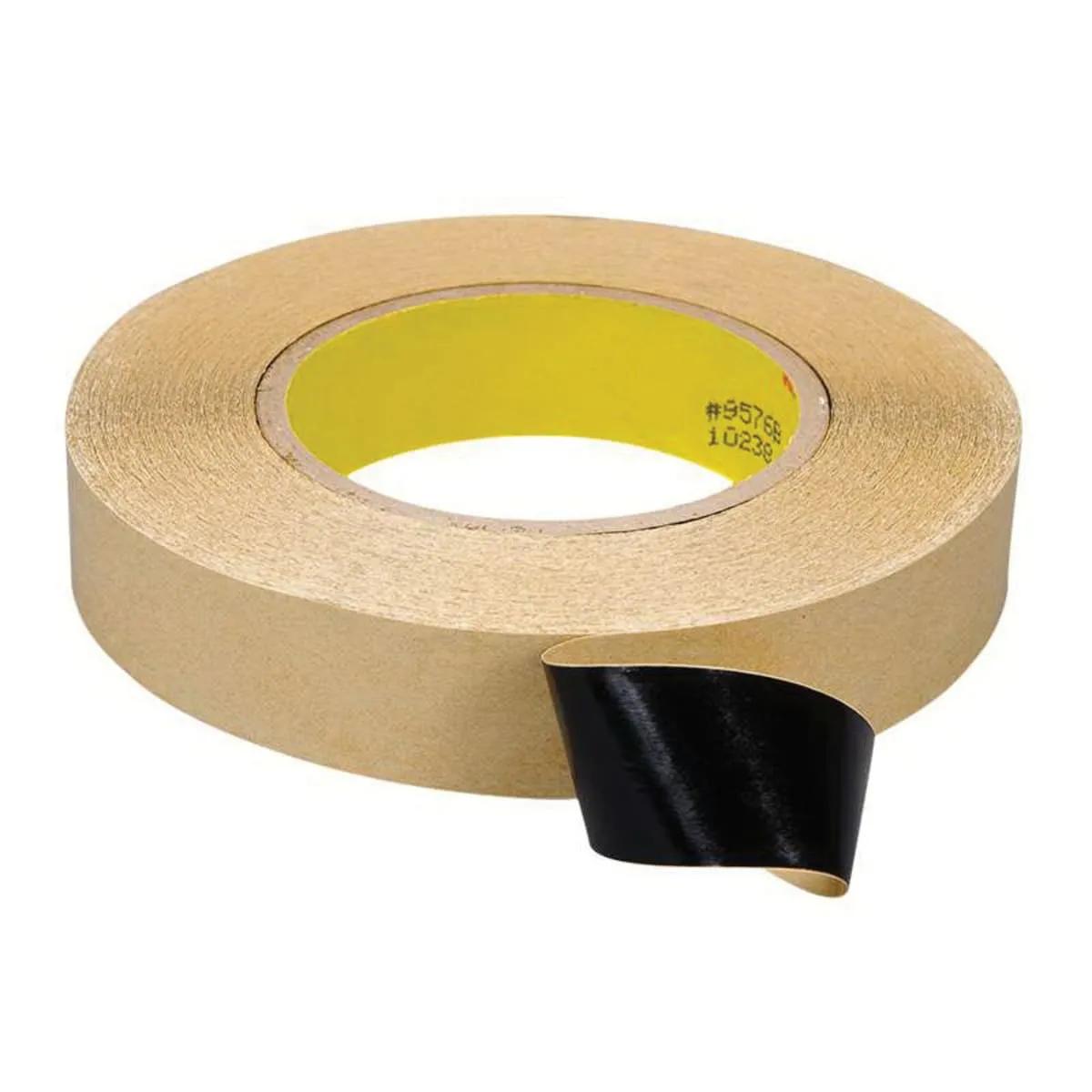

3M 9576 Double-Coated Polypropylene Tape
- MFR #9576
- EIS #PH22-9576
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like
Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | Black/Tan Liner | $ / Roll Pack: 36/Case | |
 | Clear/Tan Liner | $ / Roll Pack: 36/Case more info |
3M 9576 clear bonding tape comes in a 1 Inch width, 60 Yard length, uses an acrylic adhesive and is packaged 36 rolls per case. Can be used to a maximum temperature of 125 °F. The variances in thickness often make an important difference in proper performance. This bonding tape has a 4 Mil thick. - Liner on the back which you peel away from to expose the adhesive material before applying to the substrate. The liner material for this product is composed of densified kraft paper. The 3M is a Splicing tape offers excellent flying splice and core starting wet grab characteristics.
Features
- 4 Mil clear double coated tape on a tan 60# DK liner
- High tack, double coated tape with proven performance for paper web splicing and general purpose bonding
- Excellent flying splice and core starting characteristics, wet grab, process speeds in excess of 2000 ft/min
- Adhesive thickness of 4 Mil (Back-Side), 1.5 Mil (Face-Side)
- Temperature rating of -40 to 165 °F
Applications
- For Flying Splice and Core Starting Wet Grab Characteristics, Printing Industry
General Information
| Item Name | Tape |
| Series | 9576 |
General Features
| Type | Double-Coated |
| Shelf Life | 24 Months |
| Storage Temperature | 21 °C |
Design & Construction
| Adhesive Type | Acrylic |
| Carrier Material | Polypropylene |
| Liner Material | Densified Kraft Paper |
Performance Details
| Adhesive Strength | 30 oz/Inch |
| Shear Strength | 5 psi |
Physical Properties
| Adhesive Thickness | 4 mil |
| Carrier Thickness | 1 mil |
| Core Size | 3 Inch |
| Width | 1 Inch |
| Length | 60 Yard |
| Liner Thickness | 4 mil |
| Thickness | 4 Mil |
Environmental Condition
| Resists | Chemical, Humidity, Moisture, Plasticizer, Solvent, UV |
| Temperature Rating | 165 °F |
