MFR #:69
EIS #:PH22-69
MFR #:69
EIS #:PH22-69

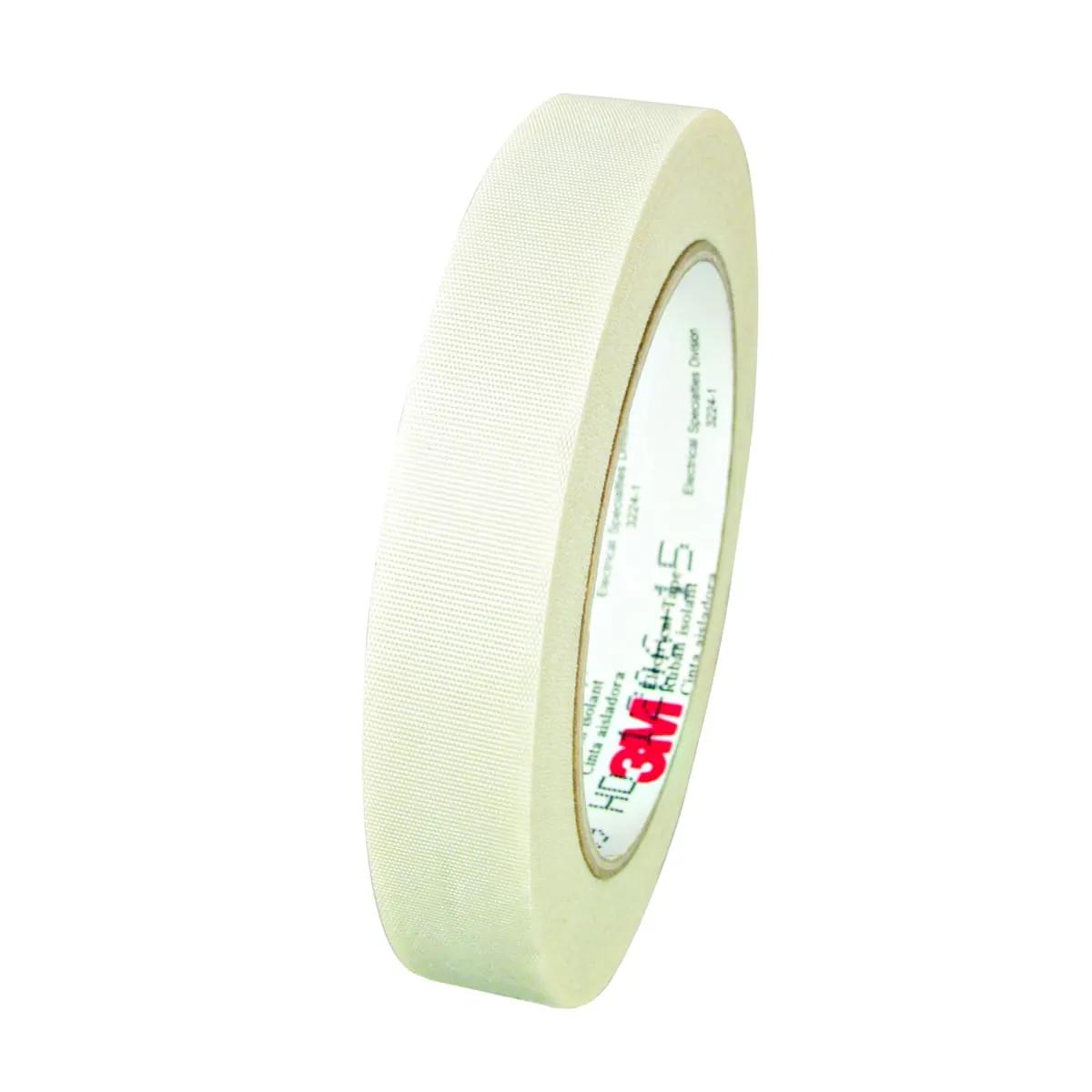

3M glass cloth electrical tape 69 is a white glass cloth tape with a high temperature thermosetting silicone pressure sensitive adhesive. It is designed for use in 600V dry location applications motors and transformers with and without varnish coating. Key attributes like high mechanical strength and resistance to high temperatures provide excellent performance. - The thermosetting adhesive provides an increased bond once applied in areas of high ambient temperatures. The thermosetting adhesive provides elevated temperature performance up to Class N 392 °F temperature rating.
$7.23
- $307.53
Select from the options below
3M glass cloth electrical tape 69 is a white glass cloth tape with a high temperature thermosetting silicone pressure sensitive adhesive. It is designed for use in 600V dry location applications motors and transformers with and without varnish coating. Key attributes like high mechanical strength and resistance to high temperatures provide excellent performance. - The thermosetting adhesive provides an increased bond once applied in areas of high ambient temperatures. The thermosetting adhesive provides elevated temperature performance up to Class N 392 °F temperature rating.
Product Options
Showing 8 out of 32 options
Width: 6 Inch | EIS Part #: 3M69X6 | $ / Roll | ||
Width: 4 Inch | EIS Part #: 3M69X4 | $ / Roll | ||
Width: 3.5 Inch | EIS Part #: 3M69X3.5 | $ / Roll | ||
Width: 3 Inch | EIS Part #: 3M69X3 | $ / Roll | ||
Width: 2.75 Inch | EIS Part #: 3M69X2.75 | $ / Roll | ||
Width: 2.5 Inch | EIS Part #: 3M69X2.5 | $ / Roll | ||
Width: 2 Inch | EIS Part #: 3M69X2 | $ / Roll | ||
Width: 1.875 Inch | EIS Part #: 3M69X1.875 | $ / Roll |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameTape
Trade Name3M
Series69
General Features
Shelf Life60 Months
Design & Construction
Adhesive TypeSilicone
Backing MaterialGlass Cloth
ColorWhite
Performance Details
Adhesive Strength40 oz/Inch
Breaking Strength180 lb/Inch
Flame RetardantYes
Electrical Properties
Dielectric Strength3000 V
Physical Properties
Core Size3 Inch
Elongation5%
Length36 Yard
Thickness7 Mil
Width-
Environmental Condition
Temperature Rating32 °F
Features
- Glass cloth tape with a high temperature, thermosetting, silicone adhesive
- Adhesive provides an increased bond once applied in areas of high ambient temperatures
- Edge tear resistant conformable, high temperature flame resistant
- Temperature rating of 32 to 392 °F
Applications
- For Coil Cover, Anchor, Banding and Core, Layer and Crossover Insulation
