Loctite 3609 Chipbonder® One-Part Surface Mount Adhesive

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:LOC-3609

EIS #:PH11-LOC-3609

Series #:LOC-3609

MFR #:LOC-3609

EIS #:PH11-LOC-3609

Series #:LOC-3609

0
0
Loctite 3609 is designed for the bonding of surface mounted devices to printed circuit boards prior to wave soldering. Particularly suited for applications where medium to high dispense speeds, high dot profile, high wet strength and good electrical characteristics are required. - Loctite 3609 has been used successfully in lead free processes with water and alcohol based fluxes under conditions outlined in the environmental resistance section.
$60.03
 - $127.83
Select from the options below
0
0
Loctite 3609 is designed for the bonding of surface mounted devices to printed circuit boards prior to wave soldering. Particularly suited for applications where medium to high dispense speeds, high dot profile, high wet strength and good electrical characteristics are required. - Loctite 3609 has been used successfully in lead free processes with water and alcohol based fluxes under conditions outlined in the environmental resistance section.

Product Options

Showing 4 out of 4 options
The image shown is representative of the product family and may not specifically be the individual item.  Loctite HYDX-20 is a high activity, flux designed for the soldering of the most difficult electronic assemblies. Unique activator package enables …
Container Size
20mL
Container Type
Syringe
EIS Part #
LOC21555
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
10mL
Container Type
EFD Syringe
EIS Part #
LOC20236
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
30mL
Container Type
EFD Syringe
EIS Part #
LOC20235
$ / each

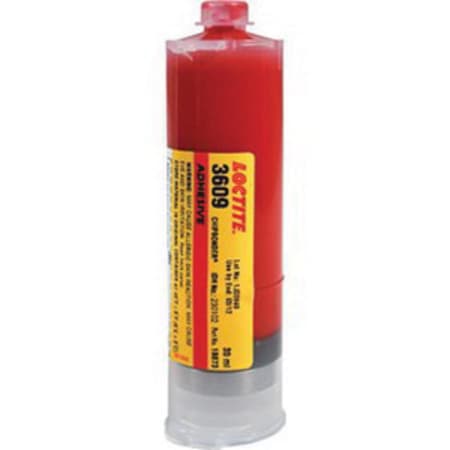

The image shown is representative of the product family and may not specifically be the individual item.
Container Size
30mL
Container Type
Fuji Syringe
EIS Part #
LOC19873
$ / each

Attributes

General Information
Item NameSurface Mount Adhesive
Trade NameChipbonder®
SeriesLOC-3609
General Features
Shelf Life6 Months
Storage Temperature2 to 8 °C
TypeOne-Part
Design & Construction
ColorRed, Orange
Cure TypeHeat Cure
FormLiquid
Performance Details
Full Cure Time90 sec at 150 °C
Shear Strength1450 psi at 150 °C
Chemical Properties
CompositionEpoxy
Specific Gravity1.1
VOC2.46g/L
Electrical Properties
Dielectric StrengthSee TDS
Physical Properties
Odor/ScentMild Petroleum
Supporting Information
Application MethodHigh Speed Syringe Dispensing
