Leeson LM29671 Hydraulic Submersible Elevator Pump Motor, 50 HP, 3600 rpm, 160Z Frame

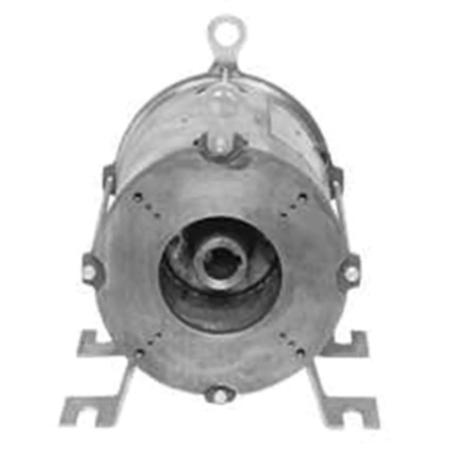

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:LE-200-RGBF1-ODP-SEPM
  • EIS #:MOTLM29671
  • MFR #:LE-200-RGBF1-ODP-SEPM
  • EIS #:MOTLM29671
Available to Order

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson Definite Purpose Hydraulic Submersible Elevator Pump Motor, Bearing Type: Ball, Construction: Steel Frame, Dimensions: 9.53 Inch W x 13.35 Inch H, Duty: Intermittent, Enclosure Type: Open Dripproof, Finish: Gray, Frame Size: 160, Frequency Rating: 60 Hz, Insulation Type: Class F, Mounting Type: Rigid Base, F1, Phase: 3-Phase, Rotation: Reversible, Service Factor: 1, Speed Rating: 3600 rpm, Temperature Rating: 70 deg C, Voltage Rating: 200V. Leeson Intermittent Duty Definite Purpose Hydraulic Submersible Elevator Pump Motor are designed for belt driven pumps with dual rated nameplates for 80 & 120 starts/hour. Constructed for low noise and low vibration, Ball bearings with grease fittings and automatic relief, two stainless steel nameplates furnished and thermostat protected windings.
$4,055.92 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson Definite Purpose Hydraulic Submersible Elevator Pump Motor, Bearing Type: Ball, Construction: Steel Frame, Dimensions: 9.53 Inch W x 13.35 Inch H, Duty: Intermittent, Enclosure Type: Open Dripproof, Finish: Gray, Frame Size: 160, Frequency Rating: 60 Hz, Insulation Type: Class F, Mounting Type: Rigid Base, F1, Phase: 3-Phase, Rotation: Reversible, Service Factor: 1, Speed Rating: 3600 rpm, Temperature Rating: 70 deg C, Voltage Rating: 200V. Leeson Intermittent Duty Definite Purpose Hydraulic Submersible Elevator Pump Motor are designed for belt driven pumps with dual rated nameplates for 80 & 120 starts/hour. Constructed for low noise and low vibration, Ball bearings with grease fittings and automatic relief, two stainless steel nameplates furnished and thermostat protected windings.

Product Options

Showing 3 out of 3 options
The image shown is representative of the product family and may not specifically be the individual item.
HP Rating:
50 HP
EIS Part #:
MOTLM29671
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
HP Rating:
40 HP
EIS Part #:
MOTLM29668
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
HP Rating:
30 HP
EIS Part #:
MOTLM29665
$ / Piece

Attributes

General Information

Item NameSubmersible Elevator Pump Motor
Trade NameLeeson

SeriesLE-200-RGBF1-ODP-SEPM

General Features

StandardsUL Listed, CSA Approved
TypeDefinite Purpose, Hydraulic

Design & Construction

Bearing TypeBall
ConstructionSteel Frame
DutyIntermittent
Enclosure TypeOpen Dripproof
Insulation TypeClass F
KVA CodeH
Mounting TypeRigid Base, F1
RotationReversible

Performance Details

Full Load Efficiency84%
1/2 Load Efficiency91.7%
3/4 Load Efficiency91%
Speed Rating3600 rpm

Electrical Properties

Frequency Rating60
Full Load Ampere140 A
Full Load Power Factor91%
1/2 Load Power Factor82.5%
HP Rating50 HP
Locked Rotor Ampere268 A
Phase3-Phase
Service Factor1
3/4 Load Power Factor88%
Voltage Rating200 V

Physical Properties

Weight143 lb
Dimensions9.53 Inch W x 13.35 Inch H
Frame Size160

Environmental Condition

Temperature Rating70 °C
