Eraser AR1211 Stripping Pot, 18 - 24 AWG
- MFR #AR1211
- EIS #ERASERAR1211
Requiere Cotización / Piece
Agotado
Cantidad mínima1QTY Increment1
more info
Products You May Also Like

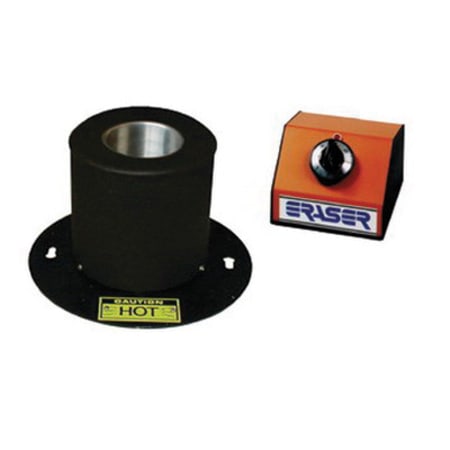

The AR1211 DSP stripping pots are designed specifically for use with Dip Strip. The standard model DSP1 has an infinitely variable temperature control with a reference scale. Dip Strip is used to chemically remove the insulation from virtually all magnet and enamel wires of all sizes and insulation types, without damage to the wire. - When heated in the specially designed AR1211 stripping pot, the Dip Strip DSP1 melts and wires are immersed in the Dip Strip to strip the insulation. The stripped wires are then rinsed in water and Dip Clean Metal Cleaner to remove oxides and residue. Dip Strip does not corrode conductors as will acid strippers. Custom square and rectangular pots available.
Features
- Standard temperature control
- Internal dimension of 3 Inch dia x 2-1/4 Inch depth
- Overall size of 6-3/16 Inch dia x 6 Inch height
- Dip strip temperature of 500 °F (melting), 700 to 750 °F (normal use), 820 °F (maximum operating)
- Dip strip stripping time of 18 AWG polyester insulation - 2 sec, 24 AWG polyester insulation - 1 sec, 40 AWG nylon insulation - 1/2 sec
- Temperature Rating: 100 to 800 °F
- Cutting Capacity: 18 - 24 AWG Polyester Insulation, 40 AWG Nylon Insulation
General Information
| Item Name | Stripping Pot |
| Series | DSP1 |
Design & Construction
| Cutting Capacity | 40 AWG |
| Power Source | 120V 50/60 Hz |
Environmental Condition
| Temperature Rating | 100 °F |
