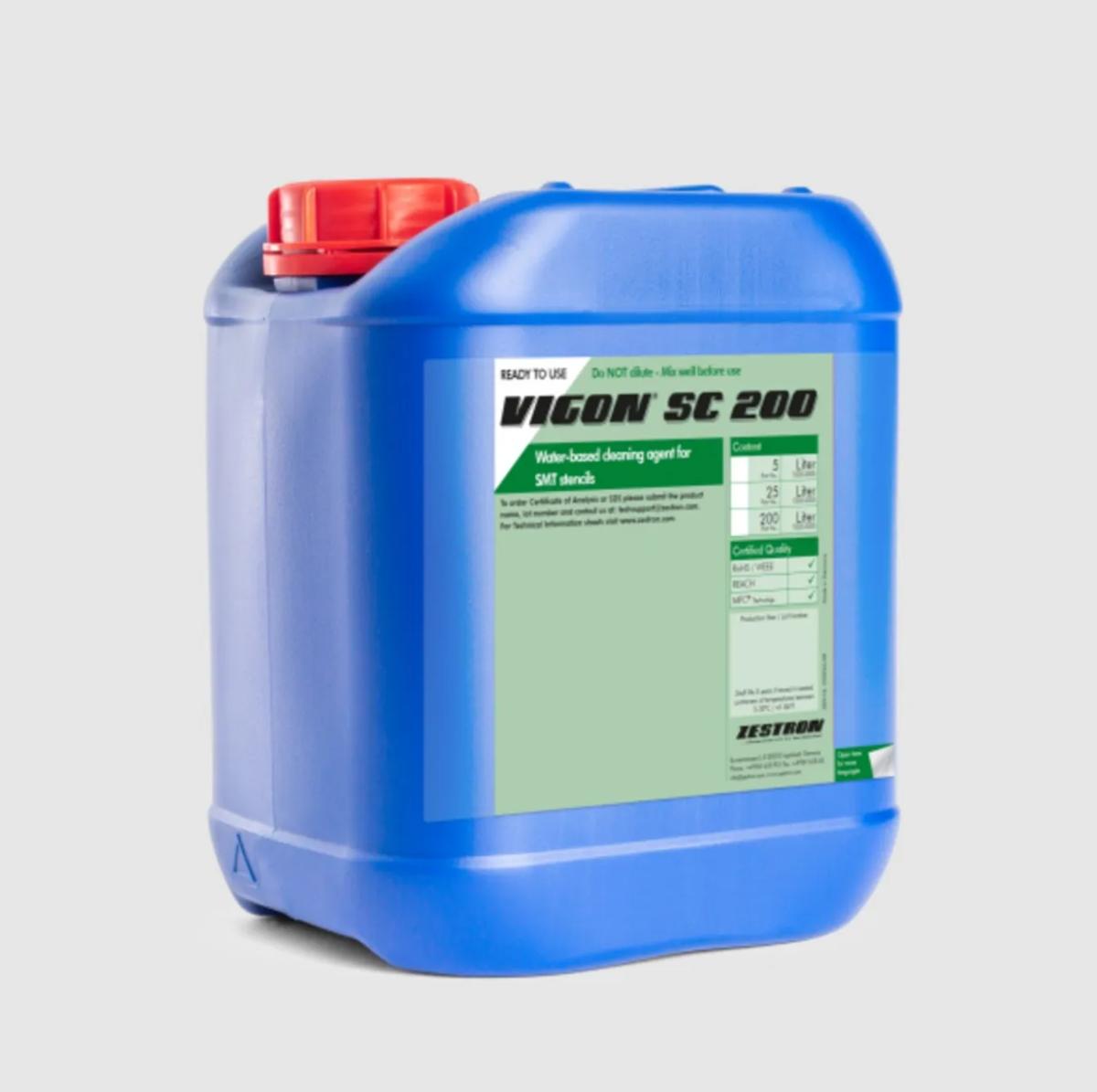

Zestron 0330-0025 Vigon SC 200 Stencil Cleaner Concentrate, 25 L
- MFR #0330-0025
- EIS #0330-0025-ZES
- Series #SC 200
$966.88 / Can
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||
|---|---|---|---|
 | 5 L | $ / Can | |
 | 25 L | $ / Can |
The MPC cleaner reliably removes solder pastes and SMT adhesives from SMT stencils and can also be used in SMT printers for underside wiping and misprinted assemblies. Depending on the type of fluxes, VIGON SC 200 can also be used for misprints on double-sided PCBAs with one side already soldered. The cleaning agent is designed for the use in spray-in-air and ultrasonic cleaning systems.
Applications
- Stencil and Misprint Cleaning (removal of solder pastes and SMT adhesives, stencil underside wiping, misprints on PCBAs)
Features
- High bath loading capability, very good filterability and therefore a long bath life as well as low maintenance costs
- Due to its mild formulation, the medium shows excellent material compatibility with stencils
- Applicable in spray-in-air systems, ultrasonic dip tanks and printers
- Recommended for ambient cleaning temperatures
- Water-based cleaner without flash point, no explosion-proof protection required
- Applicable in closed-loop systems
- No foaming when used in spray-in-air systems, low odor, no building of organics in the rinsing section
- VIGON SC 200 has been approved by leading international manufacturers for the use in their stencil printers
General Information
| Item Name | Stencil Cleaner |
| Trade Name | Vigon |
| Series | SC 200 |
General Features
| Type | Water-based stencil cleaner |
| Standards | IPC-7526 Manual for cleaning of stencils and misprinted boards |
| Net Weight | 25 L |
| Shelf Life | Minimum 5 years in factory sealed containers |
| Storage Temperature | 5 to 30 C |
Design & Construction
| Base Type | Water-based |
| Form | Liquid |
| Application Materials | SMT stencils, misprinted solder paste boards, double-sided PCBAs, printer undersides |
Performance Details
| Removes | Solder pastes and SMT adhesives in one single process and can also be used for stencil underside wiping in printers |
| Vapor Pressure | 18.1 |
Technical Details
| Boiling Point | 95 to 212 C |
| Flash Point | None until boiling |
Chemical Properties
| Dilution | Concentrate |
| pH Rating | Neutral |
| Specific Gravity | 0.99 g/mL at 20 C |
Physical Properties
| Container Size | 25 L |
| Container Type | Jerry Can |
| Density | 0.99 g/mL at 20 C |
| Odor/Scent | Low Odor |
Environmental Condition
| Temperature Rating | 20 to 50 C |
Supporting Information
| Use With | Spray-in-air systems, ultrasonic dip tanks, SMT printers |
| Solubility In Water | Soluble |
