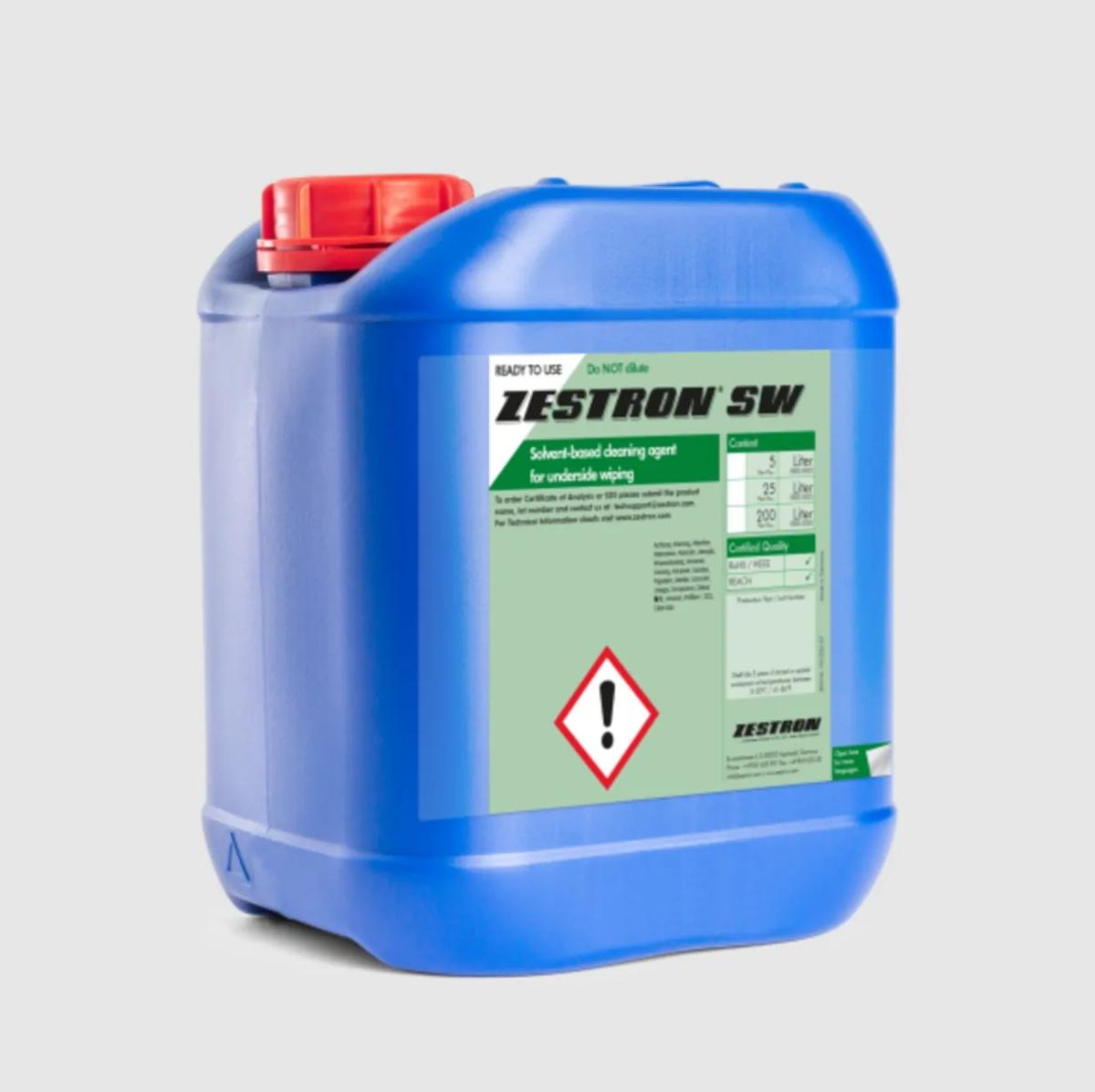

Zestron 0800-0025 SW Stencil Cleaner for SMT Printers, 25 L
- MFR #0800-0025
- EIS #0800-0025-ZES
$490.88 / Can
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
Products You May Also Like
ZESTRON SW is a solvent-based cleaner with a high flash point, which was developed together with leading SMT printer manufacturers and specifically designed for the use in SMT printers without vacuum drying. ZESTRON SW
achieves reproducible cleaning results and dries residue- free, thus it increases the reliability of the printing process.
Features
- ZESTRON SW has a high flash point of 67 C (153 F), which significantly improves operational safety compared to traditional solvents such as Isopropanol (flash point: 12 C)
- It was developed in collaboration with leading SMT printer manufacturers, specifically for stencil underside cleaning without the need for vacuum drying
- The cleaner dries quickly and leaves no residues, ensuring consistent and reliable cleaning results that contribute to the overall stability of the printing process
- It is biodegradable and free from halogenated compounds, making it a safer and more environmentally friendly cleaning solution
- The formulation is pH-neutral, providing excellent material compatibility and safe use with various stencil and printer materials
Applications
- Stencil underside wiping in SMT printers (with or without vacuum drying)
General Information
| Item Name | Stencil Cleaner |
| Trade Name | Zestron |
| Series | SW |
General Features
| Standards | RoHS 1, 2 & 3, WEEE, IPC-7526 |
| Net Weight | 25 L |
| Shelf Life | Minimum 5 years |
| Storage Temperature | 5 to 30 C |
Design & Construction
| Base Type | Solvent-based |
| Form | Liquid |
Performance Details
| Removes | Unsoldered solder pastes, conductive adhesives, flux residues from stencil undersides |
Chemical Properties
| pH Rating | Neutral |
| Specific Gravity | 0.89 g/mL at 20 C |
Physical Properties
| Container Size | 25 L |
| Container Type | Drum |
Supporting Information
| Use With | SMT printers, dry fleece wiping systems |
Documents
No Documents Found
